Crestron CLW-SW1/4RF, -SWS1/4RF, -SLVS1RF
Operations Guide - DOC. 6397

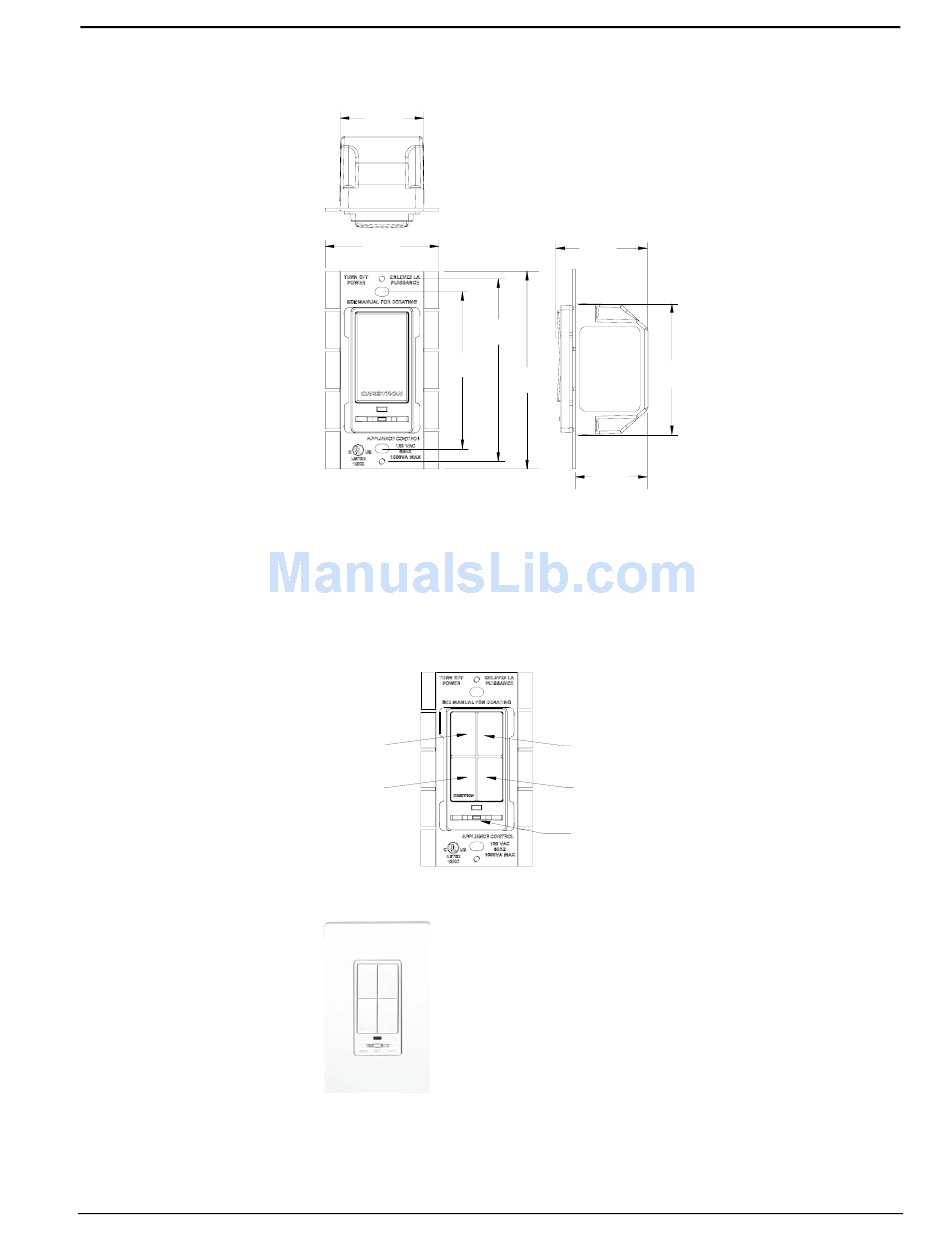

Physical View of CLW-SW1RF/-SWS1RF (Clockwise from Top; Top, Side, and Front)
1.75 in
(4.45 cm)
2.38 in
(6.03 cm)
3.81 in
(9.68 cm)
3.28 in
(8.32 cm)
(10.48 cm)
RUN SET OFF
The -SW4RF and -SWS4RF have a light emitting diode (LED) with adjustable
brightness (via Crestron programming software), four pushbuttons, and a three-
position mode selection switch as shown in the following diagrams. Each of the
buttons may be pushed to perform certain functions. The function of each pushbutton
is determined by the position of the mode selection switch. For more information,
refer to "Operation" on page 9.
Parts of CLW-SW4RF, -SWS4RF
Button 1
Button 3
RUN
SET OFF
CLW-SW4RF/-SWS4RF Shown in White
infiNET Switches: Crestron CLW-SW1/4RF, -SWS1/4RF, -SLVS1RF • 5
1.88 in
(4.77 cm)
2.70 in
4.13 in
(6.86 cm)
1.50 in
(3.81 cm)
Button 2
Button 4
Mode Selection Switch
infiNET™ Switches
