infiNET™ SWITCHES

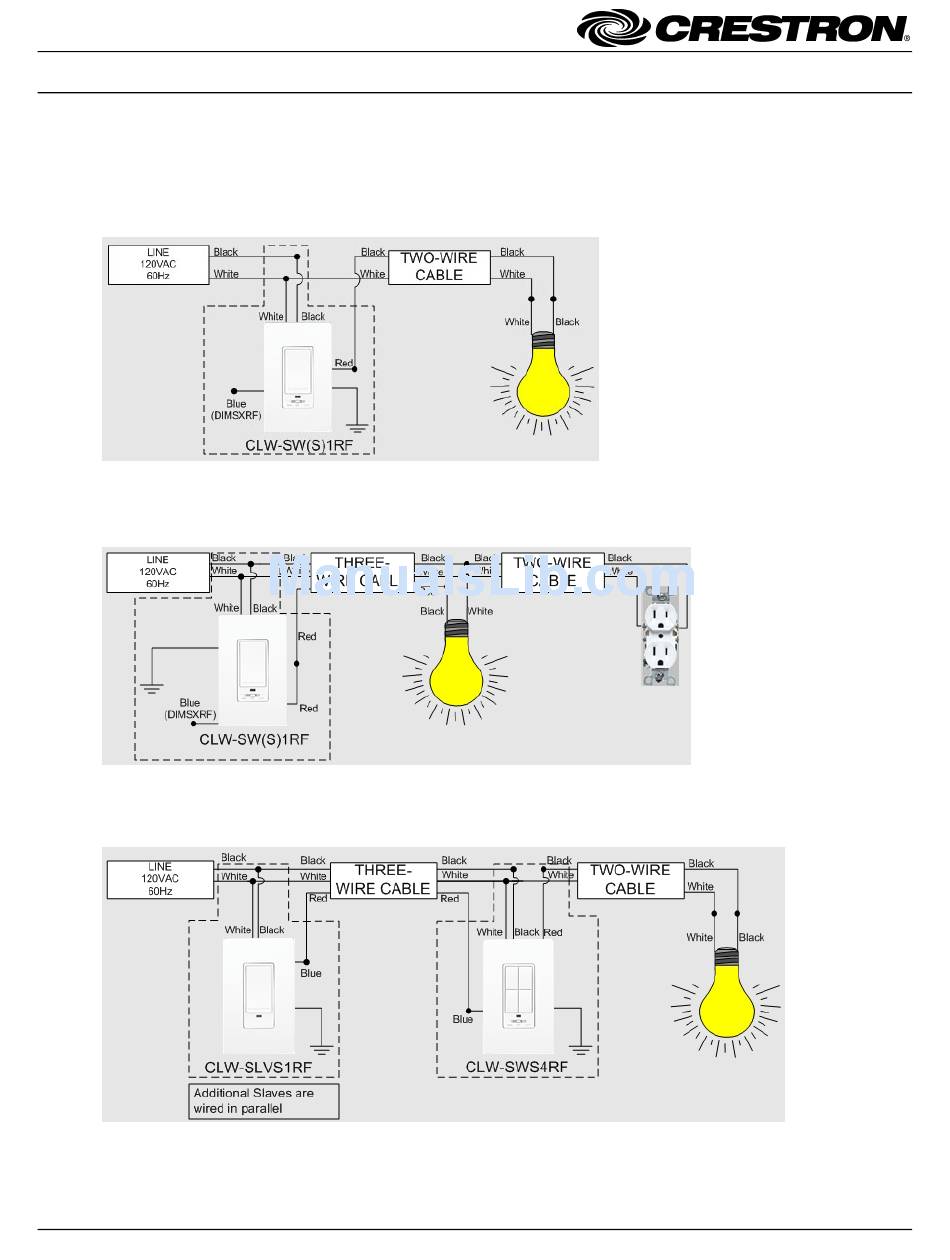

Appendix: Wiring Diagrams
Following are wiring diagrams for circuits that may be found when installing infiNET switches:
Stand-Alone Installations
Figure 1: Wiring a CLW-SW(S)XRF (CLW-SWS1RF shown)
To continue a circuit past a switched light fixture to one or more duplex receptacles, connect the switch as shown in the
following diagram.
Figure 2: Adding a Duplex Receptacle Past a Switched Light Fixture
Master-Slave Installation
Figure 3: Wiring a CLW-SWSXRF (CLW-SWS4RF shown) with a CLW-SLVS1RF
8 • infiNET™ Wall Box Switch : CLW-SW1/4RF, SWS1/4RF, & SLVS1RF
Installation Guide - DOC. 6293A
