infiNET™ SWITCHES
CLW-SW1RF/-SW4RF, CLW-SWS1RF/-SWS4RF, &
CLS-SLVS1RF Specifications (continued)

SPECIFICATION

Load Ratings (continued)
Electronic Low Voltage
Ceiling Fan
Minimum Load
Operating Temperature
and Humidity
Dimensions and Weight
1. The range is dependent on its placement and the building in which
it is used. The construction of the building, obstructions, and RF
interference from other devices are factors determining the
effective range of the unit.
2. The latest software versions can be obtained from the Crestron
website. Refer to the NOTE following these footnotes.
3. Crestron 2-Series control systems include the AV2 and PRO2.
Consult the latest Crestron Product Catalog for a complete list of
2-Series control systems.
4. Refer to Derating Charts for Multigang Installations on page 4.
5. VA ratings are for input power to the transformer. If you do not
know the input power requirement of the transformer, use the
bulb's wattage rating to determine proper rating.
NOTE: Crestron software and any files on the website
are for Authorized Crestron dealers and Crestron
Authorized Independent Programmers (CAIP) only. New
users may be required to register to obtain access to
certain areas of the site (including the FTP site).

Physical Description

The -SW1RF and -SWS1RF contain one rocker button, a
light emitting diode (LED) with software-adjustable
brightness, and a three-position slider-switch, shown in
the next column.
The -SW4RF and -SWS4RF contain four pushbuttons, a
light emitting diode (LED) with software-adjustable
brightness, and a three-position slider-switch, shown in
the next column.
The -SLVS1RF is similar to the -SW1RF and -SWS1RF
but does not have the slider-switch. The brightness of the
LED on the -SLVS1RF is not programmable.
2 • infiNET™ Wall Box Switch : CLW-SW1/4RF, SWS1/4RF, & SLVS1RF
DETAILS
-SW1RF/-SW4RF: 1000W
-SWS1RF/-SWS4RF: 1000W
-SLVS1RF: N/A
-SW1RF/-SW4RF: 3A
-SWS1RF/-SWS4RF: 3A
-SLVS1RF: N/A
40W / 0.5A
32°F to 104°F (0°C to 40°C )
10 to 90% Relative Humidity
(Non-Condensing)
-SW1RF/-SW4RF and
-SWS1RF/-SWS4RF:
Height: 4.13 in (10.48 cm)
Width: 2.38 in (6.03 cm)
Depth: 1.88 in (4.77 cm)
Weight: 4.4 oz (0.61 kg)
-SLVS1RF:
Height: 4.13 in (10.48 cm)
Width: 1.75 in (4.45 cm)
Depth: 1.88 in (4.77 cm)
Weight: 3.6 oz (0.50 kg)
Line voltage connections are made at the rear of the
switch.

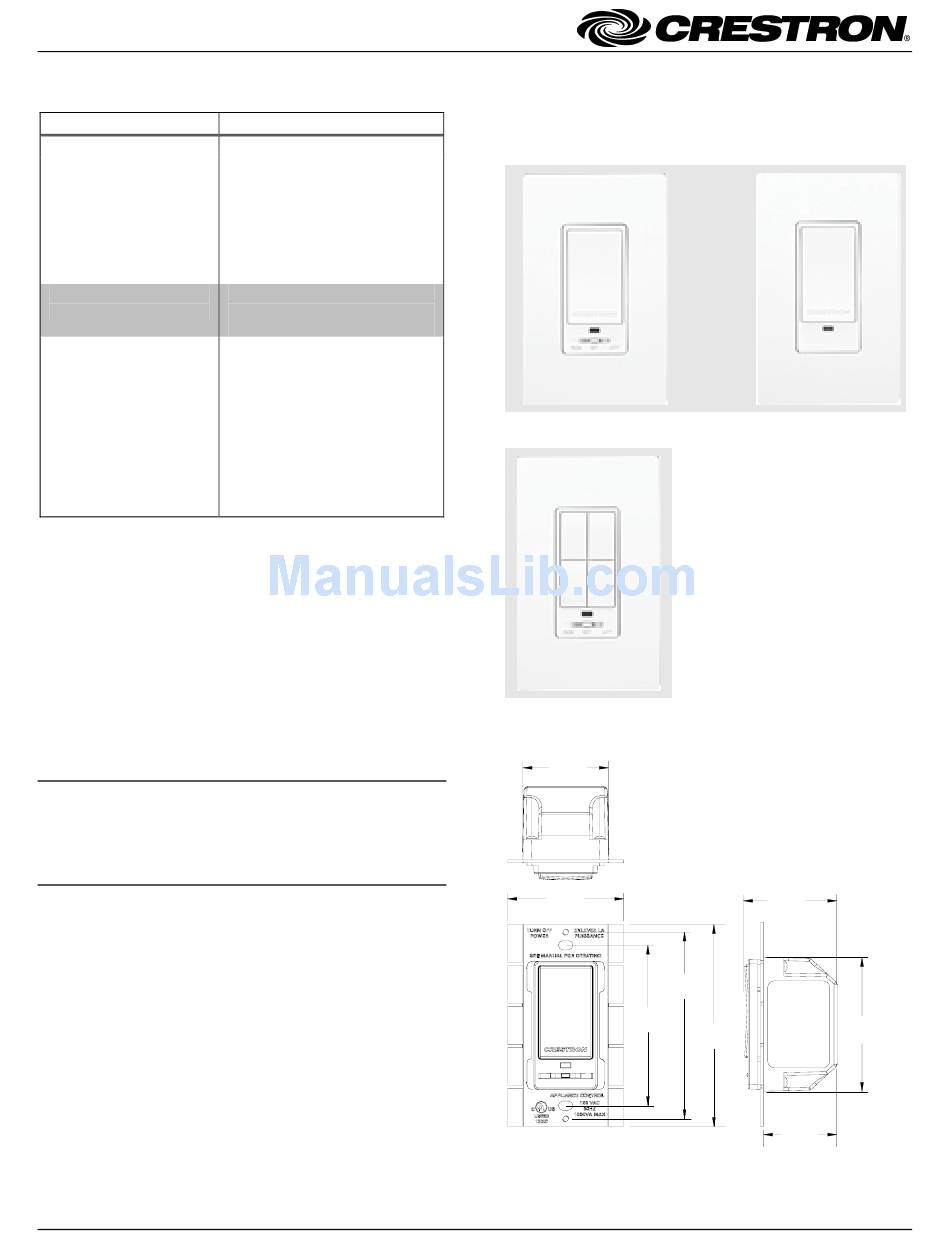

CLW-SW1RF/SWS1RF (L) and CLW-SLVS1RF (R) shown in
white
CLW-SW4RF/-SWS4RF shown in white
Physical view of CLW-SW1RF/SWS1RF (clockwise from top;
Top, Side, and Front)
1.75 in
(4.45 cm)
2.38 in
(6.03 cm)
3.81 in
(9.68 cm)
3.28 in
(8.32 cm)
RUN SET OFF
Installation Guide - DOC. 6293A
1.88 in
(4.77 cm)
2.70 in
4.13 in
(6.86 cm)
(10.48 cm)
1.50 in
(3.81 cm)
