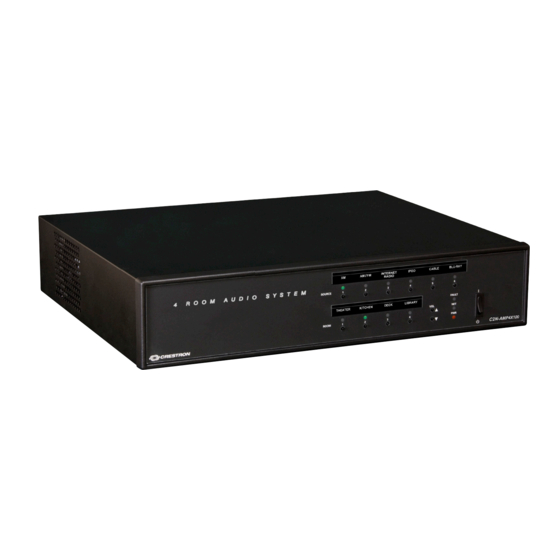

C2N(I)-AMP-4X100
4 Room Audio Processor Amplifier

Hardware Hookup

1

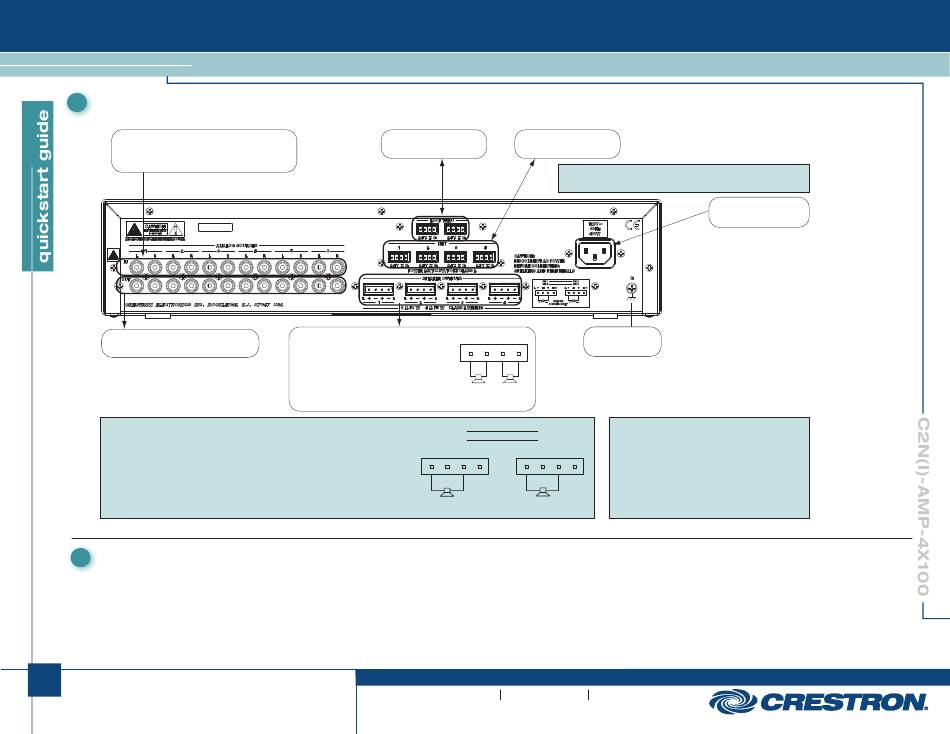

Make the necessary connections as called out in the diagram below. Connect power last.
ANALOG SOURCES (IN)
From Unbalanced Stereo Line Level Audio
Outputs from Source Devices
ANALOG SOURCES (OUT)
To Additional Amplifiers
NOTE: For double the power (into 8 ohm speakers only), SPEAKER
OUTPUTS 1 and 2 or SPEAKER OUTPUTS 3 and 4 can be bridged. For
example, the left speaker's + and - terminals are connected to the two +
terminals of output #1 and the right speaker's + and - terminals are connected
to the two + terminals of output #2. Refer to the diagram to the right.
To adjust volume when bridged, select ROOM 1 for SPEAKER OUTPUTS 1
and 2 or select ROOM 2 for SPEAKER OUTPUTS 3 and 4.

Attach the Labels

2
Use the included labels and inserts to prepare your C2N(I)-AMP-4X100:
1.
Locate the SOURCE and ROOM label inserts included with your unit (SOURCE insert has space for six labels, ROOM insert has room for four labels).
2.
Apply the peel-and-stick labels in the appropriate positions on the inserts, being careful to match label positions to what is configured in the programming software. For neatest appearance, when applying a label,
cover the white guidelines on the insert. First and last labels will cover one line each; labels in between will cover lines on their left and right sides.
1
For Regulatory Compliance information, refer to the latest version
of Doc. 7289.
QUICKSTART DOC. 7288A (2032394, Sheet 1 of 2) 11.11
LOOP THRU
To Cresnet
Devices
®
SPEAKER OUTPUTS
L +
To Loudspeakers
+
LEFT RIGHT
NON- BRIDGE
RM 1
RM 3
L +
-
+
-
+
8 OHMS ONLY
www.crestron.com
Specifications subject to
change without notice.
NET
To Cresnet
Devices
®
NOTE: The 24 Volt lines on the NET ports of the amplifier are
limited to 300 mA.
G
-
- R
+
Tie to ground
-
+
-
NOTE: The C2NI-AMP-4X100 (International
RM 2
version) requires a power cord that is
RM 4
harmonized to the country's national and local
- R
L +
-
- R
+
electrical codes. Each inner wire in the cord
should be at least 18 AWG (0.75 mm
for at least 300V. The temperature rating of the
cord should be at least 60º C. The cord length
BRIDGE
-
+
should be 1.5 - 2 meters.
888.273.7876
201.767.3400
PWR
From AC power line
2
) and rated
