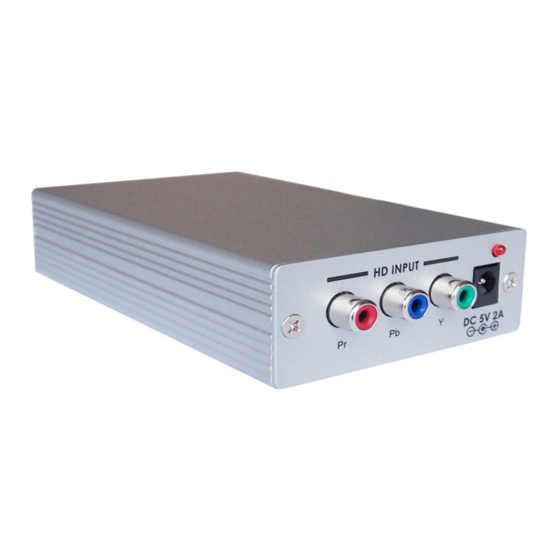

- Page 1 YPbPr to DVI-I Format Converter - ID# 327 Operation Manual...
- Page 2 Introduction YPbPr signal to digital DVI signal. It allows you to connect the YPbPr output from Video equipments to the DVI input of the monitors or projectors. Its high bandwidth capability supports a wide range of PC and HDTV resolutions. Features It enables you to connect DVD or set top box with YPbPr output to the DVI input ●...
- Page 3 Combined Analog and Digital Connector Pin Assignments Pin Signal Assignment Pin Signal Assignment Pin Signal Assignment T.M.D.S Data2- T.M.D.S Data 1- 17 T.M.D.S Data0- T.M.D.S. Data2+ 10 T.M.D.S. Datal+ 18 T.M.D.S. Data0+ T.M.D.S. Data2/4 T.M.D.S. Data1/3 T.M.D.S. Data0/5 Shield Shield Shield T.M.D.S.
- Page 4 Specifications Input: Analog YPbPr on 3 RCA connectors Input signal: : 1 Vp-p 75 ohm, Pb/Pr: 0.7 Vp-p, 75 ohm Output: DVI-I connector Output signal: Digital RGB or YPbPr data bitstream Compliant with DVI Rev 1.0 Operation frequency: up to 165MHz Input/ Output resolution: PC : VGA@60 s VGA@72 •...
