Avid Technology Digidesign USD User Manual page 12

Pro Tools MIX/MIXplus or
Pro Tools 24 Systems
(Macintosh and Windows)
To connect the USD to a Macintosh or
Windows Pro Tools MIX/MIXplus or
Pro Tools 24 system:
Make sure the power is switched off for
1
both the USD and the computer.
Connect one end of the cable to the USD
2
port labelled Mac Serial (whether using a
Macintosh or a Windows computer).
Connect the other end of the cable to the
3
DigiSerial Port on your primary Pro Tools
MIX or d24 card (the Core card).
IN
L
T
BI-PHASE / TACH / GPI
C
OUT
I
N
PC SERIAL VIDEO REF MAC SERIAL VIDEO MTC OUT
Mac Serial
to
DigiSerial Port

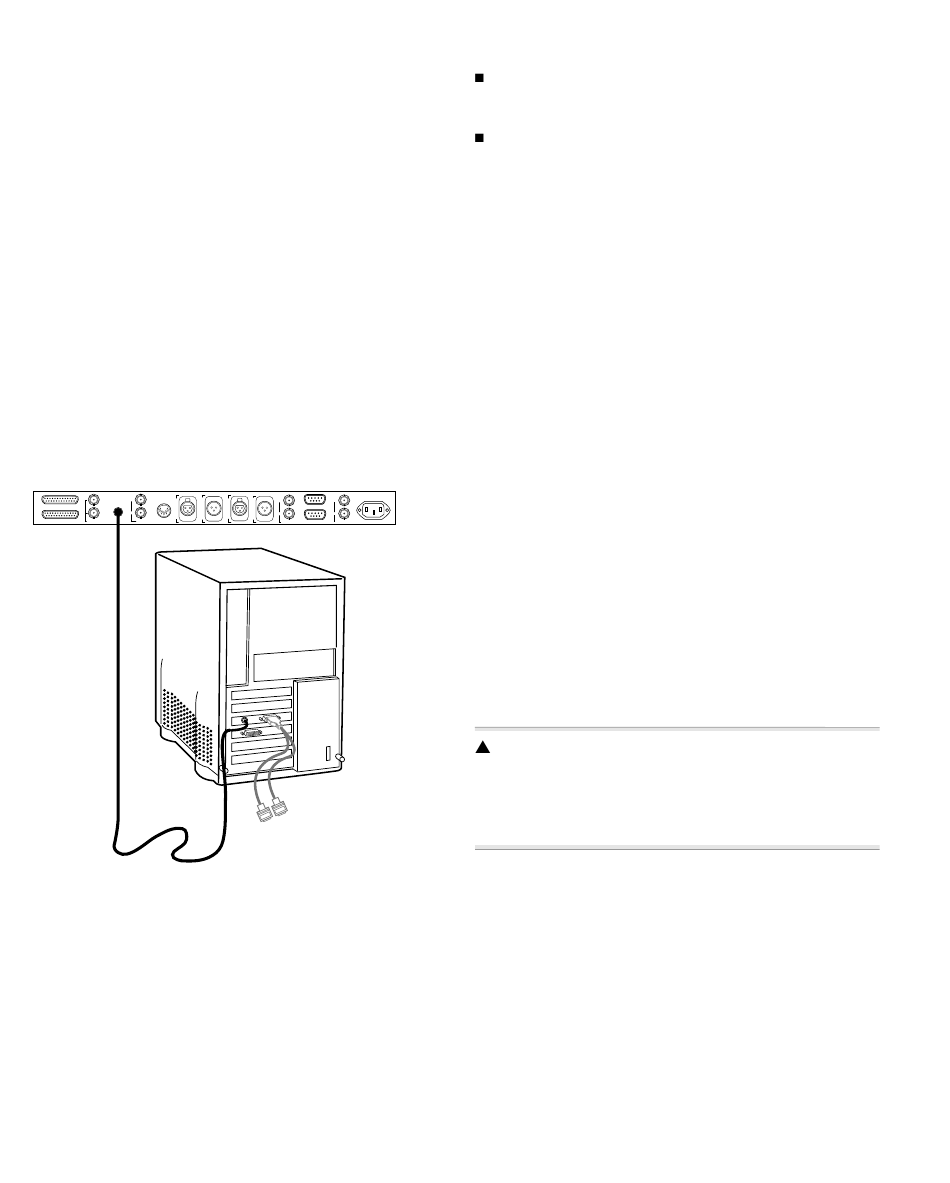

Connecting USD to a DigiSerial Port
Restore power to the USD, and restart
4
your computer.
8 Universal Slave Driver
85-264VAC, 47-63HZ, 115 W
L A
IN IN
A
T E
E
C S
9-PIN IN / ACC
S
O O
I OUT OUT
U U
N
T T
WORD CLOCK 9-PIN OUT SUPER CLOCK (256X)
USD
CPU
(Pro Tools
Audio Interface
cables)
USB Blue and White G3/G4 Example
Connect the USD Mac Serial port to the
DigiSerial port.
Connect MachineControl™ (optional)
to a GeeThree, Griffin, or Keyspan serial
port adaptor (see "USD Serial Port Require-
ments" on page 2).
If using MIDI, connect a MIDI interface or
HUI to a GeeThree or Griffin serial port
adaptor (see "USD Serial Port Require-
ments" on page 2).
DigiSerial Port General Info
Pro Tools MIX and d24 cards feature a
DigiSerial Port. Though this port is identi-
cal in appearance to the serial ports on your
CPU, it is designed to only be used for:
• the USD proprietary serial connection.
– or –
• a serial-to-9-pin cable in combination
with the MachineControl™ option for
Pro Tools. This should only be connected
to the DigiSerial Port when there is no
USD present in the system.
The DigiSerial Port should not be used for
connecting MIDI Interfaces or any other serial
device. Attempting to do so will adversely af-
fect Pro Tools performance.
