Milesight UG63 User Manual

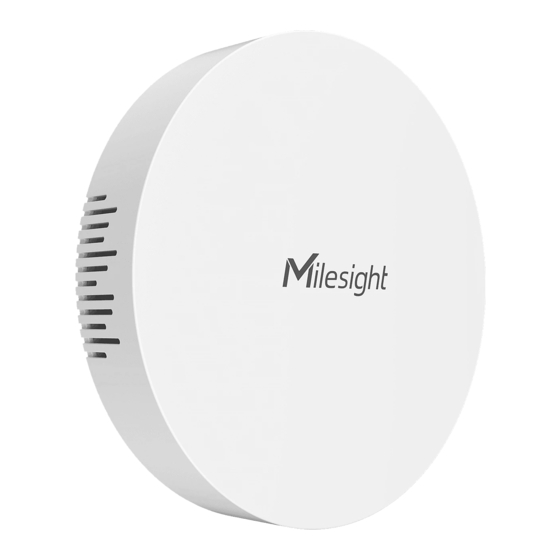

Mini lorawan gateway
Hide thumbs Also See for UG63:
Table of Contents

Advertisement

Quick Links

Download this manual
Mini LoRaWAN
Gateway
®
UG63
User Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UG63 and is the answer not in the manual?

Questions and answers

Related Manuals for Milesight UG63

Summary of Contents for Milesight UG63

  • Page 1 Mini LoRaWAN Gateway ® UG63 User Guide...
  • Page 2 Do not connect or power the equipment using cables that have been damaged.  Declaration of Conformity UG63 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS. Copyright © 2011-2024 Milesight. All rights reserved.

  • Page 3: Table Of Contents

    Contents 1. Product Introduction ......................... 4 1.1 Overview ...........................4 1.2 Key Features ..........................4 2. Hardware Introduction ........................4 2.1 Packing List ..........................4 2.2 Hardware Overview ......................... 5 2.3 LED Indicator and Reset Button ....................5 2.4 Dimensions (mm) ........................6 3.

  • Page 4: Product Introduction

    ®  UG56/UG65/UG67 controller gateway High-cost performance, suitable for small applications  Milesight DeviceHub 2.0 & Development Platform provide easy and centralized  management of remote devices Compatible with mainstream network servers like The Things Industries, ChirpStack, AWS  IoT Core for LoRaWAN ®...

  • Page 5: Hardware Overview

    1 × PoE Splitter 1 × Warranty Card (Optional) If any of the above items is missing or damaged, please contact your sales representative. 2.2 Hardware Overview 2.3 LED Indicator and Reset Button LED Indicators Indication Status Description The power is off Power &...

  • Page 6: Dimensions (Mm)

    SIM card, press the SIM card and it will pop up automatically. 3.2 Power Supply UG63 can be powered by USB (5V) or a DC power connector (5-12V) by default. When installing the power cables, pass them with Ethernet cables through the groove.

  • Page 7: Gateway Installation

    Additionally, it can also be powered by an 802.3af standard PoE source via a PoE splitter. 3.3 Gateway Installation UG63 supports multiple installation methods like desktop, wall mounting, ceiling mounting, etc. Before you start, make sure that all cables have been installed and configurations are completed.
  • Page 8 2. Align the mounting plate horizontally to the desired position on the wall or ceiling to mark two mounting holes, drill two holes as these marks, and insert wall plugs into the holes respectively. 3. Fix the mounting plate to the wall plugs with screws. 4.

  • Page 9: Access The Gateway

    4. Access the Gateway UG63 provides user-friendly web GUI for configuration and users can get access to it via Wi-Fi. The default settings are listed below: Wi-Fi SSID: Gateway_XXXXXX (can be found on the label) Wi-Fi IP Address: 192.168.1.1 Browser: Chrome (Recommended)
  • Page 10 Note: UG63 also supports wired access if you select the connection type of Ethernet port as static IP and assign an IP address to Ethernet port. Step 1: Go to Network > WAN page to select connection type as Static IP and configure an IP address for the Ethernet WAN port.

  • Page 11: Operation Guide

    Step 4: Open the browser and type the IP address of Ethernet port to access the web GUI. 5. Operation Guide 5.1 Status Overview Parameters Description Model The whole model name of the gateway. The serial number of the gateway. The unique identifier of the gateway and it’s non-editable.
  • Page 12 and will be not affected by this region value. For example, the gateway with region AU915 can also change the frequency plan to US915, AS923-1, etc. Local Time The current local time of the system. Uptime The information on how long the gateway has been running. CPU Temperature The temperature of CPU.

  • Page 13: Packet Forward

    The IPv4 address of the cellular network. IPv4 Gateway The IPv4 gateway of the cellular network. IPv4 DNS The IPv4 DNS sever of the cellular network. 5.2 Packet Forward UG63 supports to work as a packet forwarder to set up communication between LoRaWAN ®...

  • Page 14: General

    LNS and CUPS settings. Remote Embedded NS: connect to embedded network server of Milesight UG65/UG67/UG56 gateways. DeviceHub LNS: connect to Milesight DeviceHub LNS. This needs to select and enable DeviceHub 2.0 option on Service page and type the platform address.

  • Page 15: Radios

    Milesight Development Platform LNS: connect to Milesight Development Platform LNS. This needs to select and enable Milesight Development Platform option on Service page and add the gateway to your platform account. Semtech Server Address The LoRaWAN network server IP address or domain.
  • Page 16 Radios Parameters Description Radio Channel Setting...

  • Page 17: Packet Filters

    Set the frequency of this channel. Bandwidth/kHz Set the bandwidth of this channel. Data Rate/Bit Set the data rate. 5.2.3 Packet Filters UG63 supports to filter uplink packets via different conditions to reduce network congestion, save network traffic and ensure the safe operations.

  • Page 18: Advanced

    Packet Filters Parameters Description Filters by NetID Forward/Not forward the uplink packets that meet the NetID. Filters by JoinEUI Forward/Not forward the join request packets that meet the JoinEUI range. Filters by DevEUI Forward/Not forward the join request packets that meet the DevEUI range. Select the filter mode as black list or white list.

  • Page 19: Traffic

    GUI. To customize configuration file with correct format, click “Example” to go to reference page. 5.2.5 Traffic UG63 supports to display latest 30 pieces of traffic received from end devices or network server. Traffic Parameters Description Fresh: click to fresh this page to update latest data automatically.

  • Page 20: Network

    5.3 Network 5.3.1 Link Backup UG63 supports to set the priorities of both network links and the ping detection settings to check if the link is available. Link Backup Parameters Description...

  • Page 21: Wan

    Specify the number of seconds to wait for switching to the main link, 0 Recovery interval/s means disable the function. Emergency Reboot Enable to reboot the device if no link is available. 5.3.2 WAN UG63 supports to connect Ethernet port to a router to get network access.

  • Page 22: Cellular (Cellular Version Only)

    Set the Netmask for Ethernet port. Gateway Set the gateway for Ethernet port's IPv4 address. DHCP Use Peer DNS Obtain DNS from DHCP server. 5.3.3 Cellular (Cellular Version Only) UG63 supports to insert a SIM card to get cellular network connections.

  • Page 23: Wlan

    AT Command Send AT Command to get cellular information or configure advanced settings. 5.3.4 WLAN UG63 supports wlan feature to work as AP mode to configure device and it can not connect to other access points. Note: one UG63 device only supports 2 devices’ WLAN connection to log in this device at the same time.

  • Page 24: Service

    5.4 Service Parameters Description Enable to receive the configurations from Milesight Development Platform once Auto after the device is connected to Internet. This will work even management Provision platform mode is disabled. Management Platform Enable Enable the device to be managed by Milesight management platforms.

  • Page 25: Time

    Parameters Description Username Enter a new username. Only capital, lowercase, digits, "_", and "-" are allowed. Enter the old password. Password Enter a new password. Password Confirm New Enter the new password again. Password 5.5.2 Time Parameters Description Show the current system time. Current Time Click the drop-down list to select the time zone you are in.

  • Page 26: Maintenance

    Parameters Description Enable or disable the local access of HTTP. Local access Set the service port of HTTP. Access port 5.6 Maintenance 5.6.1 Log Parameters Description The list of severities follows the syslog protocol. Log Severity Download log file. Log File Core dump file contains a snapshot of a program’s memory at a specific point in time when the program encounters a critical error or crashes, Core dump...

  • Page 27: Reboot

    Backup/Upgrade Description Parameters Backup Backup Export the current configuration file to the PC. Restore Reset device to factory default settings. The device will restart after reset Reset process is done. Click "Import" button to select configuration file, and then click "Restore" button Config File to upload the configuration file to the device.

  • Page 28: Appendix

    Appendix Default Frequency Supported Freq Channel/MHz CN470 471.9, 472.1, 472.3, 472.5, 472.7,472.9, 473.1, 473.3 (8~15) EU868 868.1, 868.3, 868.5, 867.1, 867.3, 867.5, 867.7, 867.9 IN865 865.0625, 865.4025, 865.6025, 865.985, 866.185, 866.385, 866.585, 866.785 RU864 868.9, 869.1, 869.3, 867.3, 867.5, 867.7, 867.9, 868.1 AU915 916.8, 917, 917.2, 917.4, 917.6, 917.8, 918, 918.2 (8~15)
