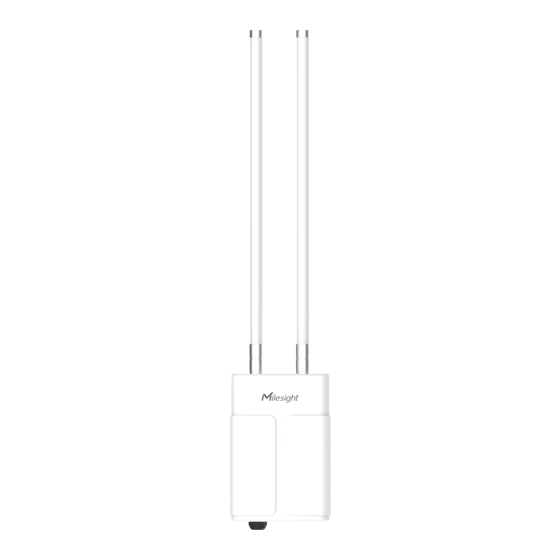

UG67 Gateway
Quick Start Guide
Milesight IoT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UG67 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Milesight UG67

Summary of Contents for Milesight UG67

  • Page 1 UG67 Gateway Quick Start Guide Milesight IoT...
  • Page 2 GUI, and how to configure all the settings. The related documents are available on Milesight website: https://www.milesight-iot.com Declaration of Conformity UG67 is in conformity with the essential requirements and other relevant provisions of the CE, FCC, and RoHS. For assistance, please contact Milesight technical support: Email: iot.support@milesight.com...

  • Page 3: Table Of Contents

    5. Network Connection........................... 14 5.1 Configure the Ethernet Connection....................14 5.2 Configure the Wi-Fi Connection...................... 15 5.3 Configure the Cellular Connection....................16 6. Packet Forwarder Configuration.......................17 7. Network Server Configuration........................19 7.1 Connect UG67 to Milesight IoT Cloud................... 19 7.2 Connect UG67 to MQTT/HTTP Server...................21...

  • Page 4: Packing List

    1. Packing List Before you begin to install the UG67 LoRaWAN ® Gateway, please check the package contents to verify that you have received the items below. 1 × UG67 1 × PoE Injector 1 × Mounting Bracket Wall Mounting Kits 1 ×...

  • Page 5: Hardware Introduction

    2. Hardware Introduction 2.1 Overview LoRa Antenna Connector Vent Plug SIM Slot LED Area & Type-C Port & Reset Button SYS: System Indicator LoRa: LoRa Indicator LTE: Cellular Indicator DC Power Connector (Solar Connector) Ethernet Port (PoE) Mounting Bracket 2.2 Dimensions (mm) 2.3 LED Indicators Indication Status...

  • Page 6: Reset Button

    Blinking slowly: SIM card has been registered and is ready for dial-up Blinking rapidly: SIM card has been registered and Green Light is dialing up now Static: SIM card has been registered and dialed up successfully 2.4 Reset Button Description Function SYS LED Action...

  • Page 7: Hardware Installation

    B. Tighten the SIM dust cover with wrench to prevent water into the device. Note: UG67 does not support hot plugging (also called hot swapping). please turn off the power before you insert or take off cards. 3.2 Antenna Installation For external antenna version, rotate the antenna into the antenna connector accordingly.

  • Page 8: Ethernet Cable & Power Cable Installation

    For DC or solar power supply, remove the protective cap of power connector and rotate the DC power cable into the power connector. 3.4 Power Supply UG67 can be powered by 802.3af standard PoE injector or other PoE devices. Please follow the picture to provide power supply via PoE injector: Note: When being connected, one end of the Ethernet cable to UG6x should be installed first, otherwise, PoE devices or gateway may be damaged.

  • Page 9: Gateway Installation

    3.5 Gateway Installation UG67 can be mounted to a wall or a pole. Before you start, make sure that your SIM card has been inserted, your antennas have been attached and all cables have been installed. Note: Do not connect device to power supply or other devices when installing.
  • Page 10 3. Use a screwdriver to tighten the locking mechanism by turning it clockwise.

  • Page 11: Login The Web Gui

    4. Login the Web GUI UG67 provides web-based configuration interface for management. If this is the first time you configure the gateway, please use the default settings below: ETH IP Address: 192.168.23.150 Wi-Fi IP Address: 192.168.1.1 Wi-Fi AP: Gateway_****** Username: admin Password: password 4.1 Wireless Access...

  • Page 12: Wired Access

    E. You can view system information and perform configuration of the gateway. 4.2 Wired Access Connect PC to UG67 ETH port through PoE injector. The following steps are based on Windows 10 operating system for your reference. A. Go to “Control Panel” → “Network and Internet” → “Network and Sharing Center”, then click “Ethernet”...
  • Page 13 C. Open a Web browser on your PC (Chrome is recommended) and type in the IP address 192.168.23.1 50 to access the web GUI. D. Enter the username and password, click “Login”. If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes.

  • Page 14: Network Connection

    5. Network Connection This section explains how to connect the gateway to network via WAN connection, Wi-Fi or cellular. 5.1 Configure the Ethernet Connection A. Go to “Network”→ “Interface” → “Port” page to select the connection type and configure Ethernet port information.

  • Page 15: Configure The Wi-Fi Connection

    5.2 Configure the Wi-Fi Connection A. Go to “Network” → “Interface” → “WLAN” and select “Client” mode. B. Click “Scan” to search for Wi-Fi access point. Select the available one and click “Join Network”. C. Type the key of Wi-Fi. D.

  • Page 16: Configure The Cellular Connection

    5.3 Configure the Cellular Connection A. Go to “Network” → “Interface” → “Cellular” → “Cellular Setting” page to enable cellular settings. B. Choose relevant network type and fill in SIM card information like APN or PIN code. C. Click “Save” and “Apply” for changes to take effect. D.

  • Page 17: Packet Forwarder Configuration

    6. Packet Forwarder Configuration UG67 has installed multiple packet forwarders including Semtech, Chirpstack-Generic MQTT broker, etc. This section explains how to connect the gateway to network servers. Make sure the gateway connects to the network as shown in Section A. Go to “Packet Forwarder” → “General” page and click to add a network server.
  • Page 18 D. Add the gateway on network server page. Take TTN for example, type and save the gateway EUI and other information when you connect it via Semtech packet forwarder. After you add the gateway, TTN will show connection status. E. Go to “Traffic” page to view the data communication of UG67.

  • Page 19: Network Server Configuration

    7. Network Server Configuration UG67 can work as network server and transmit data to Milesight IoT Cloud or other platform via MQTT/HTTP/HTTPS. Make sure the gateway connects to the network as shown in Section 7.1 Connect UG67 to Milesight IoT Cloud A.
  • Page 20 D. Log in the Milesight IoT Cloud. Then go to “My Devices” page and click “+New Devices” to add gateway to Milesight IoT Cloud via SN. Gateway will be added under “Gateways” menu. The gateway is online on Milesight IoT Cloud.

  • Page 21: Connect Ug67 To Mqtt/Http Server

    7.2 Connect UG67 to MQTT/HTTP Server A. Go to “Packet Forwarder” → “General” page to enable the “Milesight” type server. B. Go to “Packet Forwarder” → “Radio” page to select the antenna type, center frequency and channels. The channels of the gateway and nodes need to be the same.
  • Page 22 D. Go to “Network Server”→”Application” to add a new application. After saving the application, you can select HTTP, HTTPS or MQTT protocol and fill in correspond server information to send data to another server. E. Go to “Profiles” page to add a new profile for the device.
  • Page 23 F. Go to “Device” page and click “Add” to add LoRaWAN ® node devices. You can also click “Bulk Import” if you want to add many nodes all at once. Click “Template Download” to download template file and add device information to this file. Application and device profile should be the same as you created on web page.
  • Page 24 Import this file to add bulks of devices. F. Go to “Packets” page to check the packets from LoRaWAN ® node devices. The type starts from “Up” means uplinks and “Dn” means downlinks. Click “Details” to check the properties and payload contents of packets. [END]...
