- Page 1 UR32L Router Quick Guide Xiamen Milesight IoT Co., Ltd.
-
Page 2: Related Documents
Thank you for choosing Milesight UR32L industrial cellular router. This guide describes how to install the UR32L and how to log in the Web GUI to configure the device. Once you complete the installation, refer to the Milesight UR32L User Guide for instructions on how to perform configurations on the device. -
Page 3: Packing List
1. Packing List Before you begin to install the UR32L router, please check the package contents to verify that you have received the items below. 1 × Magnetic Cellular 1 × UR32L 1 × Ethernet Cable 1 × Power Adapter Antenna 1 ×... -
Page 4: Dimensions (Mm)

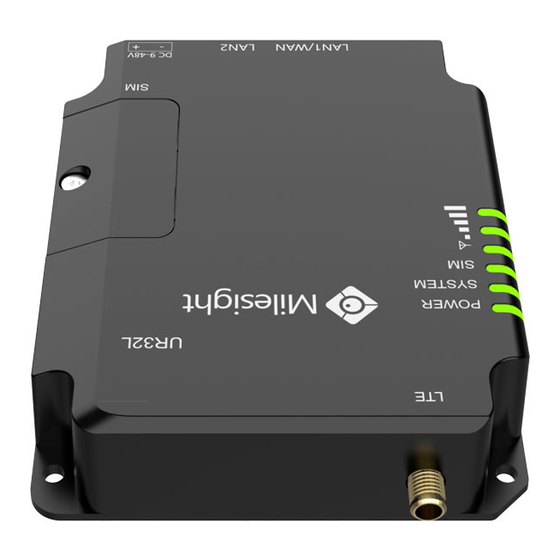

2. Hardware Introduction 2.1 Overview Cellular Antenna Connector LED Indicator Area POWER: Power Indicator SYSTEM: Status Indicator SIM : Status Indicator : Signal Strength Indicator Ethernet LAN1/WAN Port Ethernet LAN2 Port Power Connector SIM and Reset Button Holder 2.2 Dimensions (mm) 2.3 LED Indicators Indication Status... -
Page 5: Reset Button
SIM is registering or fails to register (or there are no SIM cards inserted) Blinking slowly: SIM has been registered and is ready for dial-up SIM Card Status Blinking rapidly: SIM has been registered and is dialing Green Light up now Static: SIM has been registered and dialed up successfully No signal... -
Page 6: Antenna Installation
3. Hardware Installation 3.1 SIM Card Installation A. Unscrew the cover of the SIM card then B. Put SIM card into the slot and screw it up. take it off. 3.2 Antenna Installation Rotate the antenna into the antenna connector accordingly.The external antenna should be installed vertically always on a site with a good signal. - Page 7 3.3.2 DIN Rail Mounting (Measured in mm) Use 2 pcs of M3 × 6 flat head Phillips screws to fix the mount clip to the router, and then hang the device to the DIN rail. The width of DIN rail is 3.5cm. Recommended torque for mounting is 1.0 N·m, and the maximum allowed is 1.2 N·m.
- Page 8 4. Log in the Web GUI of Router 4.1 PC Configuration Please connect PC to LAN port of UR32L router. PC can obtain an IP address, or you can configure a static IP address manually. The following steps are based on Windows 10 operating system for your reference.
-
Page 9: Log In The Router
Method 2: click “Use the ⑤ Double Click “Internet ⑥ Method 1: click “Obtain an IP following IP address” to assign Protocol Version 4 (TCP/IPv4)” address automatically”; a static IP manually within the to configure IP address and same subnet of the router. DNS server. - Page 10 If you enter the username or password incorrectly more than 5 times, the login page will be locked for 10 minutes. C. When you log in with the default username and password, you will be asked to modify the password. It’s suggested that you change the password for the sake of security.
-
Page 11: Network Configuration
Click “Save & Apply” button to make the changes take effect. C. Connect WAN port to another router or modem. D. Log in UR32L web GUI via WAN port IP address and go to “Status > Network” to check if status is “up”. - Page 12 E. Go to “Network > Interface > Link Failover” to rise the WAN priority to 1. F. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR32L router. 5.2 Cellular Connection Configuration A.
- Page 13 D. Click to configure ICMP ping detection information. E. Click “Status > Cellular” to view the status of the cellular connection. If it shows “Connected”, it means SIM has dialed up successfully. On the other hand, you can check the status of SIM indicator. If it keeps on green light statically, it means SIM has dialed up successfully.
- Page 14 F. Open your preferred browser on PC, then type any available web address into address bar and see if it is able to visit Internet via UR32L router. [END]...
- Page 15 www.milesight-iot.com...
