ICP Family User's Manual

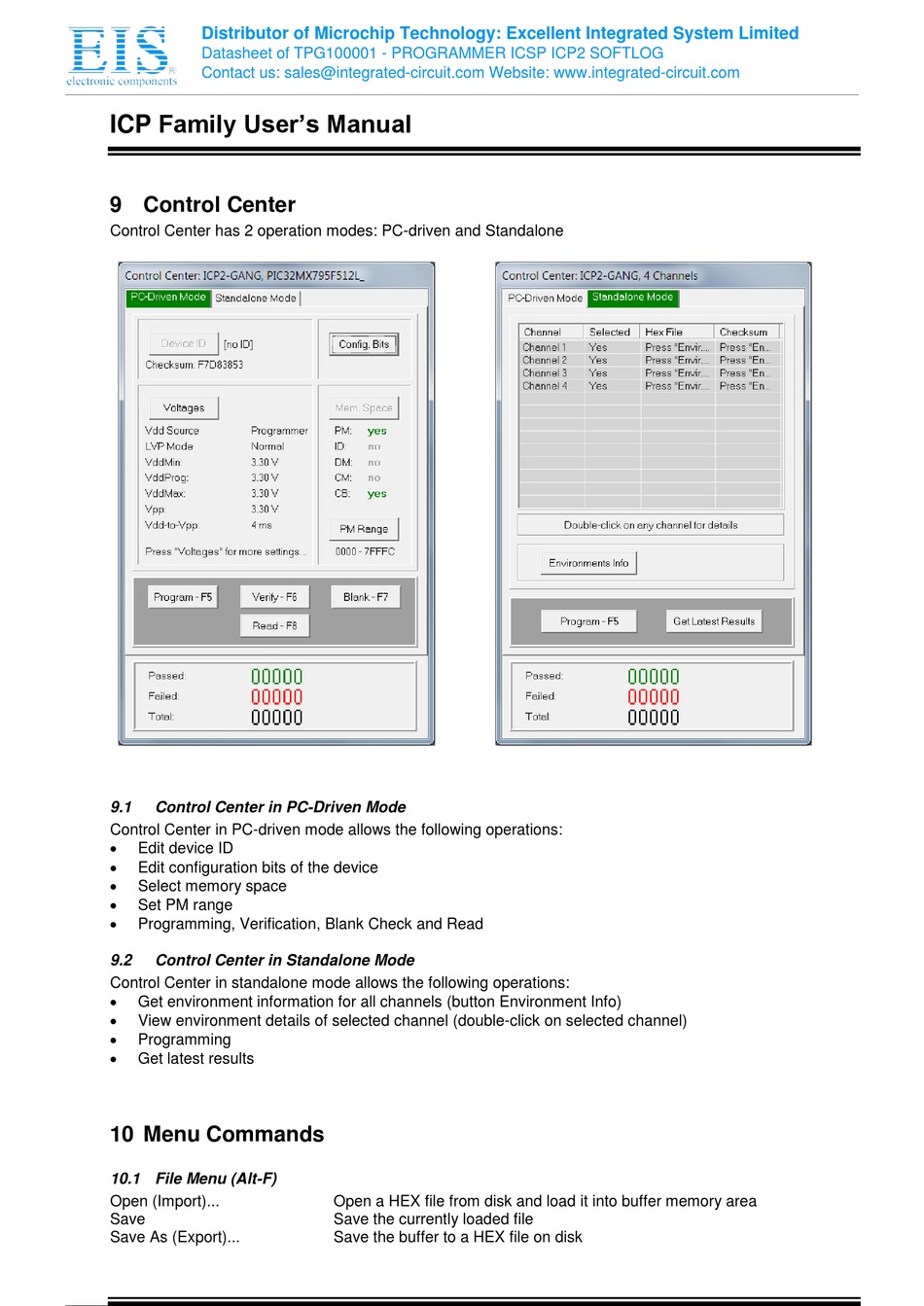

9 Control Center

Control Center has 2 operation modes: PC-driven and Standalone
9.1

Control Center in PC-Driven Mode

Control Center in PC-driven mode allows the following operations:

Edit device ID

Edit configuration bits of the device

Select memory space

Set PM range

Programming, Verification, Blank Check and Read
9.2

Control Center in Standalone Mode

Control Center in standalone mode allows the following operations:

Get environment information for all channels (button Environment Info)

View environment details of selected channel (double-click on selected channel)

Programming

Get latest results

10 Menu Commands

10.1 File Menu (Alt-F)

Open (Import)...
Save
Save As (Export)...
Open a HEX file from disk and load it into buffer memory area
Save the currently loaded file
Save the buffer to a HEX file on disk
