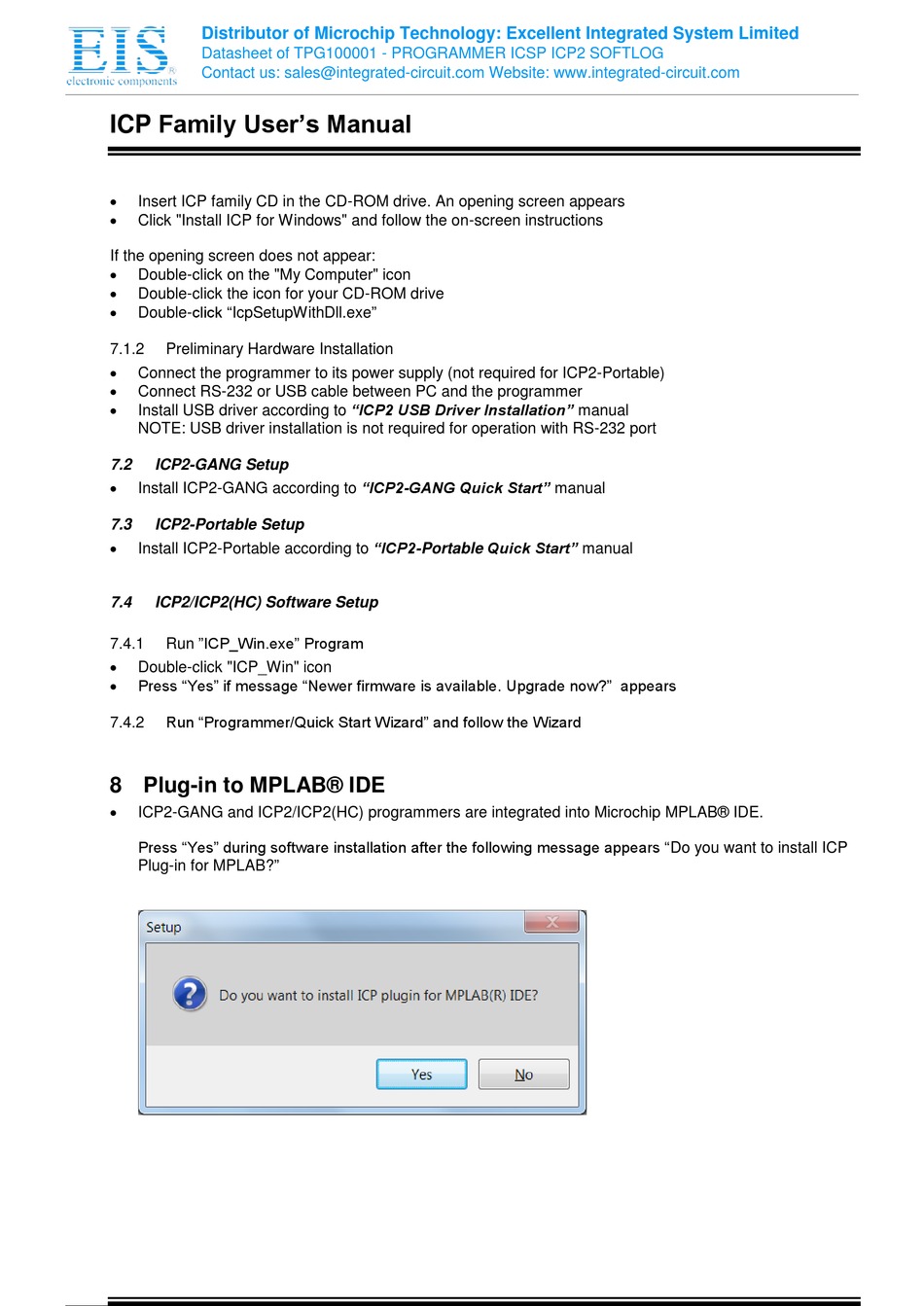

ICP Family User's Manual

Insert ICP family CD in the CD-ROM drive. An opening screen appears

Click "Install ICP for Windows" and follow the on-screen instructions
If the opening screen does not appear:

Double-click on the "My Computer" icon

Double-click the icon for your CD-ROM drive

Double-click "IcpSetupWithDll.exe"
7.1.2

Preliminary Hardware Installation


Connect the programmer to its power supply (not required for ICP2-Portable)

Connect RS-232 or USB cable between PC and the programmer

Install USB driver according to "ICP2 USB Driver Installation" manual
NOTE: USB driver installation is not required for operation with RS-232 port
7.2

ICP2-GANG Setup


Install ICP2-GANG according to "ICP2-GANG Quick Start" manual
7.3

ICP2-Portable Setup


Install ICP2-Portable according to "ICP2-Portable Quick Start" manual
7.4

ICP2/ICP2(HC) Software Setup

Run "ICP_Win.exe" Program

7.4.1

Double-click "ICP_Win" icon

Press "Yes" if message "Newer firmware is available. Upgrade now?" appears

Run "Programmer/Quick Start Wizard" and follow the Wizard

7.4.2
8 Plug-in to MPLAB® IDE

ICP2-GANG and ICP2/ICP2(HC) programmers are integrated into Microchip MPLAB® IDE.
Press "Yes" during software installation after the following message appears "Do you want to install ICP
Plug-in for MPLAB?"
