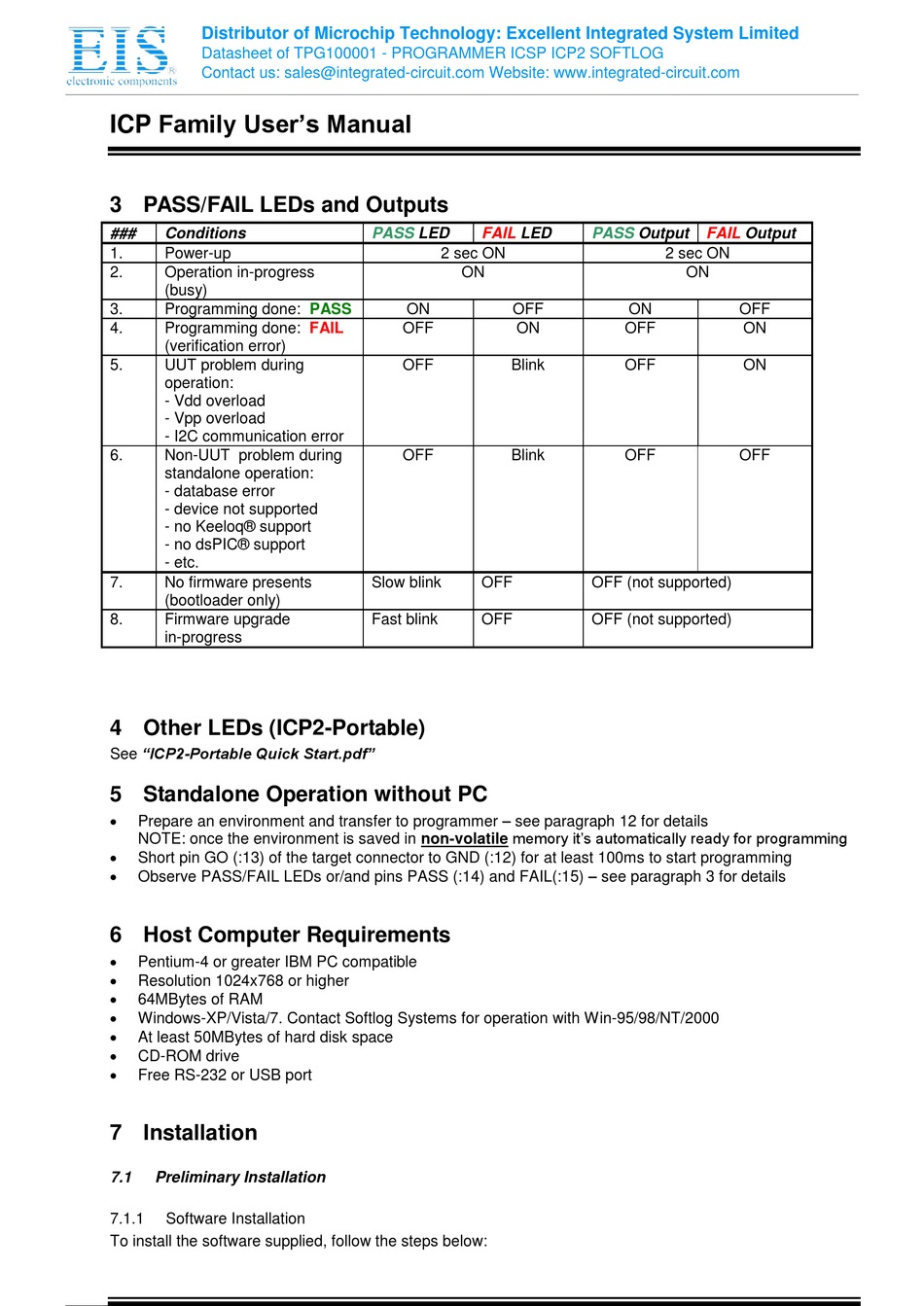

ICP Family User's Manual

3 PASS/FAIL LEDs and Outputs

### Conditions
1. Power-up
2. Operation in-progress
(busy)
3. Programming done:
4. Programming done:
(verification error)
5. UUT problem during
operation:
- Vdd overload
- Vpp overload
- I2C communication error
6. Non-UUT problem during
standalone operation:
- database error
- device not supported
- no Keeloq® support
- no dsPIC® support
- etc.
7. No firmware presents
(bootloader only)
8. Firmware upgrade
in-progress

4 Other LEDs (ICP2-Portable)

See "ICP2-Portable Quick Start.pdf"

5 Standalone Operation without PC


Prepare an environment and transfer to programmer – see paragraph ‎ 1 2 for details
NOTE: once the environment is saved in non-volatile memory it's automatically ready for programming

Short pin GO (:13) of the target connector to GND (:12) for at least 100ms to start programming

Observe PASS/FAIL LEDs or/and pins PASS (:14) and FAIL(:15) – see paragraph ‎ 3 for details

6 Host Computer Requirements


Pentium-4 or greater IBM PC compatible

Resolution 1024x768 or higher

64MBytes of RAM

Windows-XP/Vista/7. Contact Softlog Systems for operation with Win-95/98/NT/2000

At least 50MBytes of hard disk space

CD-ROM drive

Free RS-232 or USB port

7 Installation

7.1

Preliminary Installation

7.1.1

Software Installation

To install the software supplied, follow the steps below:
PASS LED FAIL
2 sec ON
ON
PASS ON
FAIL OFF
OFF
OFF
Slow blink OFF
Fast blink OFF
LED PASS Output
2 sec ON
OFF ON
ON OFF
Blink OFF
Blink OFF
OFF (not supported)
OFF (not supported)
FAIL Output
ON
OFF
ON
ON
OFF
