14 Voltages

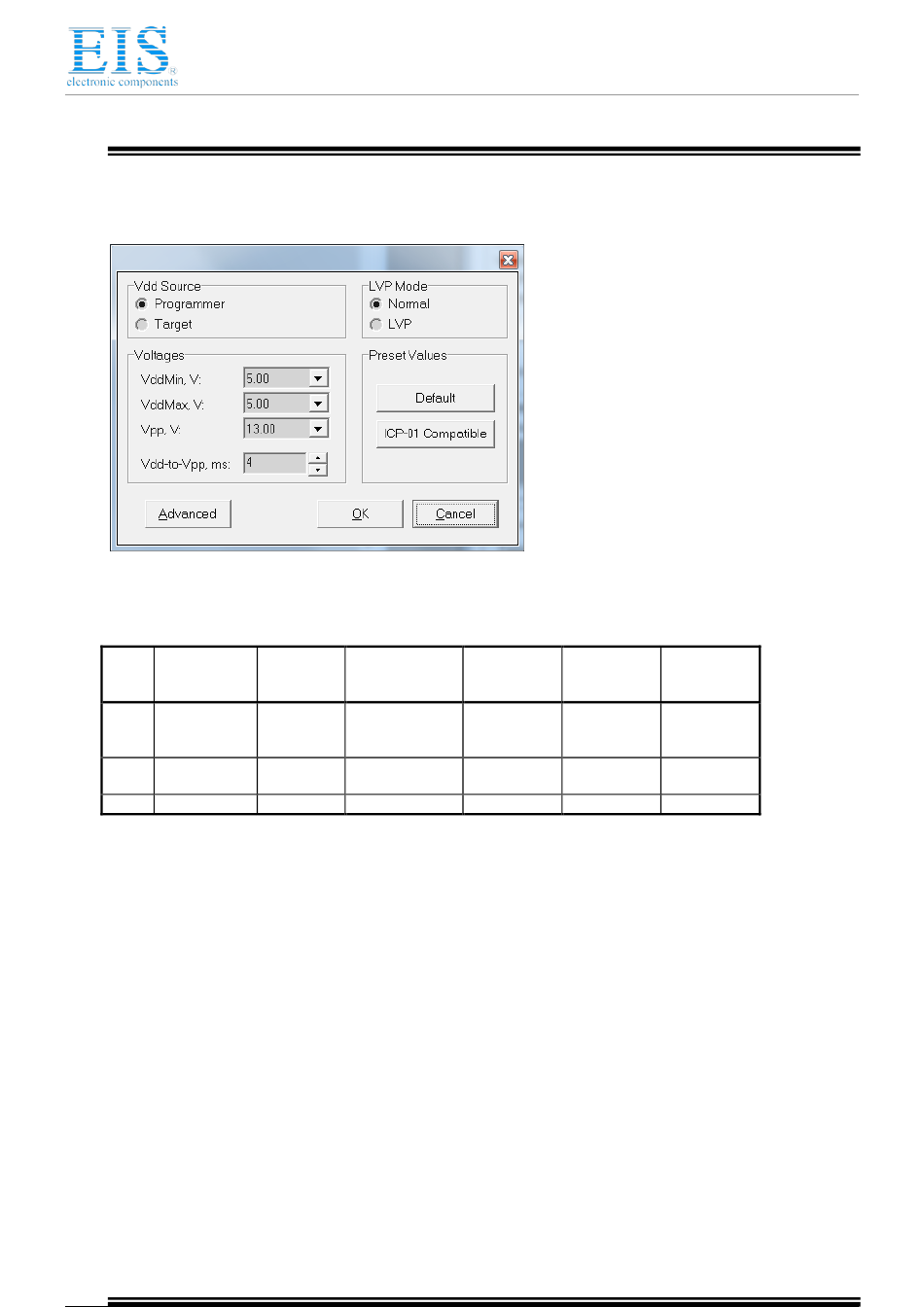

14.1 Menu: Options → Voltage

14.2 Vdd Source and LVP Mode

The programmer executes operations at the following Vdd voltages
### Vdd Source LVP
Mode
1. Programmer Normal
2. Programmer LVP
3. Target Normal
Notes:
1) Use LVP mode if you want to change default programming voltage
2) Set VddMin=VddMax to disable the 2-nd verification pass

14.3 Vpp Voltage

The Vpp voltage is the same for all the operations

14.4 Vdd-to-Vpp Delay

Delay between Vdd and Vpp can be in range 0.1...250ms. It is recommended to use default delay of 4ms to
correctly enter the programming mode. Longer delays may be useful if the Vdd line has high capacitance
(more than 200uF) which causes the Vdd to rise slowly

14.5 ICP-01 Compatibility

Press on "ICP-01 compatible" button forces the following settings:
- Vdd Source:
- LVP Mode:
- Voltages:
Vdd during Vdd during
Programming Verify
Database VddMin,
VddMax
(Note 2)
VddMax VddMax
(Note 1)
Target Target
Programmer
Normal
Database values
Vdd during Vdd during
Blank Read
Check
VddMin Database
VddMax VddMax
Target Target
