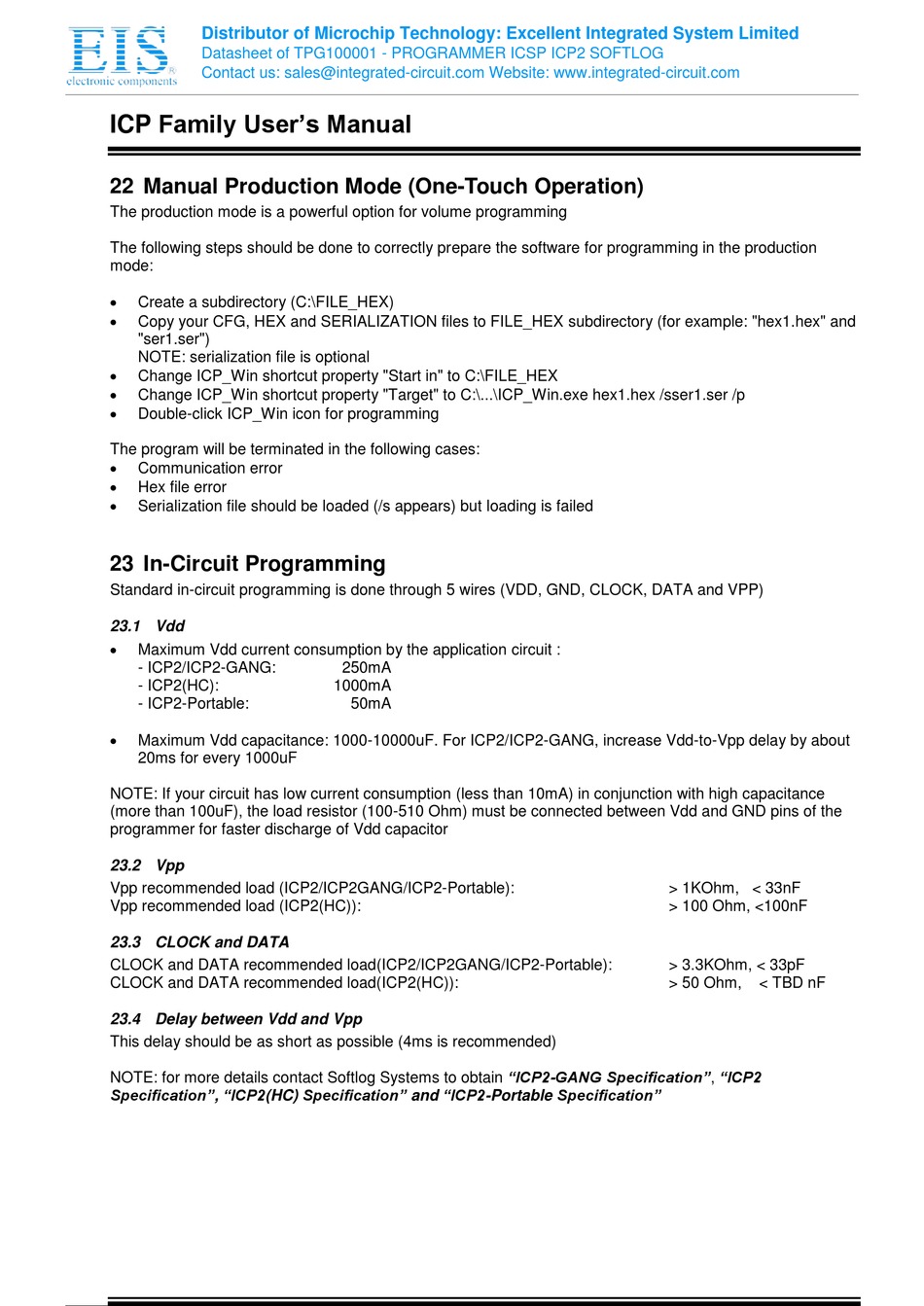

ICP Family User's Manual

22 Manual Production Mode (One-Touch Operation)

The production mode is a powerful option for volume programming
The following steps should be done to correctly prepare the software for programming in the production
mode:

Create a subdirectory (C:\FILE_HEX)

Copy your CFG, HEX and SERIALIZATION files to FILE_HEX subdirectory (for example: "hex1.hex" and
"ser1.ser")
NOTE: serialization file is optional

Change ICP_Win shortcut property "Start in" to C:\FILE_HEX

Change ICP_Win shortcut property "Target" to C:\...\ICP_Win.exe hex1.hex /sser1.ser /p

Double-click ICP_Win icon for programming
The program will be terminated in the following cases:

Communication error

Hex file error

Serialization file should be loaded (/s appears) but loading is failed

23 In-Circuit Programming

Standard in-circuit programming is done through 5 wires (VDD, GND, CLOCK, DATA and VPP)

23.1 Vdd


Maximum Vdd current consumption by the application circuit :
- ICP2/ICP2-GANG:
- ICP2(HC):
- ICP2-Portable:

Maximum Vdd capacitance: 1000-10000uF. For ICP2/ICP2-GANG, increase Vdd-to-Vpp delay by about
20ms for every 1000uF
NOTE: If your circuit has low current consumption (less than 10mA) in conjunction with high capacitance
(more than 100uF), the load resistor (100-510 Ohm) must be connected between Vdd and GND pins of the
programmer for faster discharge of Vdd capacitor

23.2 Vpp

Vpp recommended load (ICP2/ICP2GANG/ICP2-Portable):
Vpp recommended load (ICP2(HC)):

23.3 CLOCK and DATA

CLOCK and DATA recommended load(ICP2/ICP2GANG/ICP2-Portable):
CLOCK and DATA recommended load(ICP2(HC)):

23.4 Delay between Vdd and Vpp

This delay should be as short as possible (4ms is recommended)
NOTE: for more details contact Softlog Systems to obtain "ICP2-GANG Specification", "ICP2
Specification", "ICP2(HC) Specification" and "ICP2-Portable Specification"
250mA
1000mA
50mA
> 1KOhm, < 33nF
> 100 Ohm, <100nF
> 3.3KOhm, < 33pF
> 50 Ohm, < TBD nF
