Summary of Contents for NewLine FLEX
- Page 1 Qu i c k G ui d e T T- 272 1AIO...
-
Page 2: Camera Installation

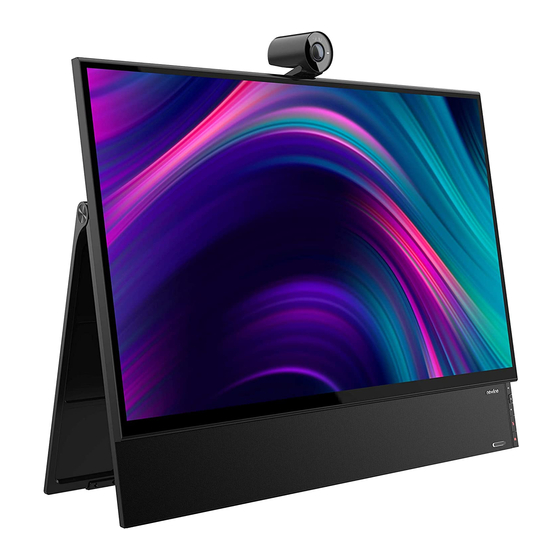

・ Newline Flex can be tilted up to 45 degrees 45° 45° ・ Camera Installation Camera Front Facing Installation: Camera Rear Facing Installation:... -
Page 3: Control Buttons
Use the screws from step one to secure the SDM Module. ・ Attaching the stylus to the Flex Magnetically attach the stylus to the right/left side of the Flex. F L E X Q u i c k G u i d e... - Page 4 Enables touch for externally connected devices. USB Type-C Supports Audio/Video/Touch and 60Watts of power delivery. USB 3.0 Dynamic USB port for easy access to externally connected devices. ・ Understanding your USB Type-C capability with Newline Flex Data Power USB Symbol USB Version...
-
Page 5: Button Function
SDM source. When powered off, the SDM will power Power Button down and the Flex will shut down. If a SDM is not installed, the Flex will power off immediately. Enable or disable the attached Flex camera. If the camera is disabled, the Camera Toggle On/Off camera button will turn red and will off when the camera is re-enabled. -
Page 6: Description Of Osd Functions
・ Description of OSD Functions Display Mode Standard mode: Suitable for browsing websites. Graphics mode: Suitable for viewing photos and graphics. Reading mode: Suitable for viewing documents. Movie mode: Suitable for watching movies. Night mode: Suitable for night browsing. Eye protection mode: Reduces blue light. Image Settings Brightness: Adjust the image brightness. -
Page 7: Color Temperature Settings
Color Temperature Settings Warm color temperature Cool color temperature Custom color temperature: you can select red (R), green (G) and blue (B) according to your preference in the user customization. Saturation: Adjust the intensity of the color. Tone: Adjust the image tone. F L E X Q u i c k G u i d e... -
Page 8: Pip/Pbp Mode
・PIP/PBP Mode Sub-input selection: Select the sub-input source. PIP location: Adjust the PIP location, top left/top right/bottom left/bottom right. PIP size: Adjust the PIP size. Sound channel: Select the sound channel. Picture exchange: Main picture and sub-picture swapping. F L E X Q u i c k G u i d e... -
Page 9: Osd Settings
・OSD Settings OSD display time: Set the length of time the OSD menu remains on the screen. OSD transparency: Adjust the transparency of the OSD menu. Language: Select the language available for the OSD menu. ・Other Settings Input signal source: Select a source. Response time: Improve the response time of the LCD display. - Page 10 ・ Notes By default, the SDM source is automatically selected. When other sources are detected, a dialogue box will appear allowing user to switch sources. When connecting to the line out port, a dialogue box will appear prompting to choose single or double screen mode. In single screen mode, the line out outputs left and right channels, but the embedded speakers will not have any output.
- Page 11 To install the provided rubber stoppers, fully extend the rear kickstand and apply the self adhesive rubber stoppers under the hinge on both sides of the Flex. The rubber stoppers are an added safety measure allowing users to increase the minimum tilt angle of 10 degrees to 25 degrees in situations that require additional stability.
- Page 12 newline-interactive.com...
