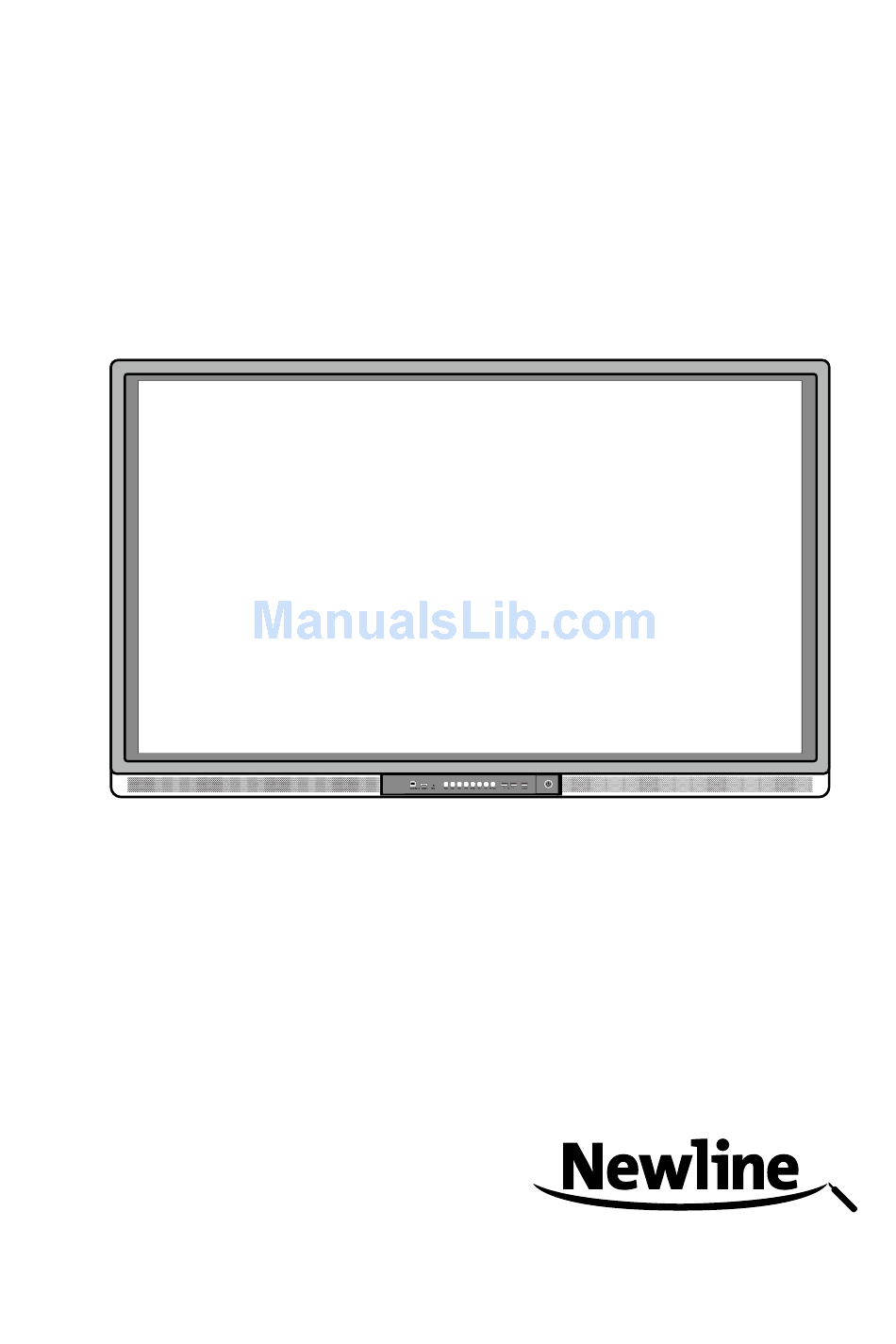

Page 1: User Manual
LED Interactive Multi-Touch Display User Manual V901.20150814 Please properly keep the manual for further reference. This is the general user manual for all interactive panels. Therefore, it may be different from the actual product. - Page 3 Welcome: Thanks for purchasing this product. Please read the instructions carefully before using this product. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 4: Table Of Contents
Contents Safety Instruction Installation Requirement Introduction Basic Operation Power on Power off Software Installation Software Uninstall Software Positioning Positioning in the Windows 7 System OPS Installation Toolbar Introduction Home Page Task Manager White Board Gallery File Manager File Preview File Filter File Search File Operations System Settings... - Page 5 Timer Switch Clear Screenshots Printer Storage Application Program Starting Signals Smart Eyes Protection Reset Browser Audio Only Kids Safety Lock Application Programs Temperature Reminder and Thermal Shutdown Signal Channel Selection Menu ECO Mode Serial Port Control VGA Signal Input Multimedia Format Support Common Faults and Solutions Care and Maintenance Technical Parameters...
-
Page 6: Safety Instruction
Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property loss may be caused by improper operations. Do not try to repair the product by your own. WARNING Disconnect the product from power supply immediately if major failures occur. - Page 7 WARNING Do not open the cover or change the product by your own. High voltage components are installed in the product. When you open the cover, high voltage, electric shock or other dangerous situations may occur. If inspection, adjustment or maintenance is required, contact the local distributor for help.
- Page 8 WARNING Do not cover or block up any vents on the product. The overheated components may cause fire, damage the ● product and shorten the service life. Do not put the venting surface of the product facedown. ● Do not put the venting surface of the product facedown. ●...
-
Page 9: Installation Requirement
Installation Requirement Bearing You can install the product in an unfixed or a wall-mounted way based on your needs. The wall-mounted way can save a large amount of space. If the product is installed in an unfixed way, use the designated hanger or holder. - Page 10 Ventilation distance to the top surface should be over 20 cm Ventilation distance to the bottom surface should be over 20 cm NOTE 1：When the product is installed in a wall-mounted way, the screws need to be installed deeper than 10 mm in the wall. 2：Do not block ventilation vents.
-
Page 11: Introduction
Thank you for your choosing our interactive touch screen. As our latest independently developed and produced human-machine interactive product, the Newline interactive touch screen is a multi-functional display for interactive teaching, digital demonstration, multi-media presentation, touch operations and handwriting. They are well designed and produced... -
Page 12: Outer Appearance
Outer Appearance The front view and back view of the product are displayed as follows: 5 6 7 8 12 13 14 Enclosure Front Cover Plate* Connection Panel 2 Infrared Frame Control Panel Temperature Control Reset Screen Power on/off Rocker Switch Left Loudspeaker Right Loudspeaker Power Outlet... -
Page 13: Control Panel
Control Panel Name Function Description Home Enter/Exit the Android home page. Return Return to previous menu. Menu Enter/Exit the function menu of screen. Switch among three modes: energy saving, automatic, and standard. Source Enter the menu to select the signal source. VOL- Decrease volume. - Page 14 Name Function Description Touch Port 1 The touch control terminal 1 which is used to connect to a PC. The input terminal 1 for high definition signal, which is used HDMI 1 with the touch port 1 to operate PC in the way of touch control. The external microphone port.
- Page 15 Connection Panel 3 Name Function Description The input port for series signals, which is used by specific RS232 control device of serial port to input serial port protocol in order to control the panel. The port for local area network, which is used to connect to internal network.
- Page 16 NOTE1：Please use the cable provided with the product to connect to device. 2：HDMI 1, HDMI 2 and HDMI 3 are high-definition multimedia ports, which are used to provide home theatre experience with the best quality for consumers by transmitting high-definition, all-digital audio and video.
- Page 17 Functions of the Remote Controller Turn to the next page on On or stand by white board software and Mute Open white board software Select TV channel or Switch over to VGA signal enter number source Open the Android home Switch over to HDMI page signal source...
- Page 18 Instructions of Remote Controller The usage scope of the remote controller includes the vertical distance within five meters in front of the product, and the area within an angle of 30 degrees from the vertical point to the left and the right. The effective receiving The effective receiving area is about 3 meters...
-
Page 19: Basic Operation
Basic Operation Power on Step 1: Power the interactive panel with the 100V-240V 50Hz/60Hz AC power supply. Power cord Step 2: Connect the panel to the power supply. Switch on the rocker switch (on the right bottom of the rear of the panel, next to the power port) to enter the standby status. -
Page 20: Power Off
Power off Step 1: Press PC Power to turn off the OPS (for all-in-one models only). Step 2: Press Power on the control panel or Power on the remote controller to enter the standby status. The power indicator turns red. Step 3: In the standby status, switch off the rocker switch to turn off the interactive panel. -
Page 21: Software Uninstall
Step 3: Double click the , follow the instructions and complete the installation of the touch LCD display software. Step 4: The computer needs to restart so as to activate the software after installation completed. Save all the files in the computer and restart. - Page 22 Step 3: Select 9 Points, click Calibrate and the following figure is displayed. Step 4: Use the pen to click and hold the center of the flickering cross. Do not release it until the flickering cross moves to the next point. Repeat and complete the positioning process according to the instructions on the interface.
-
Page 23: Positioning In The Windows 7 System
② ③ ④ ⑨ ① ⑤ Press Esc to quit IR-HID-OLOOVOOO ⑧ ⑦ ⑥ Positioning in the Windows 7 System Step 1: Connect the interactive panel to PC using the USB cable via the USB interface on the panel; Step 2: Choose Control Panel > Tablet PC Settings. - Page 24 Step 3: Click Calibrate in Tablet PC Settings window. Step 4: Use the pen to click and hold the center of the flickering cross. Do not release it until the flickering cross moves to the next point. Repeat and complete the positioning process according to instructions on the interface.
-
Page 25: Ops Installation
TIP： To ensure the handwriting accuracy, use the pen provided with the ● interactive panel to implement positioning. Do not use your fingers. Positioning errors may cause touch function failure on the interactive ● panel. In this case, you need to implement positioning again. During the positioning process, you can press ESC on the keyboard to ●... -
Page 26: Toolbar Introduction
Toolbar Introduction The SmartBar includes three modes: Home Page, White Board, and Remarks. In any of the three modes, you can click on the toolbar to go back to the previous page and click to exit from other programs or go back to the home page from other signal sources. - Page 27 The following figure shows the interface when a USB drive is inserted ● into an all-in-one interactive panel. The desktop of the OPS and files in the portable device can be previewed.
-
Page 28: Task Manager
Click any place on the OPS desktop to display the interface information. ● Click the blank in the SD card preview window to open the SD card portable device. Clic on the upper left corner of the home page to show tools, clock, ●... - Page 29 View Running Programs In the task manager, scroll left and right to view current running programs. Switch Programs In the task manger, click an application program icon to switch programs. For example, click Gallery to switch to the gallery application program, or click Browser to switch to the browser application program.
-
Page 30: White Board
White Board The white board provides the writing function. In the white board program, you can select a pen, line and color to write and use an eraser to erase content on the white board. You can also print and clear the content on the white board. -
Page 31: Screen Capture
Pen, Line and Color If the marker is selected, click and hold for two seconds to set its line and color. If the highlighter is selected, click and hold for two seconds to set its line and color. Eraser Two methods are available to erase written errors or content as follows: Click to select the eraser, and then you can use it to erase the content ●... -
Page 32: Gallery
Press CAPTURE on the remote controller to save current content on the ● white board as an image in Pictures > Screenshot directory in the file manager. Print and Clear Click Print and Clear are displayed. Click Print to print current content on the white board. -
Page 33: File Manager
Play slides ● Click on the upper right corner of the folder and select Slide to play images as slides. File Manager The file manager provides various functions, such as preview, filter,search, select, copy and delete files. File Preview Click on the SmartBar to enter the file manager interface. - Page 34 System file preview ● Preview of external device file ●...
-
Page 35: File Filter
File Filter In the system, documents, images, audios and videos can be displayed by sort to help you find the file. Click icons on the left toolbar to view files by sort. Two ways are available to view the files: by list or by thumbnail. Click at the bottom of the toolbar to switch the way to view files, as shown in the following figure: File Search... -
Page 36: File Operations
The search results can be displayed by sort. A filter toolbar including the file types of All, PPT, PDF, DOC, XLS, Audio and Video is displayed under the search box, as shown in the following figure: File Operations Click Document operation on upper right corner of the file manager. The functions, select all, select one, copy, delete and cancel, are provided, as shown in the following figure: Click a file: The current file is selected. -
Page 37: System Settings
System Settings Click on the SmartBar to enter the system settings interface. The Network, Language and input method, Date and time, Scheduled power on/off, Clear screen shots, Printer, Storage, Application, Starting signals, Smart eye protection, About, are displayed on the screen. -
Page 38: Network
Network Click Wireless & network to check the Network status, Wake up via LAN, LAN setting, WiFi setting and WiFi hotspot setting. Select a network connection and set related parameters correctly. Network Status The network status includes the information about current network connection. - Page 39 Wake on Via LAN When Wake up via LAN function is ON, administrator of control center can send requests via LAN using MAC address of touch screen to power on touch screen remotely. To use the function successfully, touch screen should be power off and connected to control center with LAN cable in the same network.
- Page 40 Step 2: Using remote control to enter number 2580 in Input Source to enter Design Menu page. Step 3: Click Ursa Info in Design Menu page to enter Ursa Info page and get WOL_MAC as MAC address of touch screen.
- Page 41 LAN Setting If the panel is connected with LAN cable and supports Dynamic Host ● Configuration Protocol (DHCP), the system will automatically configure the internet protocol (IP) value. If the network protocol needs to be set manually, enter the IP address, ●...
- Page 42 WIFI Setting When the Android USB port on the panel is connected with an external wireless card (customized) and WiFi setting is enabled, the system automatically searches available wireless network APs. In the result list, select the AP to be connected. After an AP with safety authentication is selected, an interface is displayed to ask for the password.
- Page 43 WIFI Hotspot Setting When the Android USB port on the panel is connected with an external wireless card (customized) and Portable Wi-Fi hotspot enabled, perform the following operations: Select Portable Wi-Fi Hotspot to set the panel as a WIFI hotspot. ●...
-
Page 44: Language And Input Method
Language and Input Method Click Language and Input method. A setting interface is displayed. Click Language. Chinese (China) and English are displayed. -
Page 45: Date And Time
Click KEYBOARD & INPUT METHODS. Two input methods, AOSP ● and Google Pinyin, are displayed. You can choose one according to your preference. Click Android Keyboard (AOSP) to enter the related setting interface. ● Date and Time Click Date and time to enter the setting interface. - Page 46 Click Select 24-hour mode to set the time format of 24 hours. ● Otherwise, the time format is displayed as 12-hour time. Click Select date format to set the date format to be displayed. ● When Auto sync time and date is selected, the date and time of the ●...
-
Page 47: Timer Switch
Deselect Auto sync time and date and then you can click Set date, ● Set time, Set time zone to set the date, time and time zone manually. Timer Switch Click Scheduled power on/off to enter the interface for setting the automatic startup and shutdown time. - Page 48 Click Power on time to set the automatic startup time in the displayed ● window. Click Power off time to set the automatic shutdown time in the ● displayed window.
-
Page 49: Clear Screenshots
Clear Screenshots Click Clear screen shots. A list is displayed and sorted by one month, two months, three months, six months and twelve months. Select a time to clear the screenshots included this period. Printer Click Printer to enter the printer setting interface. The connecting printer is displayed on the interface. -
Page 50: Storage
Storage Click Storage to check the usage of internal storage space and USB storage device in the displayed window. Application Program Click Application to check the application programs in DOWNLOADED, IN SD CARD, PROCESSING and ALL. -
Page 51: Starting Signals
Starting Signals Click Starting signals. On the displayed interface, click Default startup to set the default signal source after each startup. Smart Eyes Protection Click Smart eyes protection to set Eye protection mode, Eye protection writing mode and Eye protection brightness control mode on the displayed interface. -
Page 52: Reset
Reset Click About to check Android version, Activation, Reset, and Firmware update on the displayed interface. Click Reset and then click OK to restore factory settings. ● If a new Android version is available, is displayed on the left of ●... -
Page 53: Browser
Browser Click on the SmartBar to open the web browser. Enter a website in the address bar and enter keywords in the search box by using the soft keyboard or remote controller. Audio Only Click AUDIO ONLY on the remote controller to turn off the screen but keep audio on. - Page 54 Step 3: Kids Safety Lock will be activated after successful setting. To turn on the function, switch to On to lock the device. To turn off the function, change the setting to Off. Press ECO button on the front panel for more than 5 seconds to enter screen locked mode.
-
Page 55: Application Programs
Application Program Click on the SmartBar to enter the application program page. All application in the system are displayed. Scroll right and left to turn the page, as shown in the following figure: Calculator Click to enter the calculation page. Click digits and operators on the keyboard to perform calculation. - Page 56 Clock Click to enter the clock page. Click Start to start timing and click Stop to stop timing. Music Click to start the music program. The music in the local disk is displayed by artists, albums, songs, playlist and playing status.
-
Page 57: Temperature Reminder And Thermal Shutdown
Temperature Reminder and Thermal Shutdown Temperature Reminder The real-time temperature in the interactive panel is displayed on upper left corner of the home page. Click the temperature display area on the top-left corner of screen to switch between Celsius and Fahrenheit. -
Page 58: Signal Channel Selection
Signal Channel Selection The following three ways are used to select a signal channel: Press SOURCE on the remote controller. ● Press Source on the control panel of the interactive panel. ● Click in the application program page. ● In the signal source page, press ▲ / to select a channel and press OK. -
Page 59: Menu
Menu After switching to selected signal source, press MENU on the remote controller. A menu is displayed, including Picture, Sound Mode, Parental Control and Settings. Scroll left and right on the screen or press to switch between entries. Picture The Image page displays options including Picture Mode, Color Temperature, Zoom Mode, Image Noise Reduction, and MPEG Noise Reduction. - Page 60 Two ways are used to set the options: Click an icon and set the option. ● Press ▲ / to move the cursor onto an option. Press OK and press ● to modify the value. Press RETURN to exit the menu. When the sound mode is User, High Pitch and Low Pitch are adjustable.
-
Page 61: Parental Control
Parental Control The Parental Control menu shows options including Lock System, Set Password, Block Program, and Kids Safety Lock. There are two ways to set it: Click an icon and set option. ● Press ▲ / to move the cursor onto an option. Press OK and press ●... -
Page 62: Eco Mode
ECO Mode Please switch off the panel when it is not used, and enable the ● function of Listen Alone when you do not need to watch the display, which help reduce power consumption and save energy. On the premise of ensuring viewing effect, the energy ●... -
Page 63: Serial Port Control
Serial Port Control The RS-232 port of the interactive panel is defined as follows: Connect RS-232 port to the PC or controlling device. Enable RS-232 serial port connection and complete the following configuration. Port Number: COM 1 (Set the value according to the port number of the PC or controlling device.) Bit rate 19200... - Page 64 Function Controlling Code Function Controlling Code 7F 08 99 A2 B3 C4 02 7F 08 99 A2 B3 C4 02 HDMI 1 FF 01 0A CF FF 01 28 CF 7F 08 99 A2 B3 C4 02 7F 08 99 A2 B3 C4 02 HDMI 2 FF 01 0B CF FF 01 29 CF...
-
Page 65: Vga Signal Input
VGA Signal Input VGA (Video Graphics Array) is the computer display standard for analog signal. VGA port is the special port on the computer which uses the VGA standard for data input. The following table lists the specifications of various VGA signal input. NOTE：The VGA signal input is available only when the panel is in PC mode. -
Page 66: Common Faults And Solutions
Common Faults and Solutions Symptom Possible Cause Solution The drive program is not Install the drive program correctly installed. correctly. The USB port (lead) Change the USB lead or The service program is not connected or is check if the USB port is fails to be connected. - Page 67 Symptom Possible Cause Solution The covering area of the Change the nib or use a nib does not meet the pen with larger covering requirement or the nib is area. too small. The infrared tube is Check if infrared tubes blocked.
- Page 68 Symptom Possible Cause Solution Check whether the power plug is inserted into the ● power socket and whether the panel is powered on. Check whether the rocker switch on the ● interactive panel is switched on. Check whether the Standby button on the panel ●...
-
Page 69: Care And Maintenance
Care and Maintenance Maintenance Tips Do not put or install the product near a heat source or under direct ● sunlight, or in dusty or humid places, or somewhere the product may be hit or damaged by mechanical vibration. To maximize the performance, it needs to be put away from equipment such as grid, large metal objects and radar stations as far as possible. -
Page 70: Technical Parameters
Newline Interactive may modify the user manual without prior notice. If you discover any unclear presentation, mistake or omission in this manual, please contact us immediately. Newline Interactive is not liable for any loss or damage if you fail to contact us. - Page 72 20302T5A5001050...
