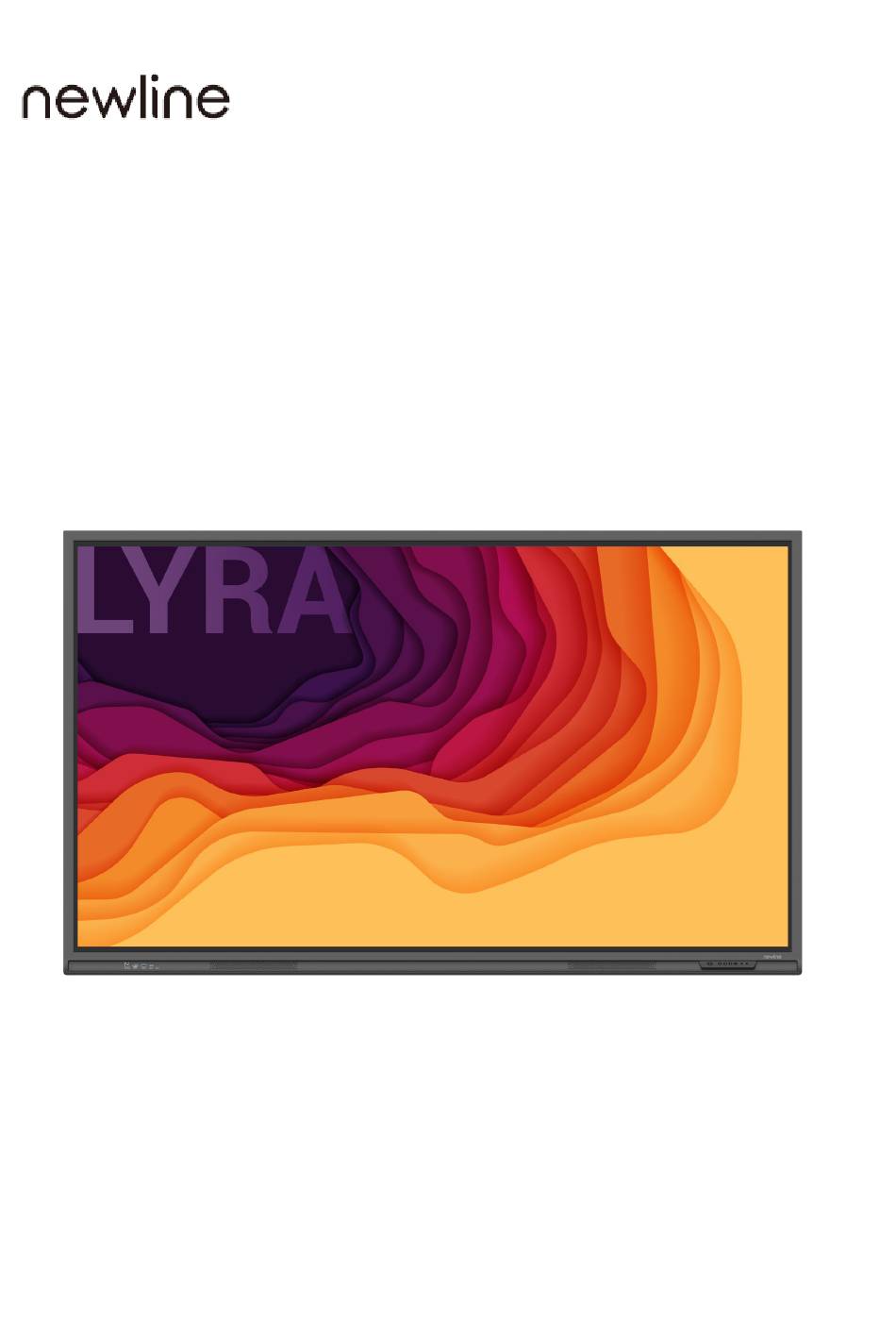

- Page 1 Q Series (Lyra) Interactive Flat Panel Display User Manual...
- Page 2 Welcome to the world of NEWLINE Thank you for choosing the Q series Interactive Flat Panel Display. Please use this NEWLINE document to get the most out of your screen. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
-
Page 3: Symbol Conventions
Symbol Conventions Symbols are used in this document to indicate operations that need particular attention. The symbols are defined as follows: Provides additional information to supplement operation in the main text. Indicates a potentially hazardous situation that, if not avoided, could result in equipment damage, data loss, performance deterioration, or unanticipated results. -
Page 4: Safety Instruction
Safety Instruction For your safety, please read the following instruction before you use the product. Serious injury or property damage may be caused by improper operations. Do not try to repair the product on your own. WARNING Disconnect the product from the power supply immediately if major failures occur. Major failures include the following: If smoke, a peculiar smell or an abnormal sound is discharged from the product. - Page 5 WARNING Do not put items on the top of the product. Do not put items, such as a container for liquid (a vase, flowerpot, cosmetics or liquid medicine) on the top of the product. If any water or liquid is spilled on the product, the product may short circuit cause fire or ...
- Page 6 CAUTION Do not install the product on carpet or cloth. Do not use a cloth such as table cloth to cover the product. Keep the product away from the radio. The product complies with the international EMI standard to prevent radio interference. However, interference may still exists and causes noise in the radio.
- Page 7 CAUTION may be damaged.
-
Page 8: Parts And Functions

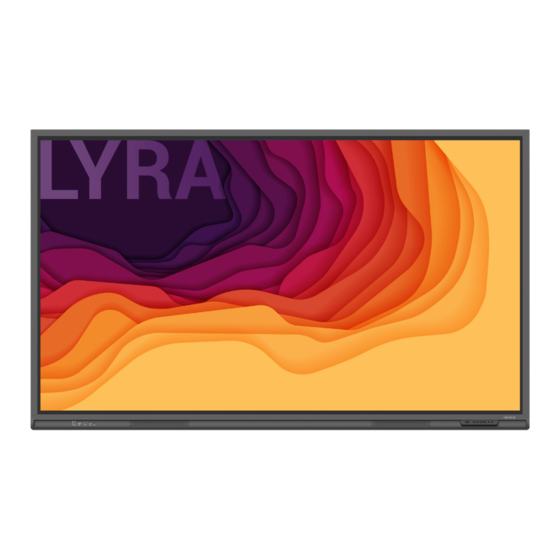

Parts and Functions 1.1 Parts Front View 65 " / 75 " / 86 " / 98"... - Page 9 Rear View 65 " 75 " 86 "/ 98 "...
- Page 10 Front Ports Power Output Plug Speakers Power Supply Plug Power On/Off Power Switch Front Buttons Rear Ports 1 Remote Control Receiver Rear Ports 2 Light Sensor OPS Port...
- Page 11 1.2 Ports CAUTION Front USB ports and rear USB 3.0/USB 2.0 ports switch connections based on signal sources. If the current signal source is reading the data from an external product connecting to the port, please switch the signal source after the data reading is complete. Otherwise, the data or product may be damaged.
- Page 12 WARNING The rear power output port is supplies 5 V/2 A (maximum) power. Please contact Newline to purchase the power AC adapter for powering external devices. Please do not connect any products which require power than listed. Doing so may cause injury or damage to the panel.
-
Page 14: Buttons Operations
Front Buttons Buttons Operations Functions Short press Power on Solid white color : Display is on and working Sleep mode The red and white lights flicker alternately: Display enter Sleep mode. Long press for more Power off than 2 seconds Solid red color : Display is in shut down mode ... - Page 15 Buttons Operations Power On/Off Mute/Unmute Audio Number Keypad Go to the Home Page Return to Previous/Exit Directional Pad Confirm/OK Start Whiteboard Mode Take a Screenshot Enable Sound Only Mode Press once to freeze the current screen. Press again to exit freeze function Adjust the Volume Adjust the Brightness Enter the Source Selection Page...
- Page 16 Buttons Operations Open the Browser Application Toggle Display Backlight Mode Enter the Screen Lock interface Open the Quick Setting menu on the embedded os system. Open the menu in Windows system. Open the System Settings...
- Page 17 Installation Guide 2.1 Safety Precautions Installation Environment...
- Page 18 Installation Direction 2.2 Installation Precautions Weight Loading Weight of the panel: 143lb/ 65kg (86INCH), 115lb/52 kg (75INCH), 86lb/ 39kg (65INCH) When using a mobile stand, ensure that the weight of the product is less than the loading capacity of the mobile stand. When using the wall-mount bracket, ensure that the wall can support the weight of the ...
- Page 19 For any problem, please contact our support desk. Our company is not responsible for any damage or losses incurred by users if the users fails to follow the instructions. Ventilation Ensure adequate ventilation and/or an air conditioned environment. We recommend keeping certain distances from the side of the product to the wall or panels.
-
Page 20: Installation
2.3 Installation The dimensions of the four bracket mounting holes on the back panel are VESA MIS-F compliant (86INCH or 75INCH: 800 x 400 mm/31.50 x 15.75 in; 65INCH: 600 x 400 mm/23.62 x 15.75 in). Use metric M8 screws with a length of 10 mm to 15 mm (0.40 to 0.59 in) to secure the touch screen to the mountingsystem. - Page 21 2.4 Installing the OPS (Optional) The OPS does not support hot plugging. Therefore, you must insert or remove the OPS when the display is powered off. Otherwise, the display or OPS may be damaged. You will need to purchase the OPS separately. Perform the following steps to install the OPS. Step 1 Unscrew the M3 screws by hand to remove the OPS protective cover.
-
Page 23: Power On/Off
Power On/Off 3.1 Power On Step 1 Ensure the power cable is fully seated into the panel and wall outlet before powering on the panel. Please confirm your wall outlet supports a power range of 100V to 240V with frequency at 50 Hz/60 Hz ± 5% and is fully grounded. The power outlet should be installed near the equipment and should be easily accessible. -
Page 24: Power Off
Step 3 Press the power button on the front control panel or on the remote control. 3.2 Power Off Step 1 Press the power button on the front panel or the power button on the remote control to enter sleep mode. Step 2 Long press the power button on the front panel or the power button on the remote... - Page 25 Step 3 In the Warning dialog box, tap Cancel to return to working mode. Tap Turn off to turn off the display, and the power indicator will turn to red. Step 4 If you want to completely turn off the panel, turn off the rocker switch behind the panel (next to the power socket) and unplug the power cord.
-
Page 26: Operating The Touch Screen
Operating the Touch Screen 4.1 Profile Logon When the panel is powered on, the panel will show all the registered accounts as shown in the following figure: Tap the icon to enter the 6 digits passkey and log into the system homepage. - Page 27 Notes: If you forgot your passkey, please contact your administrator to reset your passkey.
- Page 28 4.2 Home Once logged into the system, the user will be taken to the Home page as shown in the following figure: 1: Logo (Shortcut to Settings) 2: Clock (Shortcut to Clock) 3: Date and Week(Shortcut to Calendar) 4: Side Toolbar 5: Status Bar and Settings 6: Main Icon 7: Preview Window for Signal Source...
-
Page 29: Side Toolbar
Tap to enter the app interface. Apps displays all pre-installed applications, including Calculator, Calendar, Clock, Settings, Newline Cast, File Viewer, Office Suite, and…etc. Tap the icon of an application to run the application. Tap “Screen Sharing” icon to enable the wireless screen sharing function. - Page 30 Shrink 2:...
-
Page 31: Icon Functions
Expand 2: Below is a complete list of toolbar functions: Icon Functions Switch to the OPS source. Go to Home page. Tap once to start annotation mode, tap again to stop annotation and take a screenshot. Switch to whiteboard mode. Minimize or maximize the toolbar. - Page 32 Icon Functions Return to the previous menu or exit an app. Status Bar and Settings The upper right corner of the home page displays three working active status icons (including USB drive(s), Ethernet, and Wi-Fi), system setting shortcut and log out icon. Icon Functions If a USB drive is connected to the USB port, this icon will appear highlighted.
-
Page 33: Add Shortcuts To Home Page
Connection. to view the Windows software shortcuts that the Newline Assistant uploads to the embedded operating system. For details, see “Add Quick Start Windows Programs in Smart System”. - Page 34 to view all applications. Step 3 Add or delete applications on the tab. In the list, tap the icon to add it as a shortcut on the Home page. A check icon will appear at the upper right corner of the shortcut icons. Up to 5 shortcuts can be added. Tap the icon with the check mark again.
- Page 35 5.2 Newline Assistant 5.2.1 Introduction The Newline Assistant agent is a tool used as a bridge between the embedded operating system and the OPS. It helps add Windows software shortcut to the Home Page, as well as to protect USB data when switching between sources.
-
Page 36: Add Quick Start Windows Programs In Smart System
5.2.3 Add Quick Start Windows Programs in Smart System Step 1 In Windows, run the Newline Assistant program and drag the software icons or folder shortcut icons that you want to add from the desktop or menu to the Newline Assistant window. - Page 37 Windows software shortcuts added by the Newline Assistant in Step 1. By default, the Newline Assistant application is added on the tab. Step 4 Tap the icon to add the shortcut on the Home page or tap again to remove it.
-
Page 38: Quick Setting Menu
Quick Setting Menu Using two fingers and swipe up from the bottom of the screen to access the Quick Settings menu, as shown in the following figure. Icon Functions Drag the slider to adjust the brightness. Drag the slider to adjust the volume. Tap the icon to enable the Freeze Function. - Page 39 Functions Tap the icon to enable or disable the embedded operating system Wi-Fi.. Tap the icon to launch the Newline Classroom Tools. Tap the icon to enable sound only mode. In sound only mode, the screen LCD displays and LED backlight turns off, other functions will continue to work as normal.
- Page 40 More Information For More Information Please visit our website (https://newline-interactive.com/eu/) for detailed instruction manual. Contact Us for Support Please email us at support_uk@newline-interactive.com. National Service Hotline: +44 333 577 6928. The company is committed to product updates and technical improvements. The technical parameters and specifications are subject to change without prior notice.
