CHAPTER 5: RETRIEVING AND VIEWING DDFR ARCHIVER DATA
5.3.3

Archiver Waveforms Records

DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL
Select File > Configure from the Events Screen main menu.

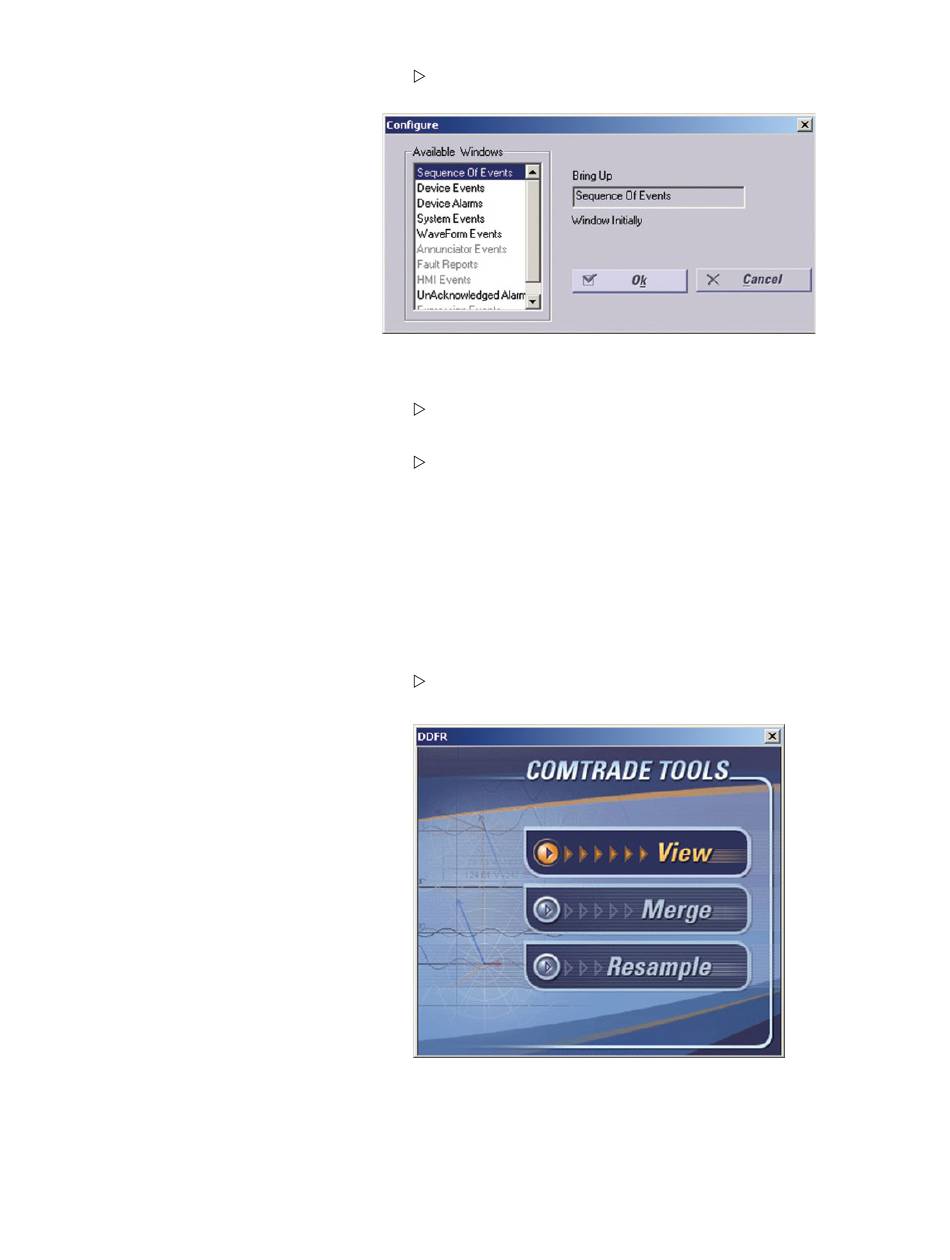

FIGURE 5–7: Configuring the Data Display Default Window
From the Available Windows section, select the Window that you
want to bring up when you open the Archiver Events Screen.
Press OK.
The Display Window you selected will now appear automatically
when you open the Archiver Events Screen.
Waveform Records retrieved from the protection relays are stored in the DDFR in
COMTRADE-1999 standard format. All files required to comply with the COMTRADE-1999
format, including .CFG, .HDR, and .DAT are stored with all appropriate fields populated.
On the DDFR Archiver Main Screen, click the Waveform menu item.
VIEWING DATA IN THE DDFR ARCHIVER
FIGURE 5–8: Archiver Waveform Menu
91
