CHAPTER 5: RETRIEVING AND VIEWING DDFR ARCHIVER DATA

5.3.3.3 Waveform Resample

5.3.3.4 Viewing Retrieved Waveform Files

DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL
Continue the process, pressing Next each time, until the merge
process is complete.

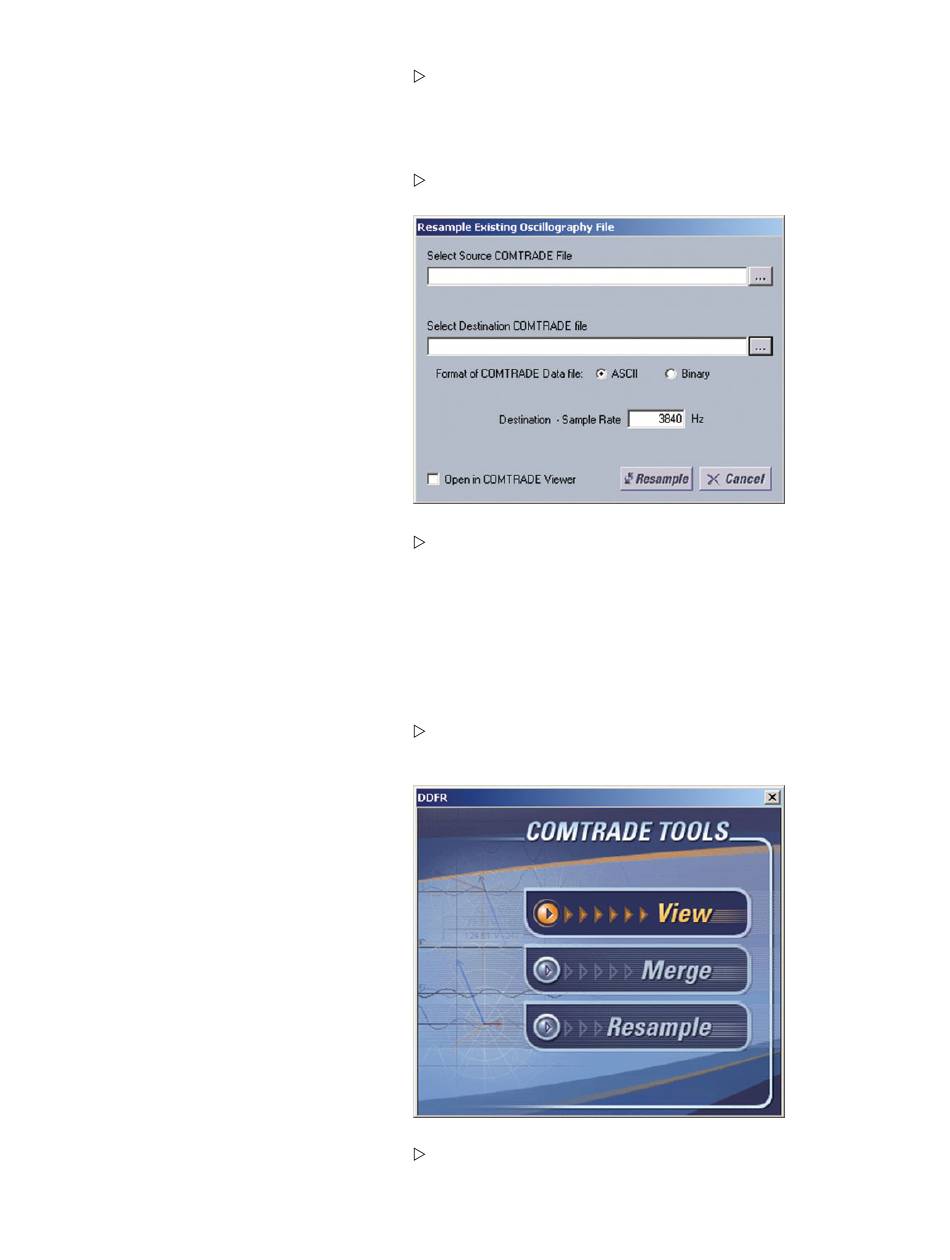

On the Archiver Waveform Menu, click on Resample.
Follow a procedure similar to Merge above.
The Waveform Viewer feature within the DDFR Archiver provides a visual display of power
systems data and relay operation data captured during a specific triggered event.
Previously captured and saved Waveform files (Oscillography/COMTRADE, .CFG) can be
retrieved and viewed as follows:
From the main DDFR Archiver Screen, select Waveforms.
The following screen displays:
Click View to open the Waveform records as shown in section
5.3.3.1.
VIEWING DATA IN THE DDFR ARCHIVER
