CHAPTER 3: DDFR CONFIGURATION
3.4

Configuring the DDFR WatchDogs

Note
DISTRIBUTED DIGITAL FAULT RECORDER – INSTRUCTION MANUAL
A Watchdog is essentially a "health monitor" for the DDFR.
For a full explanation, see below.
The DDFR WatchDogs Screen (figure 3-10) can be accessed using the Settings >
WatchDogs menu option in the Online Device Tree, as shown in Figure 3-11.
FIGURE 3–11: Online Device Tree Showing Settings > Watchdog Option
Watchdog information can also be accessed from the Settings Files in the Offline menu. As
with all Settings Files information, WatchDog information can be created off-line in the
Settings File and transferred - using the Send File to DDFR command - to the DDFR in
CONFIGURING THE DDFR WATCHDOGS

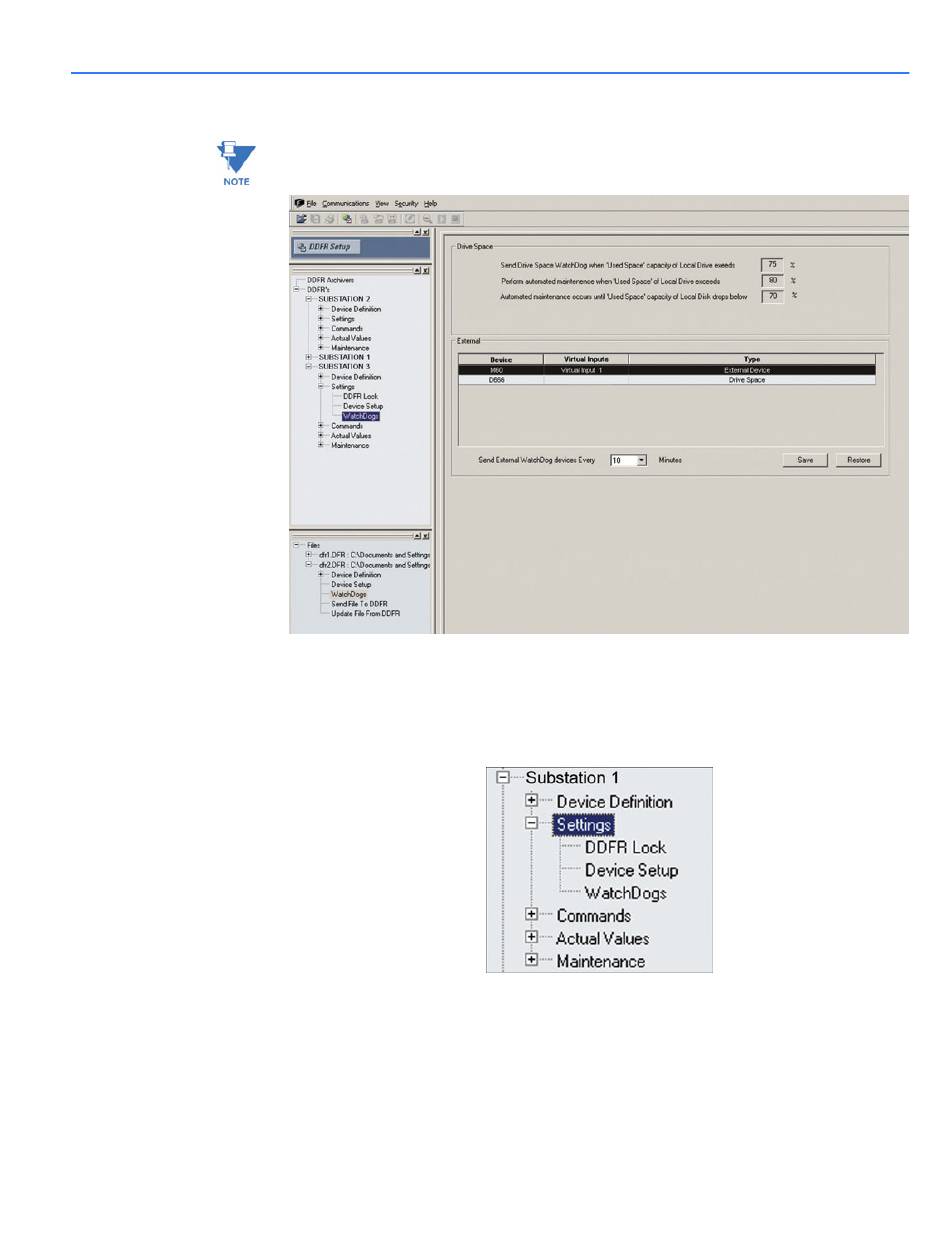

FIGURE 3–10: DDFR WatchDogs Screen
65
