Warning and Caution ■ If the product does not work properly, please contact your dealer or the nearest service center. Never attempt to disassemble the camera yourself. Any unauthorized changes or modifications could void the warranty. ■ Do not allow water or liquid intrusion into the camera. ■...
Page 3

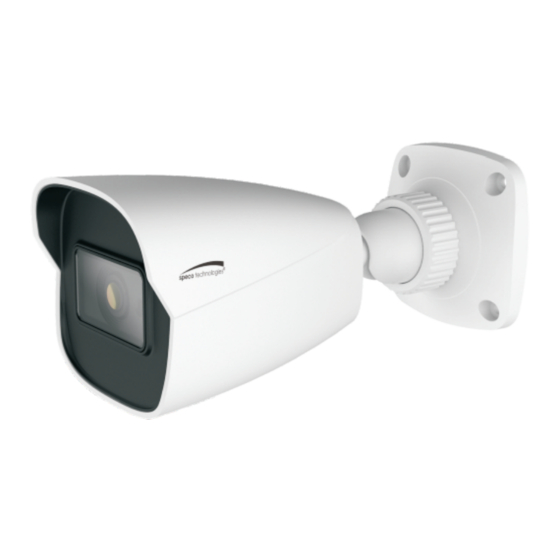

Camera Quick start guide Drill Template × 4 4 tapping screws Junction box Plastic plug Overview Overview Fixed ring DC power connector Mounting base Micro SD card slot Reset Ethernet connector...
DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ① Loosen the nut from the main element. ②...
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the mounting base and the upper cover of the junction box. Mounting Base Upper Cover ②...
Page 6
④ Connect the cables and then i nstall the camera onto the junction box as shown below. ⑤ Bracket Adjustment-Loosen the fixed ring to adjust the view angle of the camera. After you get the optimum angle of view, tighten the fixed ring to complete the installation. Fixed Ring Pan 360°...
Page 7
The camera is set to DHCP by default. ② Install IP Scanner from the CD and run it after installation. O4VB1 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer.
Page 8
The login interface is shown above. Default user name is admin and password is 1234. After logging in, follow directions to install applicable plugins.
