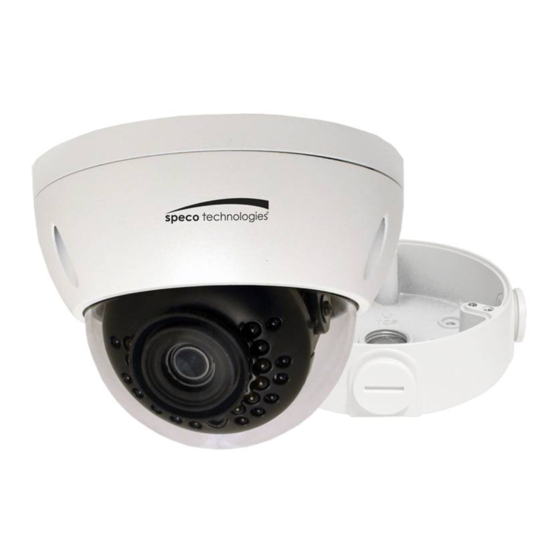

- Page 1 Quick Start Guide 4MP IP Vandal Dome Camera O4VLD1 Version 1.0...
- Page 2 This owner’s manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support.
- Page 3 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class 2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 4 Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory Name...
-
Page 5: Table Of Contents
Table of Contents Physical Specifications ......................... 1 Components ........................1 Dimensions ........................2 Device Installation ........................3 Installation Steps ......................3 IP Scanner ............................. 5 Overview ......................... 5 Operation ........................5 Web Operation ..........................6 Login and Main Interface ....................6... -
Page 6: Physical Specifications
1 Physical Specifications 1.1 Components Note: The following figure is for reference only, which is used to indicate the components and the functions. Refer to the following figure for component structure. See Figure 1-1. Figure 1-1 Component structure Please refer to the following sheet for detailed information. Component Component Name Component 1... -
Page 7: Dimensions
1.2 Dimensions Please refer to the following figure for dimension information. The unit is in mm. See Figure1-2. Figure1-2... -
Page 8: Device Installation
2 Device Installation 2.1 Installation Steps Note: Before installation, please make sure the installation surface can support a minimum of 3 times the weight of the camera Figure 2-1 Device installation illustration Step 1 Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner hex screws on enclosure. - Page 9 direction, adjust the lens vertical direction to designated position; it is okay to loosen the fix screws on both sides of the bracket first if it is too tight to adjust (just make it loose, do not take it out), then adjust the lens, tighten the fix screws after adjustment.
-
Page 10: Ip Scanner
3 IP Scanner 3.1 Overview IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. 3.2 Operation Open up IP Scanner. Error! Reference source not found. In the device list, you can view the IP address, model number, and MAC address of each device. -
Page 11: Web Operation
4 Web Operation This device supports viewing and management via a web browser on a PC. 4.1 Login and Main Interface Open the browser and input network camera address in the address bar or double click the device in IP Scanner. See Figure 4- 1.
