Summary of Contents for Speco O4VBW2

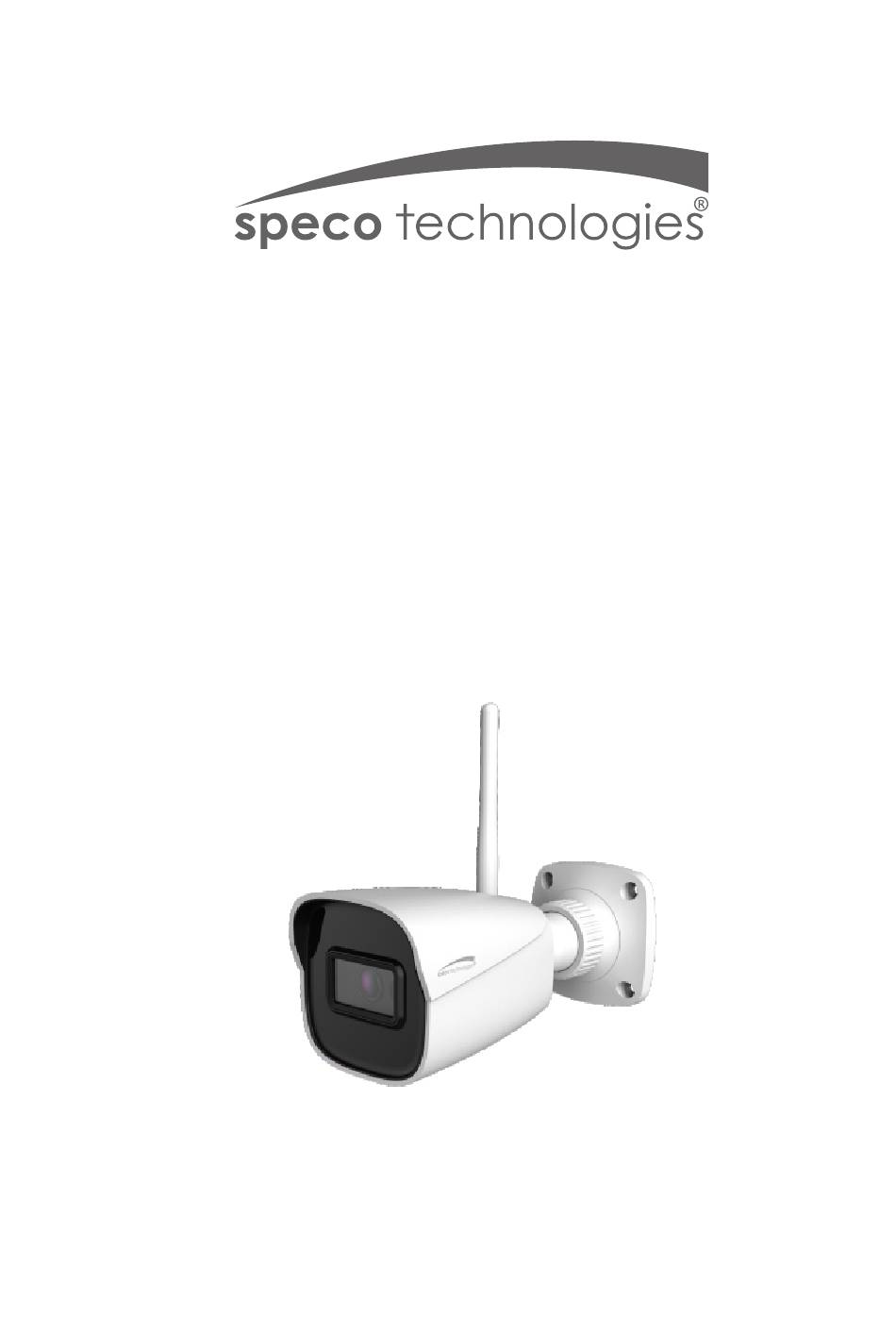

- Page 1 Quick Start Guide O4VBW2...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Plastic screw Camera Quick start guide Drill template Junction box anchors Screws (PA 4×25mm) Screws Rubber o-rings Antenna 1Screw (PWM3×5mm) (PM 4 ×10mm) for screws Overview Overview The bezel is held in place via magnets. To remove, pinch the visor portion of the bezel with two fingers and then pull out the bezel portion only.
-
Page 5: Connecting Network Cable
External microphone DC12V * It is recommended to install the water-proof connector for outdoor installations. Connecting Network Cable ① Loosen the nut from the main element. ② Run the network cable (without RJ 45 connector) through both elements. Then crimp the cable with RJ 45 connector. ③... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Open the mounting base and the upper cover of the junction box. Mounting Base Upper Cover ②... - Page 7 ④ Loosen the fixed ring and then adjust the bracket as shown below. Install the antenna to the camera. After that, adjust the antenna and the bracket of the camera as needed. Antenna Fixed Ring ⑤ Fasten the camera onto the mounting base. ⑥...
- Page 8 ⑦ Bracket Adjustment-Loosen the fixed ring to adjust the viewing angle of the camera. After you get the optimum angle of view, tighten the fixed ring to complete the installation. Fixed Ring Pan 360° Tilt 80° Web Operation and Login IP Scanner can search for the device on the local network.
- Page 9 5C:F2:07:24:58:9A O4VBW2 ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser .
- Page 10 Enable Networks Search Index SSID Working Mode Security Mode Channel Signal Mbps Connection WLAN Manage WPA2-personal Unconnected WI-FI SSID WLAN Note: these settings should match the wireless router. Only Security Mode WPA2-personal 2.4ghz frequency is supported Key 1 Encryption Type Obtain an IP address automatically Use the following IP address 192.168.1.2...
