Summary of Contents for Speco O4VB2

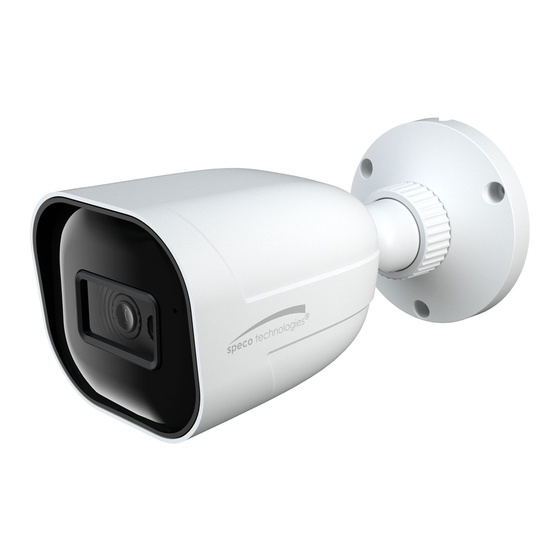

- Page 1 Quick Start Guide O4VB2...
- Page 2 This owner's manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, contact Speco Technologies Tech Support at 1-800-645-5516 Important Safeguards and Warning 1.
- Page 3 Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included.
- Page 4 Quick start guide Camera Drill template Screws (PA 4 ×25mm) 3 Plastic screw anchors Screw (PWM3 5mm) × Overview Overview To remove the bezel, insert the slotted screwdriver to the slot of the bezel indicated by the arrow and then open the bezel portion only.
-
Page 5: Connecting Network Cable
External microphone DC12V * 1 It is recommended to install the security cap for outdoor installations. * 2 DC 12V power supply is not required if a PoE switch or injector is used to power the camera. ► Connecting Network Cable ①... -
Page 6: Installation
Installation * Before you start, please make sure that the wall or ceiling is strong enough to withstand three times the weight of the camera. ① Attach the drill template to the place where you want to fix the camera and then drill the screw holes and the cable hole on the wall according to the drill template. - Page 7 ⑤ Bracket adjustment. Before adjustment, preview the image of the camera on a monitor and then loosen the fixed ring to adjust the view angle of the camera. Fixed Ring Tilt 80° Pan 360° ⑥ Tighten the fixed ring after the adjustment. Web Operation and Login IP Scanner can search for the device on the local network.
- Page 8 O4VB2 5C:F2:07:24:28:9A ③ In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. You can also manually enter the IP address in the address bar of the web browser .
