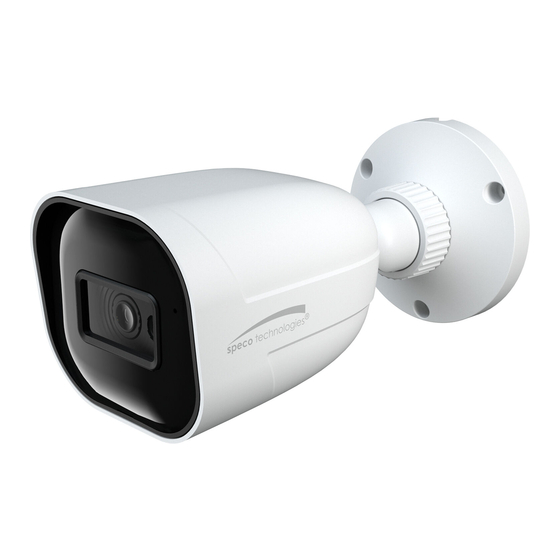

- Page 1 User Manual 4MP IP Camera O4VB2/ O4VB2G/ O4VB2M/ O4VD2/ O4VD2G / O4VD2M/ O4VT2/ O4VT2G/ O4VT2M Please read this manual carefully before operating the unit and keep it for further reference...
- Page 2 Important Safeguards and Warnings 1. Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 3 Statement This guide is for reference only. Product, manuals, and specifications may be modified without prior notice. Speco Technologies reserves the right to modify these without notice and without incurring any obligation. Speco Technologies is not liable for any loss caused by improper operation.
-
Page 4: Table Of Contents
Table of Contents Introduction ..........................................2 Web Access and Login ......................................3 Live View..........................................5 Camera Configuration ......................................7 System Configuration ................................7 4.1.1 System Information ..............................7 4.1.2 Date and Time ................................7 4.1.3 Local Recording ................................7 4.1.4 Storage .................................. - Page 5 Search ............................................ 34 Image Search ..................................34 Video Search ..................................36 5.2.1 Local Video Search ..............................36 5.2.2 SD Card Video Search..............................37 Appendix ............................................40 Appendix 1 Troubleshooting ......................................40...
-
Page 6: Introduction
Thank you for purchasing this network camera! Please read this manual carefully before operating the unit and retain it for further reference. Should you require any technical assistance, please contact Speco Technologies Technical Support at 1-800-645-5516. Main Features Built-in PoE (Power over Ethernet) ... -
Page 7: Web Access And Login
2 Web Access and Login The IP camera settings can be accessed via a web browser through the LAN. Available web browser: IE (plug-in required)/ Firefox/Edge/Safari/Google Chrome It is recommended to use the latest version of these web browsers. The menu display and operation of the camera may be slightly different by using the browser with plug-in or without plug-in. Installing plug-in will display more functions of the camera. - Page 8 If this is the first time for you to log in, the password prompt may only change the admin password. To change ONVIF password, you either have to check the “Match Onvif Password” box (if available) or go to the the ONVIF section to change the password. (ConfigNetworkPorts/ConnectionsOnvif)
-
Page 9: Live View
3 Live View The window below will be shown after logging in. The following table describes the icons on the live view interface Icon Description Icon Description Zoom/Focus control (for motorized Original size of resolution models) Fit (correct scale) Rule information display Auto (fill the window) SD card recording indicator Full screen (show video only) - Page 10 Icon Description Icon Description Zoom - Zoom + Focus - Focus + One key focus (used when image is out of focus after manual adjustment)
-
Page 11: Camera Configuration
4 Camera Configuration Press the “Setup” button to go to the configuration interface. Note: Wherever applicable, click the “Save” button to save the settings. 4.1 System Configuration 4.1.1 System Information In the “System Information” interface, the system information of the device is listed. 4.1.2 Date and Time To set the time and date, go to SystemDate and Time. -
Page 12: Storage
Additionally, the snapshots triggered by smart events (including face detection, line crossing detection and intrusion detection) can be selected to save to the local PC. Rendering Mode: High-efficient mode, compatible mode or low-efficient mode can be optional. If the performance of your computer is not compatible with the web client or your computer has no graphics card, low-efficient mode is suggested. - Page 13 Weekly schedule Set the alarm time from Monday to Sunday for a single week. Each day is divided in one-hour increments. Green means scheduled. Blank means unscheduled. “Add”: Add the schedule for a special day. Drag the mouse to set the time on the timeline. “Erase”: Delete the schedule.
-
Page 14: Video Configuration
same as the schedule recording (See Schedule Recording). 4.2 Video Configuration Video Configuration includes Image Settings, Video/Audio Setup, OSD, Privacy Mask and Region of Interest. 4.2.1 Image Configuration In the Image Settings interface as shown below, various settings can be adjusted, such as brightness, contrast, hue, and saturation and so on. -
Page 15: Video / Audio Configuration
seen clearly. HFR: High Frame Rate. If “ON” is selected, the system will restart and then the maximum value of the frame rate of the main stream can be set to 60 fps /50fps. Antiflicker: Off: disables the anti-flicker function. This is used mostly in outdoor installations. ... - Page 16 Three video streams can be adjustable. Resolution: The size of image. Frame rate: The higher the frame rate, the video is smoother. Bitrate type: CBR and VBR are optional. Bitrate is related to image quality. CBR means that no matter how much change is seen in the video scene, the compression bitrate will be kept constant.
-
Page 17: Osd Configuration
4.2.3 OSD Configuration Go to VideoOSD interface as shown below. Set time stamp, device name, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click the “Save” button to save the settings. 4.2.4 Video Mask Go to ImageVideo Mask interface as shown below. -
Page 18: Roi Configuration
Click the “Clear” button to delete the current video mask area. 4.2.5 ROI Configuration Go to ImageROI Config interface as shown below. An area in the image can be set as a region of interest. This area will have a higher bitrate than the rest of the image, resulting in better image quality for the identified area. -
Page 19: Alarm Setup
4.3 Alarm Setup 4.3.1 Motion Detection Go to AlarmMotion Detection to set motion detection alarm. 1. Check “Enable” check box to activate motion-based alarms. If unchecked, the camera will not send out any signals to trigger motion-based recording to the NVR or CMS, even if there is motion in the video. Alarm Holding Time: it refers to the interval time between the adjacent motion detections. -
Page 20: Other Alarms
Move the “Sensitivity” scroll bar to set the sensitivity. Higher sensitivity value means that motion will be triggered more easily. Select “Add” and click “Draw”. Drag the mouse to draw the motion detection area; Select “Erase” and drag the mouse to clear motion detection area. -
Page 21: Alarm Server
2. Click “Enable” and set the alarm holding time. 3. Set alarm trigger options. Trigger alarm out, Email and FTP. The setup steps are the same as motion detection. Please refer to motion detectionchapter for details. 4.3.3 Alarm Server Go to AlarmAlarm Server interface as shown below. Set the server address, port, heartbeat, and heartbeat interval. - Page 22 1. Enable object removal detection and then select the detection type. Enable Left Detection: Alarms will be triggered if there are items left in the pre-defined area. Enable Item Missing Detection: Alarms will be triggered if there are items missing in the pre-defined area. 2.
-
Page 23: Exception
8. Adequate light and clear scenery are very important to object removal detection. 4.4.2 Exception This function can detect changes in the surveillance environment affected by the external factors. Go to EventException interface as shown below. 1. Enable the applicable detection that is desired. Scene Change Detection: Alarms will be triggered if the scene of the video has changed. -
Page 24: Line Crossing
4.4.3 Line Crossing Line Crossing: Alarms will be triggered if the target crosses the defined alarm lines. Go to EventLine Crossing interface as shown below. 1. Enable line crossing alarm. 2. Set the alarm holding time. 3. Set alarm trigger options. The setup steps are the same as motion detection. Please refer to motion detection section for details. -
Page 25: Intrusion
of the scenes shouldn’t be too low. 3. Cameras should be mounted at a height of 10ft or above. 4. Keep the mounting angle of the camera at about 45°. 5. The detected objects should not be less than 1% of the entire image and the largest sizes of the detected objects should not be more than 1/8 of the entire image. -
Page 26: Network Configuration
1. Auto-focusing function should not be enabled for intrusion detection. 2. Avoid the scenes with many trees or the scenes with various light changes (like many flashing headlights). The ambient brightness of the scenes shouldn’t be too low. 3. Cameras should be mounted at a height of 10ft or above. 4. -
Page 27: Port
Trigger Email: when the IP address of the device is changed, the new IP address will be sent to the email address that has been set Trigger FTP: when the IP address of the device is changed, the new IP address will be sent to FTP server that has been set up. 4.5.2 Port Go to NetworkPorts/Connections as shown below. -
Page 28: Onvif
4.5.4 Onvif The camera can be searched and connected to the third-party platform via ONVIF/RTSP protocol. Note: when adding the device to the third-party platform with ONVIF/RTSP protocol, please enter the username and password created in the above interface. 4.5.5 DDNS If the camera is set up with a DHCP connection, DDNS should be set for accessing the camera from the internet. -
Page 29: 802.1X
2. Check the corresponding version checkbox (Enable SNMPv1, Enable SNMPv2, Enable SNMPv3) according to the version of the SNMP software that will be used. 3. Set the values for “Read SNMP Community”, “Write SNMP Community”, “Trap Address”, “Trap Port” and so on. Please make sure the settings are the same as that of the SNMP software. -
Page 30: Rtsp
authentication system to identify the device in a local network. If the camera connected to the network interface of the switch has passed the authentication of the switch, it can be accessed via the local network. Protocol type and EAPOL version: Please use the default settings. User name and password: The user name and password must be the same with the user name and password applied for and registered in the authentication server. -
Page 31: Ftp
Sender Address: sender’s e-mail address. User name and password: sender’s user name and password (you don’t have to enter the username and password if “Anonymous Login” is enabled). Server Address: The SMTP IP address or host name. Select the secure connection type at the “Secure Connection” pull-down list according to what’s required. SMTP Port: The SMTP port. -
Page 32: Https
Port: The port of the FTP server. Use Name and Password: The username and password that are used to login to the FTP server. 4.5.12 HTTPS HTTPs provides authentication of the web site and protects user privacy. Go to NetworkHTTPS as shown below. There is a certificate installed by default as shown above. -
Page 33: Qos
Click “Create” to create the certificate request. Then download the certificate request and submit it to the trusted certificate authority for signature. After receiving the signed certificate, import the certificate to the device. 4.5.13 QoS QoS (Quality of Service) function is used to provide different quality of services for different network applications. With the deficient bandwidth, the router or switch will sort the data streams and transfer them according to their priority to solve the network delay and network congestion by using this function. - Page 34 2. Enter user name in “User Name” textbox. 3. Enter letters or numbers in “Password” and “Confirm Password” textbox. Please set the password according to the requirement of the password security level (Go to SetupSecuritySecurity ManagementPassword Security interface to set the security level). 4.
-
Page 35: Online User
6. Click the “OK” button to save the settings. Note: To change the access level of a user, the user must be deleted and added again with the new access level. Delete user: 1. Select the user to be deleted in the user configuration list box. 2. -
Page 36: Maintenance Configuration
Logout time: Set the logout time as needed. For example: 3600s, you will be automatically logged out after 3600s and then you need to enter the username and password again to log in. Password Security Please set the password level and expiration time as needed. Password Level: Weak, Medium or Strong. -
Page 37: Reboot
4.7.2 Reboot Go to MaintenanceReboot. Click the “Reboot” button to reboot the device. Timed Reboot Setting: If necessary, the camera can be set up to reboot on a time interval. Enable “Time Settings”, set the date and time and then click the “Save”... -
Page 38: Search
5 Search 5.1 Image Search In the Setup interface, click Search to go to the interface as shown below. Images that are saved on the PC or SD card can be found here. Local Image Search 1. Choose “Picture”—“Local”. 2. - Page 39 Click to return to the previous interface. SD Card Image Search 1. Choose “Picture”—“SD Card”. 2. Set time: Select date and choose the start and end time. 3. Choose the alarm events at the bottom of the interface. 4. Click to search the images.
-
Page 40: Video Search
Icon Description Icon Description Close: Select an image and click Close all: Click this button to close all this button to close the image. images. Save: Click this button to select the Save all: Click this button to select the path for saving the image on the path for saving all pictures on the PC. -
Page 41: Sd Card Video Search
Icon Description Icon Description Play button. After pausing the video, Pause button click this button to continue playing. Stop button Speed down Speed up Watermark display Enable / disable audio; drag the slider to adjust the volume after enabling audio. 5.2.2 SD Card Video Search Click Search to go to the interface as shown below. - Page 42 4. Select the alarm events at the bottom of the interface. 5. Select mix stream (video and audio stream) or video stream as needed. 6. Double click on a file name in the list to start playback. The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and downloading 1.
- Page 43 Click “Set up” to set the storage directory of the video files. Click “Open” to play the video. Click “Clear List” to clear the downloading list. Click “Close” to close the downloading window.
-
Page 44: Appendix
Appendix Appendix 1 Troubleshooting IP Scanner does not show any device. Make sure that the PC that’s running IP Scanner is on the same local network as the devices. Internet Explorer cannot download ActiveX control. IE browser may be set up to block ActiveX. Follow the steps below. 1. - Page 45 Models: O4VB2/ O4VB2G/ O4VB2M/ O4VD2/ O4VD2G / O4VD2M/ O4VT2/ O4VT2G/ O4VT2M Federal Communications Commission (FCC) Statements This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
