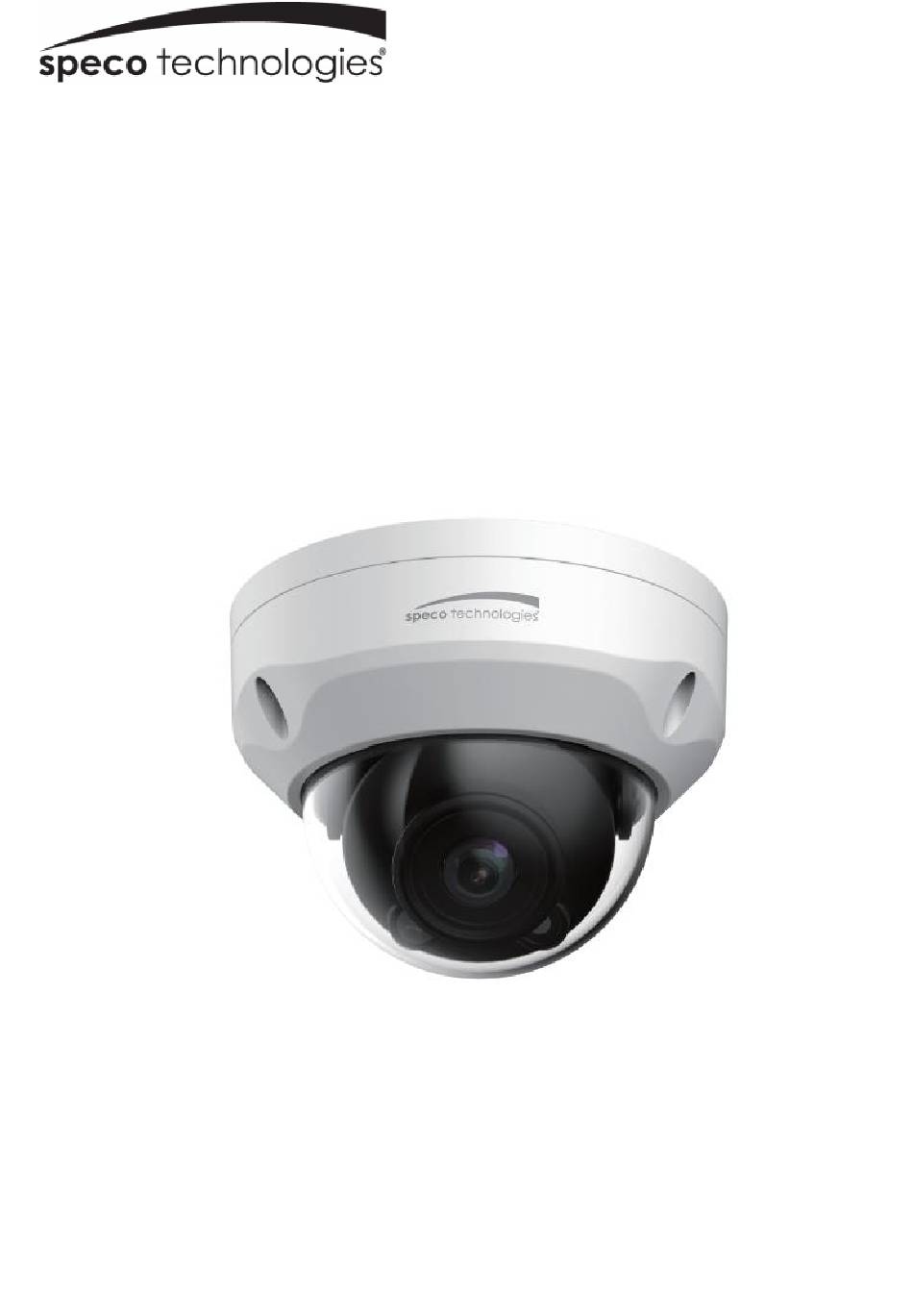

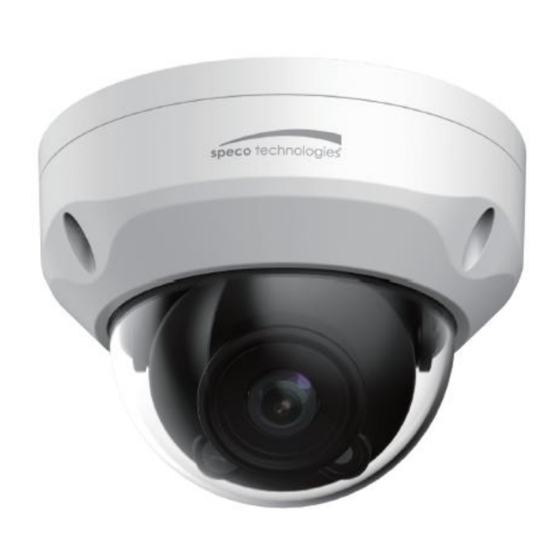

- Page 1 Quick Start Guide 4MP VF Motorized Dome IP Came ra O4VFDM Version 1.0.0...
- Page 2 Thank you for purchasing this Network camera! This manual is designed to be a reference tool for your system. Please read this manual carefully before operating the unit and retain it for future reference. Should you require any technical assistance, please contact Speco Technologies Technical Support.
- Page 3 Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to local electrical safety codes. Use a certified/listed 12VDC Class 2 power supply only. Please note: Do not connect two power supplying sources to the device at the same time; it may result in device damage! The product must be grounded to reduce the risk of electric shock.
- Page 4 Speco Technologies is not liable for any loss caused by improper operation. Note: Before installation, check the package and make sure that all components are included. Contact your rep or Speco customer service department immediately if something is broken or missing in the package. Accessory Name...
-
Page 5: Table Of Contents
Table of Contents Physical Specifications ..................1 Components ............................1 Dimensions ............................2 Device Installation ................... 3 Installation Steps ..........................3 IP Scanner ....................... 7 Overview ............................7 Operation ............................7 Web Operation ....................8 Login and Main Interface ........................8... -
Page 6: Physical Specifications
1 Physical Specifications 1.1 Components Note: The following figure is for reference only, which is used to indicate the components and the functions. Refer to the following figure for component structure. See Figure 1-1. Figure 1-1 Component structure Please refer to the following table for detailed information. Port Port Name Note... -
Page 7: Dimensions
1.2 Dimensions Please refer to the following figure for dimension information. The unit is in mm. See Figure1-2. Figure 1-2 Dimensions... -
Page 8: Device Installation
2 Device Installation 2.1 Installation Steps Note: Before installation, please make sure the installation surface can support a minimum of 3 times the weight of the camera Please cut off the device power and turn off the device before installing Micro SD card. Figure 2-1 Motorized Varifocal Camera Step 1 Use inner hex wrench in the accessories bag to open dome enclosure by unfastening three inner... - Page 9 Figure 2-2 Note: Press the “Reset” button shown in Figure 2-2 for 10 seconds when the device is powered on if the device needs to be restored to factory default setting. 1. Find the micro SD card slot and open slot according to the direction shown in Figure 2-3. Figure 2-3 2.
- Page 10 Note: If user pulls out cable from top of installation surface, you must dig an exit hole on installation surface according to the installation template. If user pulls out cable from side of cable channel, it must go through the U-shape channel on dome pedestal, and take out cable from the side exit hole on pedestal.
- Page 11 Figure 2-5 1. Keep the convex groove outward and install the rubber ring into the network port, keep the smaller hole of the rubber ring outward and install the fixing rubber ring into the main body of the waterproof connector. 2.
-
Page 12: Ip Scanner
3 IP Scanner 3.1 Overview IP Scanner can search for the device on the local network. Please note that only devices that are on the same subnet can be discovered. 3.2 Operation Open up IP Scanner. Figure 3-1 In the device list, you can view the IP address, model number, and MAC address of each device. Select the applicable device and double click to open up the web viewer. -
Page 13: Web Operation
4 Web Operation This device supports viewing and management via a web browser on a PC. 4.1 Login and Main Interface Open the browser and input network camera address in the address bar or double click the device in IP Scanner. See Figure 4- 1. Input your IP address here Figure 4- 1 IP address...
