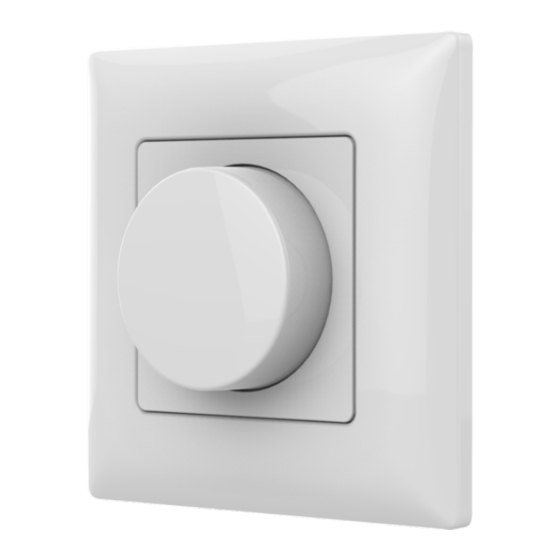

AC Triac Rotar y Panel Dimmer
Model No.: KS
Rotary dimming/Leading edge or trailing edge/Min brightness settable/Wireless remote control
Features
● Rotar y panel AC phase-cut dimmer, 1 channel output.
● To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
● Rotate knob to change brightness, support push and long push operation.
● Leading edge dimming or trailing edge dimming set by dip switch.
● Min brightness can be set by key.
● Compatibility with
Skydance's 2.4G dimming remote control
Technical Parameters
Input and Output
Input voltage
Output voltage
Output current
Output power
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Certification
User Manual Ver 1.0.2
AC100-240V
AC100-240V
Max 1A
100-240W
EN 55015:2013
EN 61547:2009
EN 61000-3-2:2014
EN 61000-3-3:2013
EN 61347-2-11:2002
EN 61347-1:2015
EN 62493:2015
CE,EMC,LVD
www.iskydance.com
.
Dimming data
Input signal
RF Control distance
Dimming level
Dimming range
Environment
Operation temperature
Case temperature
Max.
(
)
IP rating
Warranty
Warranty
LVD
Rotary knob + RF 2.4GHz
30m
256 levels
0 - 100%
O
O
Ta: -30
C ~ +55
C
O
T c: +85
C
IP20
5 years
Page 1
Advertisement
Related Manuals for SKYDANCE KS
Summary of Contents for SKYDANCE KS
- Page 1 ● Rotate knob to change brightness, support push and long push operation. ● Leading edge dimming or trailing edge dimming set by dip switch. ● Min brightness can be set by key. ● Compatibility with Skydance’s 2.4G dimming remote control Technical Parameters Input and Output Dimming data...
- Page 2 AC L output Wiring diagram Caution: Please carefully ensure all wire connections and polarities are correct and secure before applying power, otherwise this controller will be damaged. ● KS connect with dimmable LED light OUTPUT INPUT Dimmable LED light AC100-240V Input...
- Page 3 AC Triac Rotar y Panel Dimmer ● KS connect with dimmable LED driver OUTPUT INPUT AC100-240V Input LED light Triac Dimmable LED Driver AC100-240V Output Note: When calculating the maximum number of load lamps or drivers, the input power or input current parameters of a single lamp or driver must be used, the output power parameters can not be used, other wise, the product will be overloaded and damaged.
- Page 4 AC Triac Rotar y Panel Dimmer Min brightness setting Long press Min set key for 2s, the light blink 2 times, ready for min brightness set, then short press Min set key 1-6 times, to get 6 min brightness: 5%, 10%, 15%, 20%, 25% or 30%, the light will output the current min brightness immediately , Long press Min set key for 2s or wait 8s, quit min brightness set, the light will output 100% brightness automatically.
