Advantage Controls MegaTron Quick Steps page 2

Additional Troubleshooting:

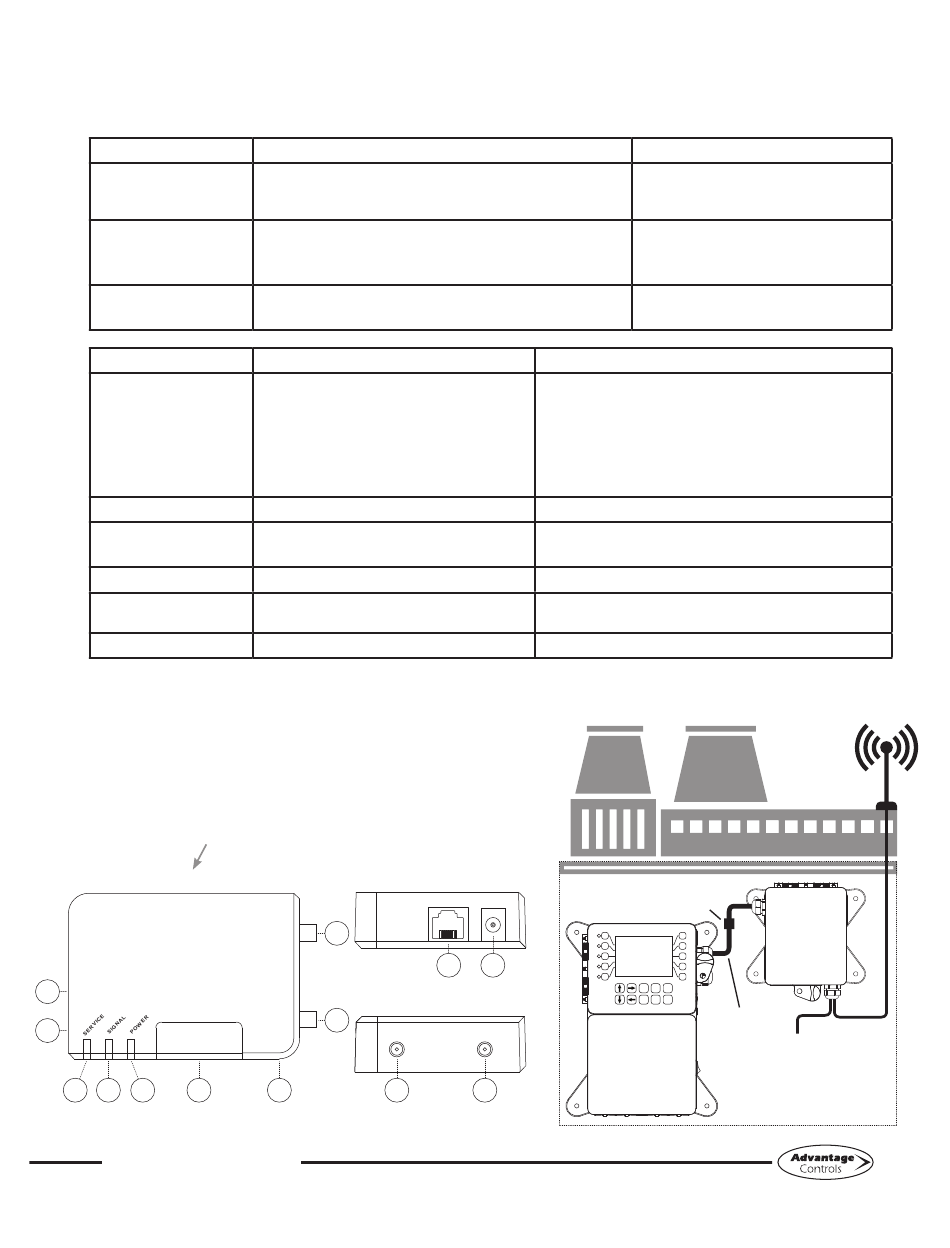

Open front panel of ROUTER-3 to reveal connections and LED lights.
LED
A - Service LED
B - Signal LED
C - Power LED
General
D - WWAN PRI
E - WWAN SEC
F - Ethernet
G - Power Cord
H - SIM Card Tray
I - Reset (Pin Hole)
Note:
Please have ID number available when calling in for
troubleshooting. This allows us to identify the specific
line and carrier.
The ID number can be found inside of the ROUTER-3
enclosure, attached to the top of the cell router.
CELL ROUTER - TOP
ROUTER CYCLES
WITH POWER RESTORE
ACCESSING INTERNAL PARTS
MAY VOID WARRANTY
F
G
A B C H
Get the Advantage
Description
Indicates LTE interface availability and use.
* Allow up to 5 minutes for the connections to
WebAdvantage & the cellular network to be established.
Indicates strength of cellular signal.
Device power indicator.
Description
Antenna Connection
* Antenna wire length approx. 9 ft.
Not used
CAT5 connection to controller.
* Only use supplied power cord.
Mini-SIM (2FF)
* Only use #1 SIM card slot.
Not used
LEFT SIDE
ETHERNET
D
WWAN
PRI
RIGHT SIDE
E
WWAN
SEC
WWAN
SEC
I E
- Ensure cable is properly threaded.
- Check for frayed or damaged wire.
- Move to location optimal for cell reception.
- Do not splice antenna wire to extend length.
Instead, extend CAT5 up to 328 ft. max.
CAT5 can be extended up to 328 ft. before
signal repeater is required.
POWER
1
2
3
F G
4
5
WWAN
PRI
Controller
D
Off = No Cellular Service
(6) Blinks = LTE mode
Off = Poor or No Signal
Amber = Fair
Green = Good
Off = No Power
Green = Powered
Position cell antenna
for best possible
reception.
CAT5
COUPLER
ROUTER-3
6
7
8
9
0
SET UP
ENTER HOME
RUN
CANCEL HELP BACK
Max 328 ft.
(total length)
POWER
