Technical specifications

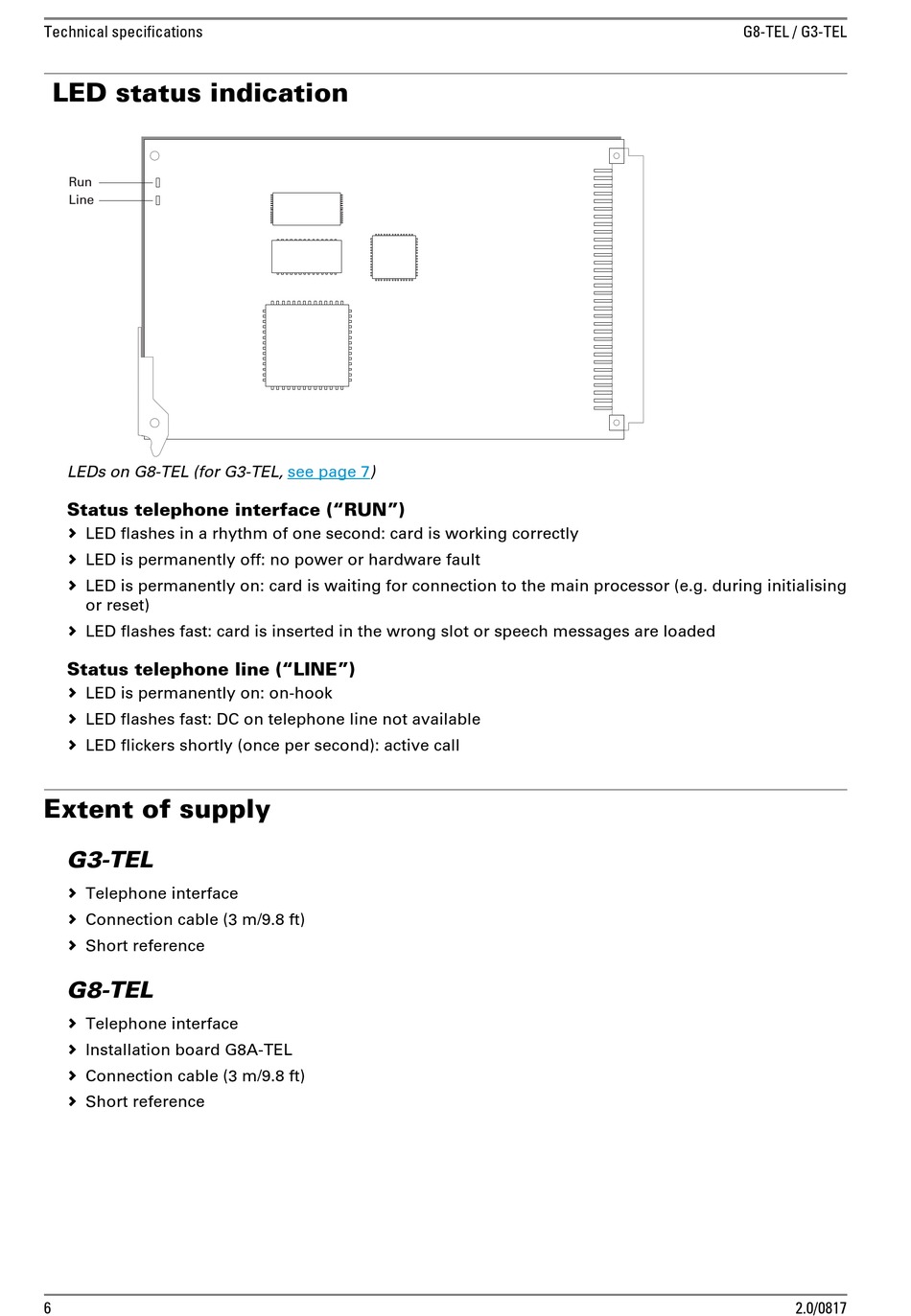

LED status indication

Run
Line
LEDs on G8-TEL (for G3-TEL,
Status telephone interface ("RUN")
 LED flashes in a rhythm of one second: card is working correctly
 LED is permanently off: no power or hardware fault
 LED is permanently on: card is waiting for connection to the main processor (e.g. during initialising
or reset)
 LED flashes fast: card is inserted in the wrong slot or speech messages are loaded
Status telephone line ("LINE")
 LED is permanently on: on-hook
 LED flashes fast: DC on telephone line not available
 LED flickers shortly (once per second): active call

Extent of supply

G3-TEL
 Telephone interface
 Connection cable (3 m/9.8 ft)
 Short reference
G8-TEL
 Telephone interface
 Installation board G8A-TEL
 Connection cable (3 m/9.8 ft)
 Short reference
6
see page 7)
G8-TEL / G3-TEL
2.0/0817
