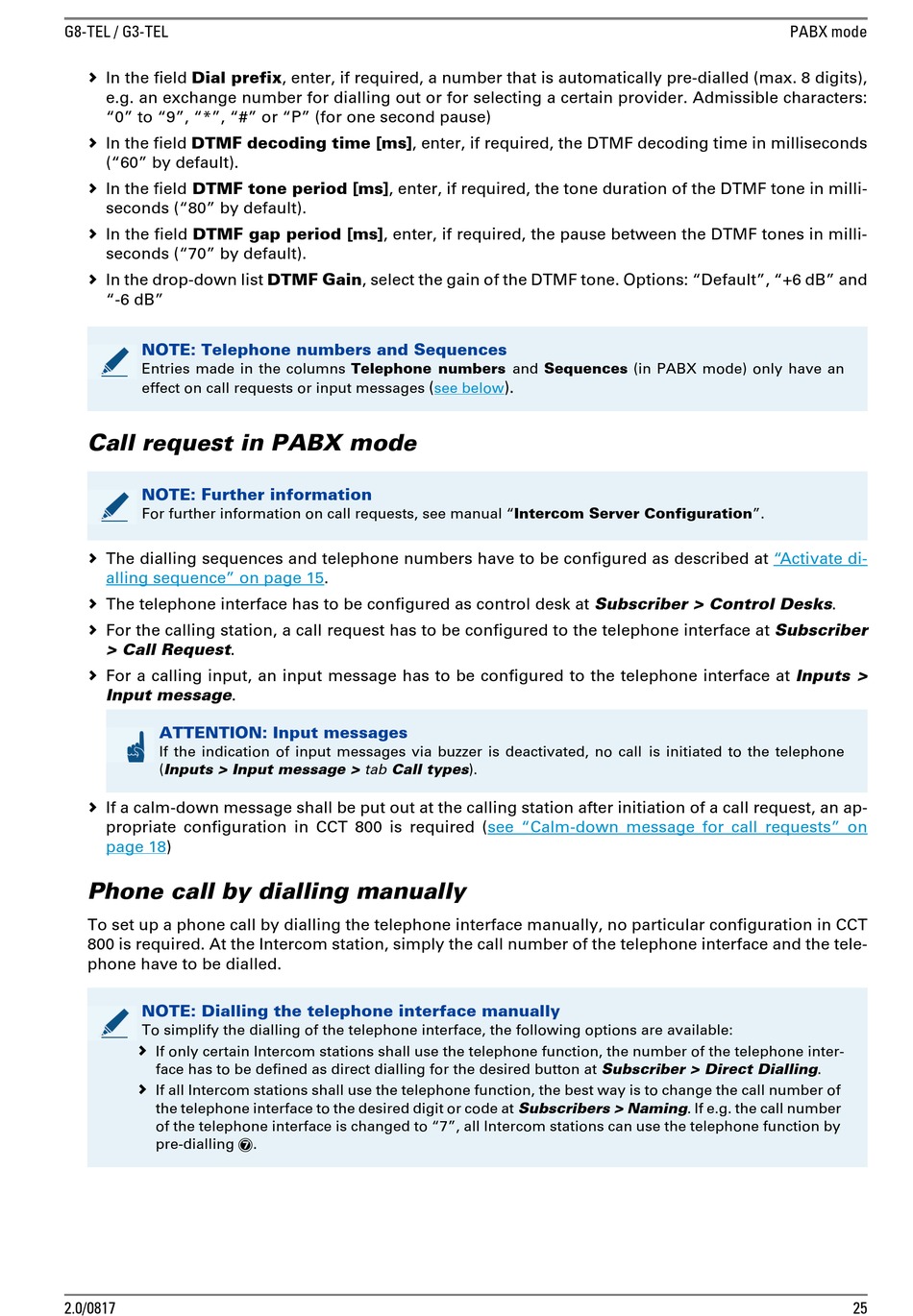

Commend C-G3-TEL Product Manual page 25

G8-TEL / G3-TEL
 In the field Dial prefix, enter, if required, a number that is automatically pre-dialled (max. 8 digits),
e.g. an exchange number for dialling out or for selecting a certain provider. Admissible characters:
"0" to "9", "*", "#" or "P" (for one second pause)
 In the field DTMF decoding time [ms], enter, if required, the DTMF decoding time in milliseconds
("60" by default).
 In the field DTMF tone period [ms], enter, if required, the tone duration of the DTMF tone in milli-
seconds ("80" by default).
 In the field DTMF gap period [ms], enter, if required, the pause between the DTMF tones in milli-
seconds ("70" by default).
 In the drop-down list DTMF Gain, select the gain of the DTMF tone. Options: "Default", "+6 dB" and
"-6 dB"
NOTE: Telephone numbers and Sequences
Entries made in the columns Telephone numbers and Sequences (in PABX mode) only have an
effect on call requests or input messages
Call request in PABX mode
NOTE: Further information
For further information on call requests, see manual "Intercom Server Configuration".
 The dialling sequences and telephone numbers have to be configured as described at
alling sequence" on page
 The telephone interface has to be configured as control desk at Subscriber > Control Desks.
 For the calling station, a call request has to be configured to the telephone interface at Subscriber
> Call Request.
 For a calling input, an input message has to be configured to the telephone interface at Inputs >
Input message.
ATTENTION: Input messages
If the indication of input messages via buzzer is deactivated, no call is initiated to the telephone
(Inputs > Input message > tab Call types).
 If a calm-down message shall be put out at the calling station after initiation of a call request, an ap-
propriate configuration in CCT 800 is required
page 18)
Phone call by dialling manually
To set up a phone call by dialling the telephone interface manually, no particular configuration in CCT
800 is required. At the Intercom station, simply the call number of the telephone interface and the tele-
phone have to be dialled.
NOTE: Dialling the telephone interface manually
To simplify the dialling of the telephone interface, the following options are available:
 If only certain Intercom stations shall use the telephone function, the number of the telephone inter-
face has to be defined as direct dialling for the desired button at Subscriber > Direct Dialling.

If all Intercom stations shall use the telephone function, the best way is to change the call number of
the telephone interface to the desired digit or code at Subscribers > Naming. If e.g. the call number
of the telephone interface is changed to "7", all Intercom stations can use the telephone function by
pre-dialling 7.
2.0/0817
(
see below
15.
).
(see "Calm-down message for call requests" on
PABX mode
"Activate di-
25
