INSTALLATION MANUAL
MODEL CAT
01
The CAT01 is a high output distribution amplifi er specially designed to distribute TV signal over CAT5/6 cable.
The amplifi er has four separate RJ45 outputs each with an individual gain control. The amplifi er also has an
overall gain and tilt control.
INSTALLATION
Connect the RF signal to the RF input of the amplifi er.
Note: If the input signal is to low it may be necessary to install a pre- amplifi er
(MDA20H and KPS06 power supply).
Connect the DC power supply to the DC input socket.
Make an overall loss calculation for each of the CAT5 cables to be connected, the loss per 10 metres is
approximately 6 dB (CAT6 @ 700 MHz). Adjust the respective output gain controls to compensate for losses
in the cable.
Connect CAT5/6 patch cables to the outputs of the CAT01.
Note: Ensure to leave the terminators in place on any ports that are not to be used.
Adjust the overall gain and tilt controls to the required output.
Connect your television to the RJ45 wall socket which has been fed RF signal via the CAT01 using a KLE02
Balun transformer cable. Repeat for all televisions you wish to connect to the CAT01.
Once all televisions are connected fi ne adjust the output gain controls if required for optimum performance.
RECOMMENDED SIGNAL LEVELS dBuV
Number of channels
Min input level dBuV
Min output level dBuV
Max output level

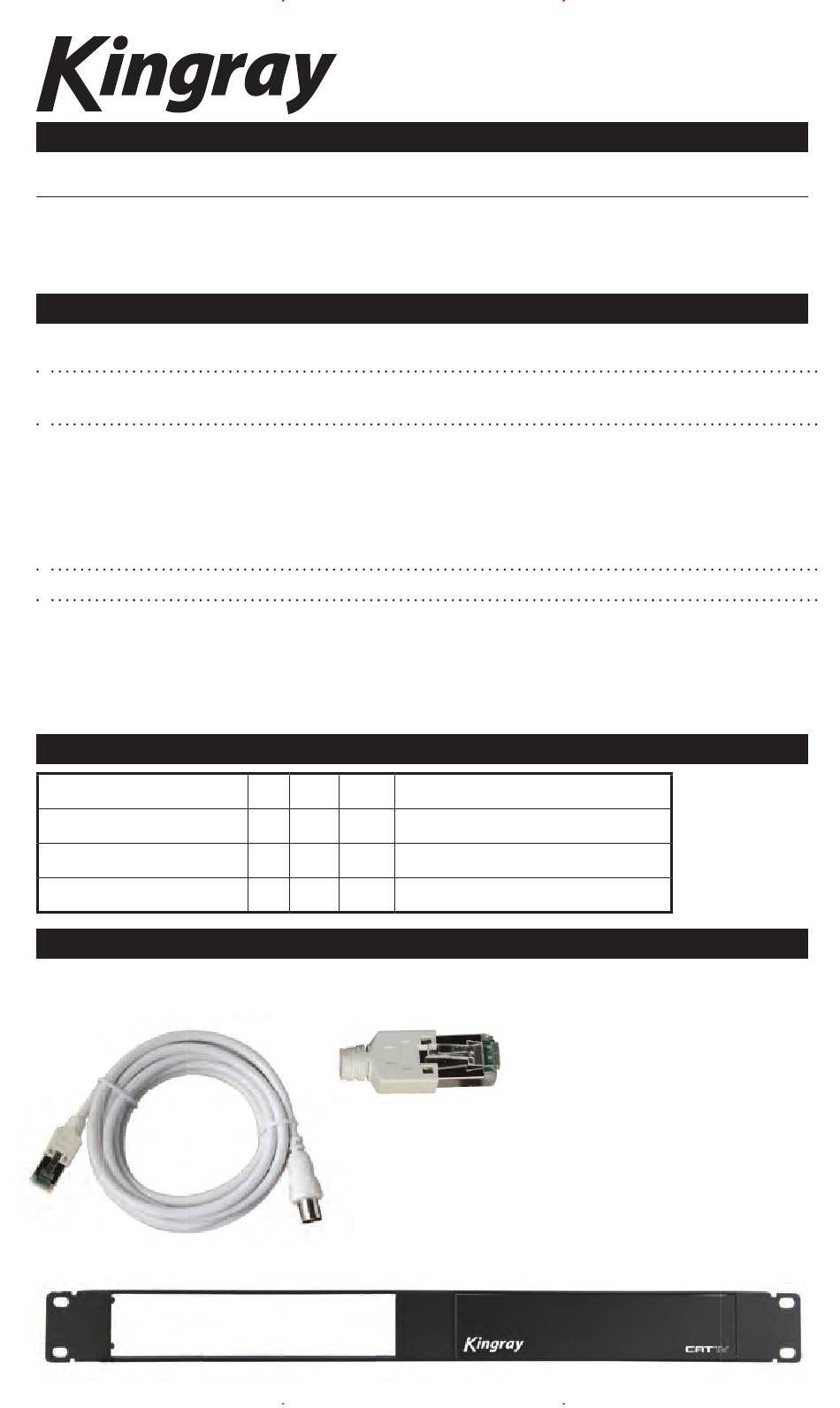

ACCESSORIES
KLE02 Balun transformer cable
Specialists in TV signal amplifi cation
TV OVER CAT5 DISTRIBUTION AMPLIFIER
42 10 2
63 63 63
87 87 87
96 102 111
Terminator PL041

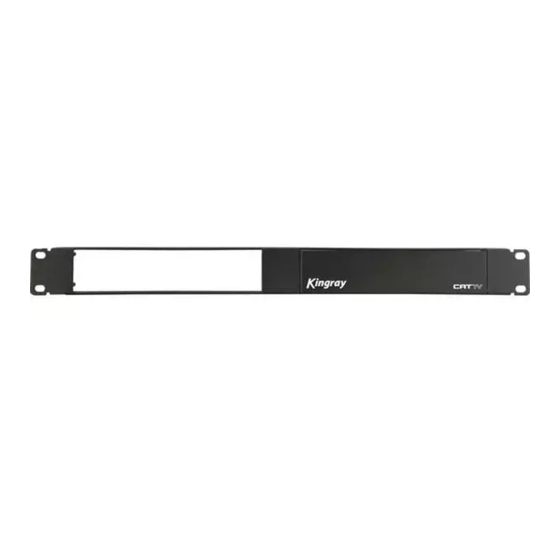

19" mounting panel with blanking plate KB02
Measurement location
Input RF signal
KLE02 connected to output
KLE02 connected to output
