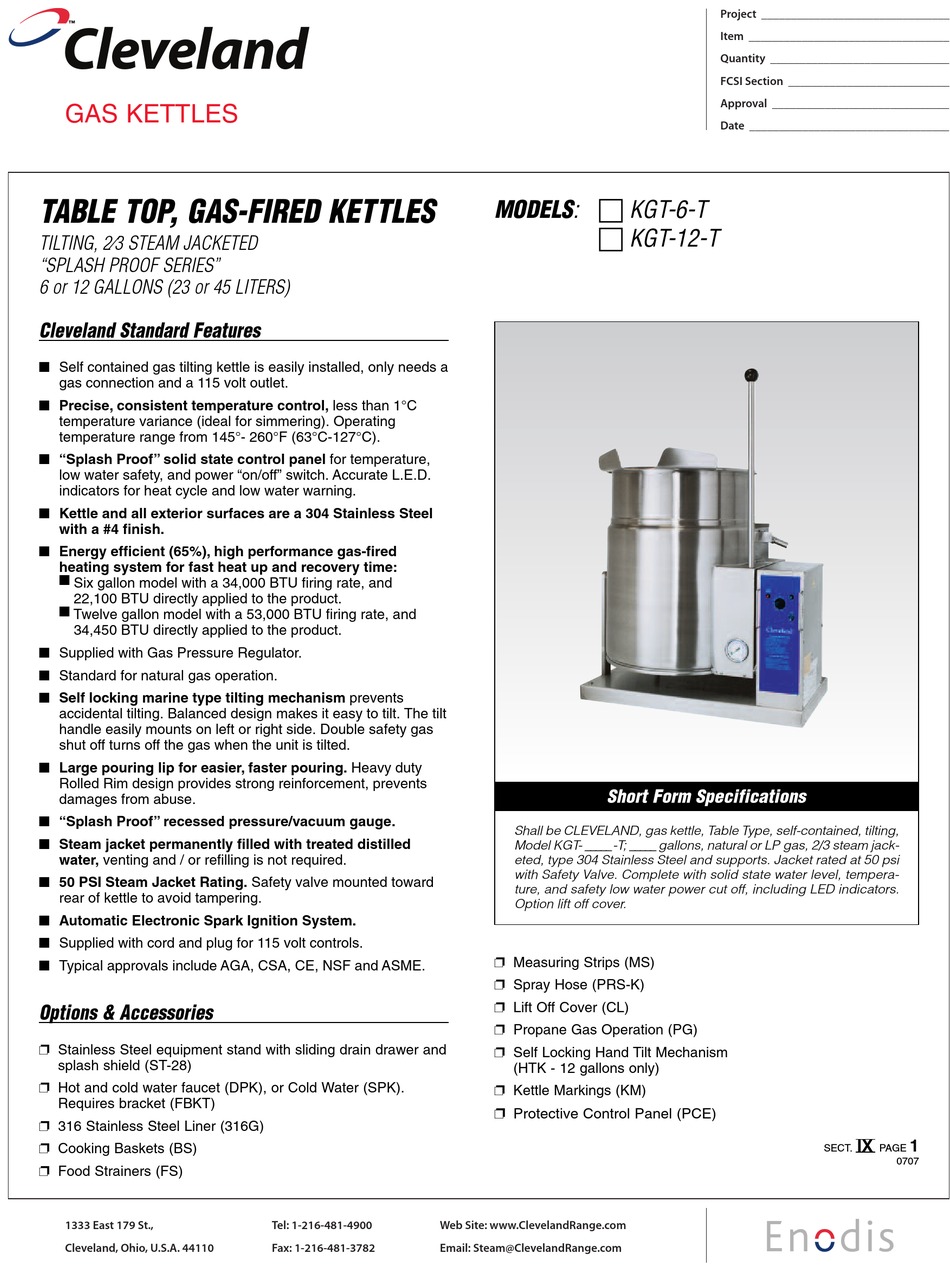

Cleveland KGT-12-T Specifications

™
Cleveland
GAS KETTLES

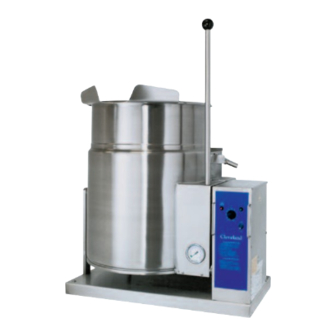

TABLE TOP, GAS-FIRED KETTLES
TILTING, 2⁄3 STEAM JACKETED
"SPLASH PROOF SERIES"
6 or 12 GALLONS (23 or 45 LITERS)
Cleveland Standard Features
I Self contained gas tilting kettle is easily installed, only needs a
gas connection and a 115 volt outlet.
I Precise, consistent temperature control, less than 1°C
temperature variance (ideal for simmering). Operating
temperature range from 145°- 260°F (63°C-127°C).
I "Splash Proof" solid state control panel for temperature,
low water safety, and power "on/off" switch. Accurate L.E.D.
indicators for heat cycle and low water warning.
I Kettle and all exterior surfaces are a 304 Stainless Steel
with a #4 finish.
I Energy efficient (65%), high performance gas-fired
heating system for fast heat up and recovery time: I Six gallon model with a 34,000 BTU firing rate, and
I
I Twelve gallon model with a 53,000 BTU firing rate, and 22,100 BTU directly applied to the product.
I
34,450 BTU directly applied to the product.
I Supplied with Gas Pressure Regulator.
I Standard for natural gas operation.
I Self locking marine type tilting mechanism prevents
accidental tilting. Balanced design makes it easy to tilt. The tilt
handle easily mounts on left or right side. Double safety gas
shut off turns off the gas when the unit is tilted.
I Large pouring lip for easier, faster pouring. Heavy duty
Rolled Rim design provides strong reinforcement, prevents
damages from abuse.
I "Splash Proof" recessed pressure/vacuum gauge.
I Steam jacket permanently filled with treated distilled
water, venting and / or refilling is not required.
I 50 PSI Steam Jacket Rating. Safety valve mounted toward
rear of kettle to avoid tampering.
I Automatic Electronic Spark Ignition System.
I Supplied with cord and plug for 115 volt controls.
I Typical approvals include AGA, CSA, CE, NSF and ASME.
Options & Accessories
Ë Stainless Steel equipment stand with sliding drain drawer and
splash shield (ST-28)
Ë Hot and cold water faucet (DPK), or Cold Water (SPK).
Requires bracket (FBKT)
Ë 316 Stainless Steel Liner (316G)
Ë Cooking Baskets (BS)
Ë Food Strainers (FS)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: KGT-6-T
KGT-12-T
Short Form Specifications
Shall be CLEVELAND, gas kettle, Table Type, self-contained, tilting,
Model KGT- _____ -T; _____ gallons, natural or LP gas, 2/3 steam jack-
eted, type 304 Stainless Steel and supports. Jacket rated at 50 psi
with Safety Valve. Complete with solid state water level, tempera-
ture, and safety low water power cut off, including LED indicators.
Option lift off cover.
Ë Measuring Strips (MS)
Ë Spray Hose (PRS-K)
Ë Lift Off Cover (CL)
Ë Propane Gas Operation (PG)
Ë Self Locking Hand Tilt Mechanism
(HTK - 12 gallons only)
Ë Kettle Markings (KM)
Ë Protective Control Panel (PCE)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
IX
SECT. PAGE
0707
1
