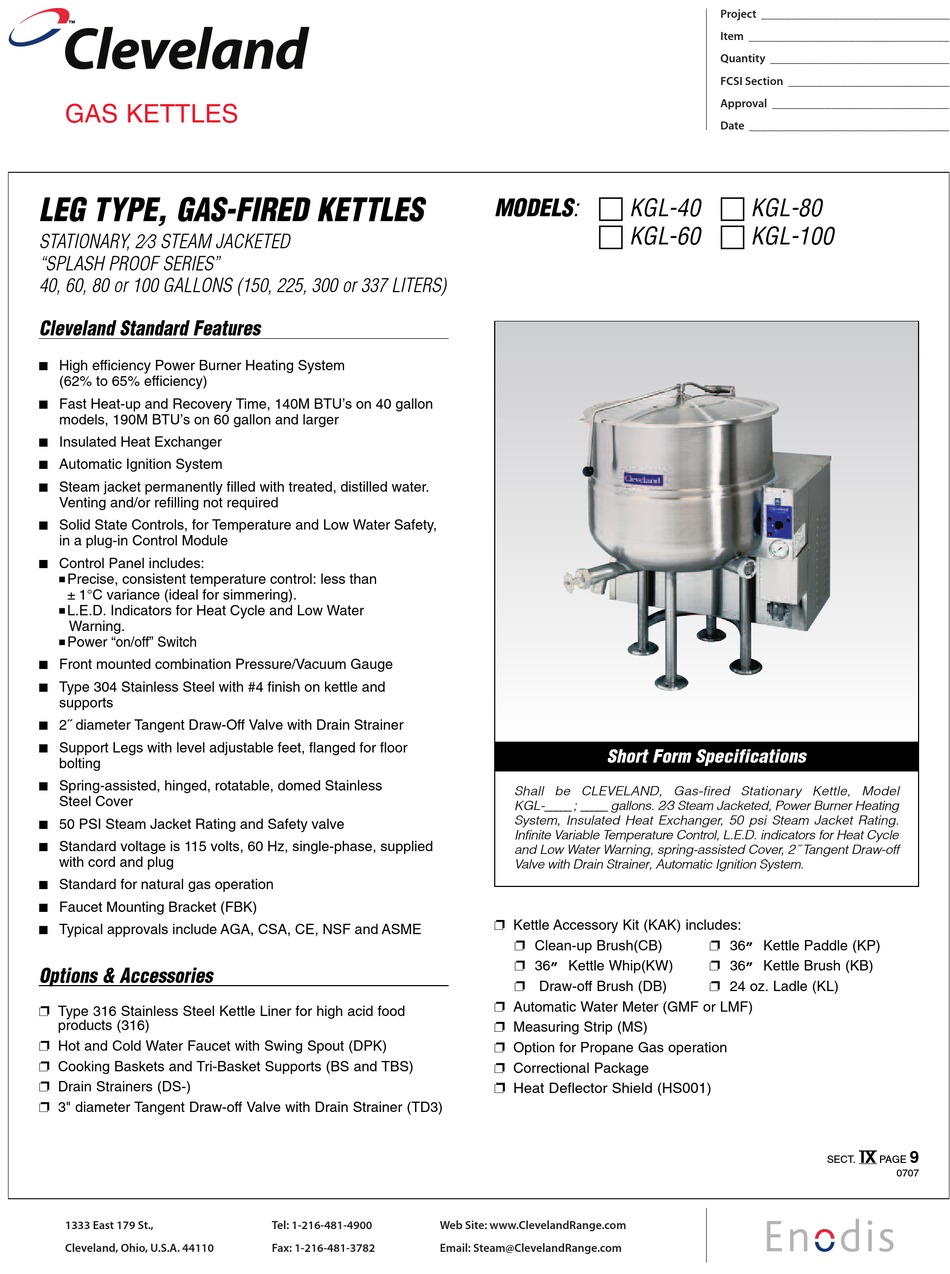

Cleveland KGL-100 Specifications

™
Cleveland
GAS KETTLES

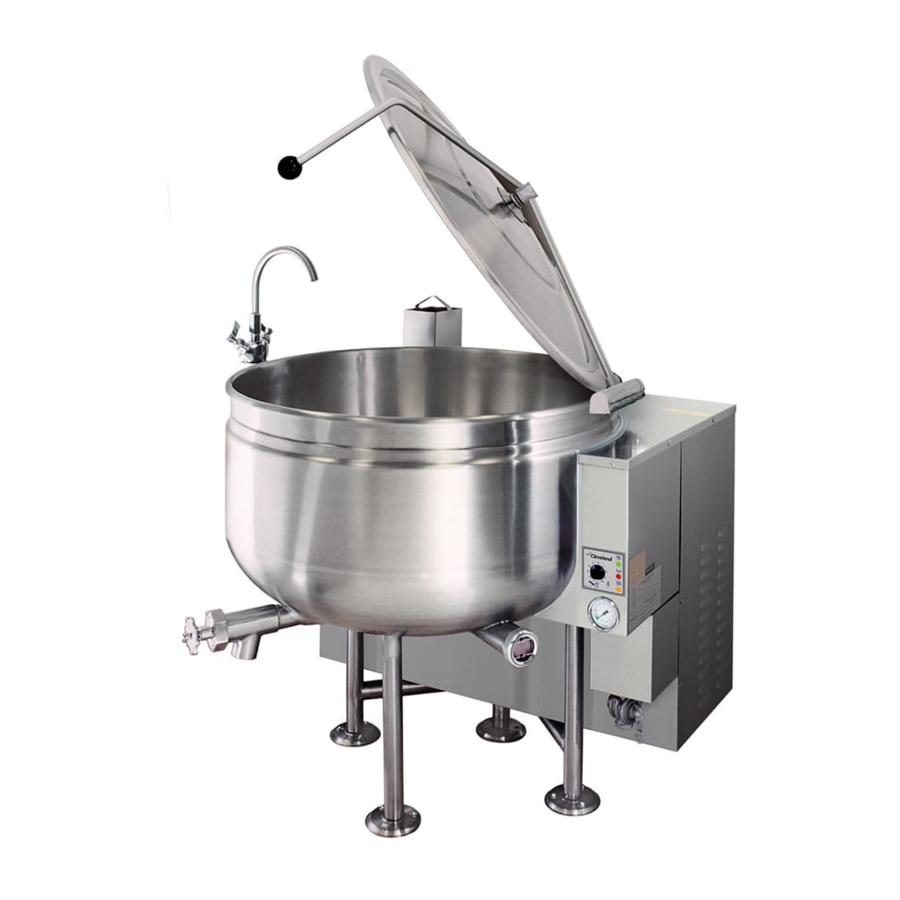

LEG TYPE, GAS-FIRED KETTLES
STATIONARY, 2⁄3 STEAM JACKETED
"SPLASH PROOF SERIES"
40, 60, 80 or 100 GALLONS (150, 225, 300 or 337 LITERS)
Cleveland Standard Features
I
High efficiency Power Burner Heating System
(62% to 65% efficiency)
I
Fast Heat-up and Recovery Time, 140M BTU's on 40 gallon
models, 190M BTU's on 60 gallon and larger
I
Insulated Heat Exchanger
I
Automatic Ignition System
I
Steam jacket permanently filled with treated, distilled water.
Venting and/or refilling not required
I
Solid State Controls, for Temperature and Low Water Safety,
in a plug-in Control Module
I
Control Panel includes:
I
Precise, consistent temperature control: less than
I
± 1°C variance (ideal for simmering).
I
L.E.D. Indicators for Heat Cycle and Low Water
I
Warning.
I
Power "on/off" Switch
I
Front mounted combination Pressure/Vacuum Gauge
I
Type 304 Stainless Steel with #4 finish on kettle and
supports
I
2˝ diameter Tangent Draw-Off Valve with Drain Strainer
I
Support Legs with level adjustable feet, flanged for floor
bolting
I
Spring-assisted, hinged, rotatable, domed Stainless
Steel Cover
I
50 PSI Steam Jacket Rating and Safety valve
I
Standard voltage is 115 volts, 60 Hz, single-phase, supplied
with cord and plug
I
Standard for natural gas operation
I
Faucet Mounting Bracket (FBK)
I
Typical approvals include AGA, CSA, CE, NSF and ASME
Options & Accessories
Ë Type 316 Stainless Steel Kettle Liner for high acid food
products (316)
Ë Hot and Cold Water Faucet with Swing Spout (DPK)
Ë Cooking Baskets and Tri-Basket Supports (BS and TBS)
Ë Drain Strainers (DS-)
Ë 3" diameter Tangent Draw-off Valve with Drain Strainer (TD3)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: KGL-40
KGL-60
Short Form Specifications
Shall be CLEVELAND, Gas-fired Stationary Kettle, Model
KGL-_____ ; _____ gallons. 2⁄3 Steam Jacketed, Power Burner Heating
System, Insulated Heat Exchanger, 50 psi Steam Jacket Rating.
Infinite Variable Temperature Control, L.E.D. indicators for Heat Cycle
and Low Water Warning, spring-assisted Cover, 2˝ Tangent Draw-off
Valve with Drain Strainer, Automatic Ignition System.
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush(CB)
Ë 36" Kettle Whip(KW)
Ë Draw-off Brush (DB)
Ë Automatic Water Meter (GMF or LMF)
Ë Measuring Strip (MS)
Ë Option for Propane Gas operation
Ë Correctional Package
Ë Heat Deflector Shield (HS001)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
KGL-80
KGL-100
Ë 36" Kettle Paddle (KP)
Ë 36" Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
IX
SECT. PAGE
9
0707
