Cleveland KGL-40-TSH Specifications

™
Cleveland
GAS KETTLES
SHORT SERIES™ GAS-FIRED KETTLE
38˝ RIM HEIGHT, FULL STEAM JACKETED
TILTING, "SPLASH PROOF SERIES"
40 GALLONS (150 LITERS)
Cleveland Standard Features
I
Support Legs with level adjustable feet, flanged for floor
bolting.
I
Type 304 Stainless Steel construction, with #4 finish on
kettle and supports.
I
Tilting Mechanism with permanently lubricated, Self-locking,
Worm Drive of space saving design.
I
50 psi Steam Jacket Rating and Safety Valve.
I
Standard for natural gas operation.
I
Large pouring lip for easier, faster, pouring. Heavy-duty
Rolled Rim design provides strong reinforcement, prevents
damages from abuse.
I
Standard voltage is 115 volts, 60 Hz, single phase, supplied
with cord and plug.
I
High efficiency Power Burner Heating System (62% to 65%
efficiency).
I
Fast Heat-up and Recovery Time, 140, 000 BTU firing rate.
I
Automatic Hot-Surface Ignition System.
I
Steam Jacket permanently filled with treated, distilled water.
Venting and/or refilling not required.
I
Splash-Proof Solid State Controls, for Temperature and Low
Water Safety, in a plug-in Control Module.
I
Control panel Includes:
Precise, consistent temperature control: less than ± 1ºC
•
variance (ideal for simmering).
L.E.D. Indicators for Heat Cycle and Low Water Warning.
•
Power "On/Off" Switch.
•
I
Typical approvals include AGA, CSA, CE, NSF and ASME.
Options & Accessories
Ë 316 Stainless Steel Liner (316)
Ë 2" Tangent Draw-Off (TD2)
Ë Kettle Markings (KM)
Ë Spring Assist Cover (CHS)
Ë Lift Off Cover (CL)
Ë Basket Strainer (BS)
Ë Pan Carrier (PCK)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com

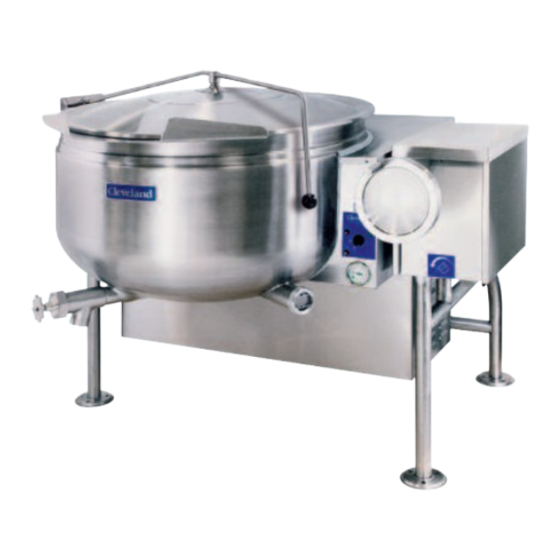

MODEL: KGL-40-TSH
Shown with optional Spring Assisted
Cover and 2" Tangent Draw-Off Valve
Short Form Specifications
Cleveland Gas-Fired Tilting Kettle, Model KGL-40-TSH, 37 1/2" rim height,
Type 304 Stainless Steel and Supports, Fully Steam Jacketed, 50 psi Steam
Jacket Rating, 140,000 BTU Double Pass Steam Generator, Power Burner
System, Splash Proof Solid State Temperature Controls, Automatic Hot-
Surface Ignition System.
Ë Measuring Strip (MS)
Ë Food Strainer (FS)
Ë Steam Control Kit (SCK1)
Ë Hot and cold water faucet (DPK), or cold water (SPK).
Requires faucet bracket (FBKT)
Ë 240 Volt, Single Phase Option
Ë Propane Gas Operation (LP)
Ë Correctional Packages
Ë Heat Deflector Shield (HS001)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
IX 11
SECT. PAGE
0707
