Cleveland KGL-40-T Specifications

™
Cleveland
GAS KETTLES
LEG TYPE, GAS-FIRED KETTLES
TILTING, 2⁄3 STEAM JACKETED
"SPLASH PROOF SERIES"
40, 60, or 80 GALLONS (150, 225, or 300 LITERS)
Cleveland Standard Features
I
High efficiency Power Burner Heating System (62% to
65% efficiency)
I
Fast Heat-up and Recovery Time, 140M BTU's on 40 gallon
models, 190M BTU's on 60 gallon and larger
I
Insulated Heat Exchanger
I
Automatic Ignition System
I
Steam Jacket permanently filled with treated, distilled water.
Venting and/or refilling not required.
I
Solid State Controls, for Temperature and Low Water Safety,
in a plug-in Control Module
I
Control Panel includes:
I
Precise, consistent temperature control: less than
I
± 1°C variance (ideal for simmering).
I
L.E.D. Indicators for Heat Cycle and Low Water Warning.
I
Power "on/off" Switch
I
Front mounted combination Pressure/Vacuum Gauge
I
Type 304 Stainless Steel with #4 finish on kettle and supports
I
Tilt Mechanism of roller bearings and case hardened
self-locking worm and segment gear
I
Support Legs with level adjustable feet, flanged for floor bolting
I
50 psi Steam Jacket Rating and Safety Valve
I
Standard voltage is 115 volts, 60 Hz, single-phase,
supplied with cord and plug
I
Standard for natural gas operation
I
Typical approvals include AGA, CSA, CE, NSF and ASME
Options & Accessories
Ë Type 316 Stainless Steel Kettle Liner for high acid food
products (316)
Ë Pan Carrier (PCK)
Ë Flow Diverter (FD)
Ë Food Strainer (FS)
Ë Kettle Markings (KM)
Ë Cooking Baskets and Tri-Basket Supports (BS and TBS)
Ë Drain Strainers (DS-)
Ë Faucet Mounting Bracket (FBKT)
Ë 2˝ or 3" diameter Tangent Draw-Off Valve with Drain Strainer
(TD2 or TD3*), *TD3 for 60 and 80 gallon only and will raise
height of kettle by 5-5/8" (143mm)
Ë 3" diameter Butterfly Valve (BV3)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900 Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782 Email: Steam@ClevelandRange.com
MODELS: KGL-40-T
KGL-60-T

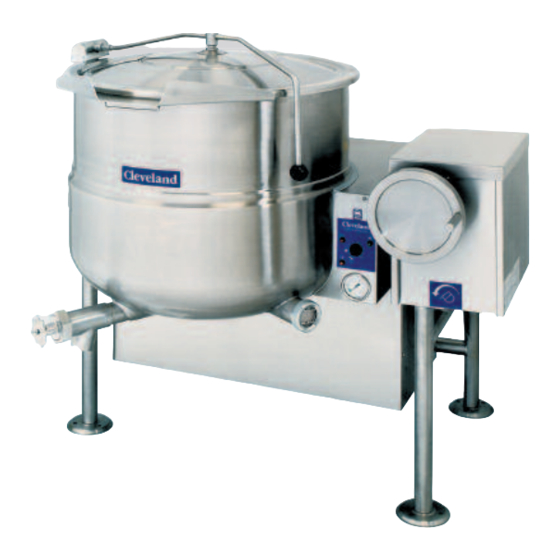

Shown with optional Spring Assisted
Cover and 2" Tangent Draw-Off Valve
Short Form Specifications
Shall be CLEVELAND, Gas-Fired Tilting Kettle, Model KGL- _____ T;
_____ gallons, 2⁄3 Steam Jacketed, Power Burner Heating System,
Insulated Heat Exchanger, 50 psi Steam Jacket Rating. Infinite
Variable Temperature Control, L.E.D. indicators for Heat Cycle and
Low Water Warning, Automatic Ignition System.
Ë Spring-assisted, hinged, rotatable, domed Stainless
Steel Cover (CHS-)
Ë Hot and Cold Water Faucet with Swing Spout (DPK)
Ë Kettle Accessory Kit (KAK) includes:
Ë Clean-up Brush(CB)
Ë 36" Kettle Whip(KW)
Ë Draw-off Brush (DB)
Ë Automatic Water Meter (GMF or LMF)
Ë Measuring Strip (MS)
Ë Option for Propane Gas operation
Ë Correctional Package
Ë Heat Deflector Shield (HS001)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
KGL-80-T
Ë 36" Kettle Paddle (KP)
Ë 36" Kettle Brush (KB)
Ë 24 oz. Ladle (KL)
IX
SECT. PAGE
7
0707
