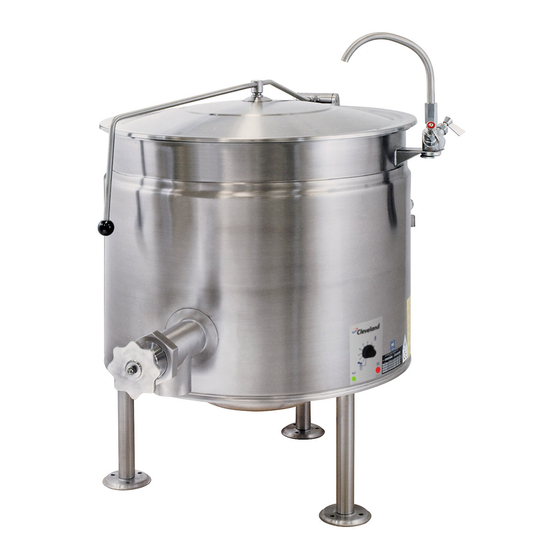

Cleveland KEL-40-SH Specifications

Cleveland KEL-40-SH Specifications

Short series gas-fired kettles 37.5˝ rim height, full steam jacketed stationary, splash proof series 40 or 60 gallons (150 or 225 liters)
Hide thumbs Also See for KEL-40-SH:

Advertisement

Quick Links

Cleveland
GAS KETTLES
SHORT SERIES™ GAS-FIRED KETTLES
37.5˝ RIM HEIGHT, FULL STEAM JACKETED
STATIONARY, "SPLASH PROOF SERIES"
40 or 60 GALLONS (150 or 225 LITERS)
Cleveland Standard Features
I
High Efficiency (65%) Forced Air Double Pass Heating
System
I
Fast Heat-up and Recovery Time, 190M BTU on
40 and 60 gallons
I
Automatic Hot-Surface Ignition System
I
50 psi Steam Jacket Rating and Safety Valve
I
Splash-Proof Solid-State control panel
I
Type 304 Stainless Steel with #4 finish on kettle and supports
I
Steam Jacket permanently filled with treated distilled water
I
Recessed, front-mounted Pressure/Vacuum Gauge
I
Solid-State, precise temperature controls with less than 1˚ C.
temperature difference
Control Panel Includes:
LED indicator for Heat Cycle
LED Indicator for Low Water
Power On/Off Switch
Adjustable Temperature Control Dial
I
Spring-assisted, hinged, rotatable, domed Stainless Steel
Cover
I
2˝ Tangent Draw-Off Valve
I
Faucet Mounting Bracket (FBK)
I
Standard for natural gas operation
I
Standard voltage is 115 volt, 60 cycle, 1 phase, supplied with
cord and plug
I
Level adjustable flanged feet for floor bolting
I
Typical approvals include AGA, CSA, CE, NSF and ASME
Options & Accessories
Ë 316 Stainless Steel Interior Liner (316G)
Ë 3˝ Tangent Draw-off Valve (TD3)
Ë 3˝ Butterfly Valve (BV3)
Ë Hot & Cold Water Faucet (DPK)
Ë Kettle Accessory Kit (KAK)
Ë Tri-Basket Strainer Support Systems (TBS)
Ë Kettles Markings (KM)
Ë Measuring Strips (MS)
1333 East 179 St.,
Cleveland, Ohio, U.S.A. 44110
Tel: 1-216-481-4900
Web Site: www.ClevelandRange.com
Fax: 1-216-481-3782
Email: Steam@ClevelandRange.com
MODELS:
KGL-40-SH
KGL-60-SH
Shown with optional Hot & Cold Water Faucet
Short Form Specifications
Cleveland Gas-Fired Stationary Kettle, Model KGL-( )SH, 37.5˝ rim
height, fully steam jacketed, 50 psi steam jacket rating, 190,000
BTU Double Pass Steam Generator, Power Burner System, Splash-
Proof Solid-State Temperature Controls, Automatic Hot-Surface
Ignition System
Ë Propane Gas (PG)
Ë Correctional Packages
Ë Heat Deflector Shield (HS001)
Project ________________________________
Item __________________________________
Quantity _______________________________
FCSI Section ____________________________
Approval _______________________________
Date __________________________________
IX
13
SECT.
PAGE
0707

Advertisement

loading
Need help?

Need help?

Do you have a question about the KEL-40-SH and is the answer not in the manual?

Questions and answers

Summary of Contents for Cleveland KEL-40-SH

  • Page 1 KGL-60-SH Shown with optional Hot & Cold Water Faucet Short Form Specifications Cleveland Gas-Fired Stationary Kettle, Model KGL-( )SH, 37.5˝ rim height, fully steam jacketed, 50 psi steam jacket rating, 190,000 BTU Double Pass Steam Generator, Power Burner System, Splash-...
  • Page 2 Installation of backflow preventers, vacuum breakers and other specific coder requirements is the responsibility of the owner and installer. Cleveland Range equipment is built to comply with applicable standards for manufacturers. Included among those approval agencies are U.L., A.G.A., NSF, ASME/N.Bd., CSA, CGA, ETL and others.

This manual is also suitable for:

Kgl-60-sh
