IEI Technology PPC-5350GS User Manual

Flat panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

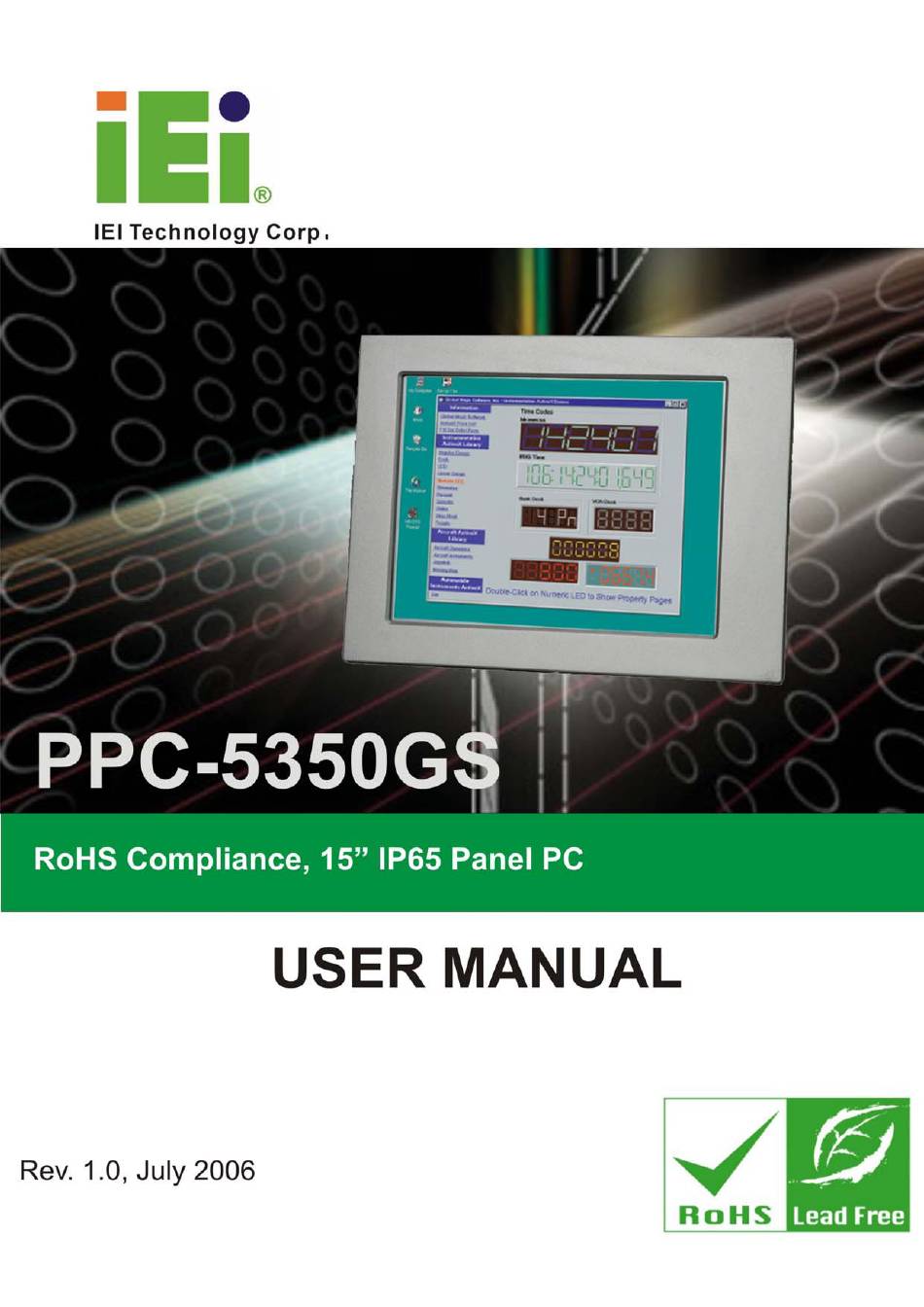

PPC-5350GS Flat Panel PC
0-1
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-5350GS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology PPC-5350GS

Summary of Contents for IEI Technology PPC-5350GS

  • Page 1 PPC-5350GS Flat Panel PC...
  • Page 2 This document covers the description and installation instructions for the PPC-5350GS flat panel PC. COPYRIGHT NOTICE This document is copyrighted 2006, by IEI Technology Corp. All rights are reserved. IEI Technology Corp. reserves the rights to alter the products described in this manual at any time without prior notice.
  • Page 3 PPC-5350GS Flat Panel PC PACKING LIST Before installing the LCD workstation, please make sure that the following items have been shipped: 1 x Carton 1 x Power cable 1 x IDE cable 1 x CPU cooler 1 x Driver CD...
  • Page 4 Users/integrators should take the responsibility for implementations with adequate levels of reliability and safety. 8. Preventive designs should be implemented so as to avoid the communications faults between the workstation and the PC/workstation/terminals that controls it. HANDLING PRECAUTIONS 1. Do not drop the workstation against a hard surface. Doing so may damage the display.
  • Page 5 PPC-5350GS Flat Panel PC WARNING! Any changes or modifications made to the equipment that are not expressly approved by the relevant standards could void the authority to operate the equipment. ADDITIONAL INFORMATION MAINTENANCE AND CLEANING Note the following precautions before beginning to clean the LCD workstation.
  • Page 6 CLEANING TOOLS Although many companies have created products to help improve the process of cleaning the computer and peripherals, users can also use household items to clean their computers and peripherals. Below is a list of items to use while cleaning the computer or computer peripherals.
  • Page 7 PPC-5350GS Flat Panel PC MANUAL CONVENTIONS WARNING! Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. Warnings are easy to recognize. The word “warning” is written as “WARNING,” both capitalized and bold and is followed by text in italics.

  • Page 8: Table Of Contents

    INTRODUCTION....................15 PPC-5350GS F PC O ............16 ANEL VERVIEW 1.1.1 PPC-5350GS Model Variation................. 16 1.1.2 PPC-5350GS Flat Panel PC Applications............16 1.1.3 PPC-5350GS Flat Panel PC Features............. 16 PPC-5350GS E ..............17 XTERNAL VERVIEW 1.2.1 General Description..................17 1.2.2 Front Panel ...................... 17 1.2.3 Rear Panel .......................
  • Page 9 PPC-5350GS Flat Panel PC 2.4.1 Display ......................30 2.4.2 Internal Graphics Features................30 2.4.3 Intel® Embedded Graphics Drivers ..............30 ......31 ERIPHERAL EVICE NTERFACES ONNECTORS LOTS 2.5.1 OEM Options ....................31 2.5.2 Internal Slots....................31 2.5.3 Internal Peripheral Device Connectors............31 2.5.4 External Peripheral Device Connectors............
  • Page 10 4.3.2 Detaching the Elevated Platform..............51 DIMM R ..................52 EPLACEMENT PSU M ................53 ODULE EPLACEMENT AMI BIOS SETUP....................57 ....................58 NTRODUCTION 5.1.1 Starting Setup ....................58 5.1.2 Using Setup ...................... 58 5.1.3 Getting Help..................... 59 5.1.4 Unable to Reboot After Configuration Changes..........59 5.1.5 BIOS Menu Bar....................

  • Page 11: Bios Configuration Options

    PPC-5350GS Flat Panel PC BIOS CONFIGURATION OPTIONS ..............115 BIOS C ..............116 ONFIGURATION PTIONS INDEX........................119 0-11...
  • Page 12 List of Figures Figure 1-1: PPC-5350GS Front View................17 Figure 1-2: PPC-5350GS Rear View................18 Figure 1-3: PPC-5350GS Top View ................18 Figure 1-4: Bottom View .....................19 Figure 1-5: Right View....................19 Figure 1-6: Left View ....................20 Figure 1-7: Frame Rear View (12 panel mount retention screws) ......20 Figure 1-8: Dimensions (units in mm)...............26...
  • Page 13 PPC-5350GS Flat Panel PC List of Tables Table 1-1: PPC-5350GS Model Variation..............16 Table 1-2: PPC-5350GS Specifications ..............22 Table 1-3: Motherboard Specifications ..............23 Table 1-4: 15” TFT LCD Monitor Specifications............24 Table 1-5: Power Supply Specifications ..............25 Table 3-1: Clear CMOS Jumper Settings ..............38 Table 3-2: CF Card Setup Jumper Settings ..............38...
  • Page 14 THIS PAGE IS INTENTIONALLY LEFT BLANK ® Technology, Corp. 0-14...

  • Page 15: Introduction

    PPC-5350GS Flat Panel PC Chapter Introduction 1-15...

  • Page 16: Ppc-5350Gs Flat Panel Pc Overview

    PPC-5350GS Flat Panel PC Overview The PPC-5350GS flat panel PC is a flexible, multi-functional flat panel PC that can be applied in diverse operational environments and implemented in multi-faceted applications. The PPC-5350GS comes fully kitted with a high-performance motherboard, CPU, power supply unit and a host of other peripheral interface connectors.

  • Page 17: Ppc-5350Gs External Overview

    CD drive. The bottom panel provides access to external interface connectors that include LAN, USB 2.0, audio and serial port connectors. 1.2.2 Front Panel The front side of the PPC-5350GS is a flat panel 15” TFT LCD screen surrounded by an aluminum frame. Figure 1-1: PPC-5350GS Front View...

  • Page 18: Rear Panel

    The rear panel provides access to four retention screw holes that support a wall-mounting bracket. The retention screw holes are circled in Figure 1-2. Figure 1-2: PPC-5350GS Rear View 1.2.4 Top Panel The top panel provides access to two retention screw holes that support to secure the back cover to the chassis.

  • Page 19: Right Side Panel

    PPC-5350GS Flat Panel PC 1 x Power supply unit (PSU) plug socket 3 x Audio jacks 1 x Power switch 1 x VGA connector 5 x Serial port (COM) connectors 4 x USB 2.0 connectors 1 x DVI connector 2 x PS/2 keyboard/mouse connectors...

  • Page 20: Left Side Panel

    1.2.7 Left Side Panel The left side panel provides access to the CD drive. (See Figure 1-6) Figure 1-6: Left View 1.2.8 Frame An aluminum frame surrounds the 15” TFT LCD screen. This aluminum frame has 12 small screw holes that are used when the flat panel PC is mounted into a panel. These screws are circled in Figure 1-7.

  • Page 21: Ppc-5350Gs Internal Overview

    PPC-5350GS Flat Panel PC PPC-5350GS Internal Overview The PPC-5350GS internal components are configured in a three level format. An elevated platform on the right side of the chassis supports a HDD and a CD drive. On the second level, below the elevated platform, are a motherboard and a PSU module. The motherboard and the PSU module are installed on a metal sheet that protects the rear of the 15”...

  • Page 22: Ppc-5350Gs Motherboard Specifications

    410(W) x 309(H) x 110(D) mm Environment RoHS Compliant Table 1-2: PPC-5350GS Specifications 1.4.3 PPC-5350GS Motherboard Specifications The PPC-5350GS comes with an A300 motherboard. The technical specifications of the motherboard are listed in Table 1-3. SPECIFICATION DETAIL Onboard ULV Intel Celeron M 800MHz or...

  • Page 23: Flat Panel Screen

    Table 1-3: Motherboard Specifications 1.4.4 Flat Panel Screen The PPC-5350GS comes with a 15” TFT LCD monitor at the front of the flat panel PC (see Figure 1-1). The specifications for the LCD monitor are shown in Table 1-4 below.

  • Page 24: Power Supply Unit (Psu)

    Table 1-4: 15” TFT LCD Monitor Specifications 1.4.5 Power Supply Unit (PSU) The PPC-5350GS flat panel PC comes with a 150W, RoHS compliant PSU. The PSU has an MTBF greater than 100,000 hours. The maximum power output for the PSU is shown below.

  • Page 25: Oem Customizations

    Preinstalled PCMCIA card Preinstalled SATA drives Memory chips with different sizes Different CPU Preinstalled HDD Preinstalled CD drive To implement any of the above OEM customizations please contact the PPC-5350GS reseller or vendor. Alternatively, please contact an IEI sales representative directly. 1-25...

  • Page 26: Dimensions

    Dimensions The dimensions of the PPC-5350GS flat panel PC are shown in Figure 1-8 below. Figure 1-8: Dimensions (units in mm) ® Technology, Corp. 1-26...

  • Page 27: A300 Motherboard

    PPC-5350GS Flat Panel PC Chapter A300 Motherboard 1-27...

  • Page 28: Introduction

    A300, please refer to the A300 user guide. CPU Support The A300 installed in the PPC-5350GS supports socket 479, Intel Pentium M / Celeron M FSB 400 MHz CPU and onboard ULV Intel Celeron M 800MHz CPU.

  • Page 29: Ich4 Southbridge Chipset

    PPC-5350GS Flat Panel PC LAN Connect Interface (LCI) provides flexible network solutions such as 10/100 Mbps Ethernet and 10/100 Mbps Ethernet with LAN manageability Dual Ultra ATA/100 controllers, coupled with the Intel® Application Accelerator support faster IDE transfers to storage devices...

  • Page 30: Graphics Support

    Graphics Support The graphics features listed below are all integrated on the 855GME northbridge chipset. 2.4.1 Display Analog display support Dual independent pipe support Concurrent: different images and native display timings on each display device Simultaneous: same images and native display timings on each display device DVO (DVOB and DVOC) support Digital video out ports DVOB and DVOC with 165 MHz dot clock on...

  • Page 31: Peripheral Device Interfaces, Connectors, And Slots

    PPC-5350GS Flat Panel PC User definable and extensible Embedded video BIOS Common port interface support Full VGA compatibility Peripheral Device Interfaces, Connectors, and Slots The peripheral device connectors, interfaces and slots on the A300 motherboard are listed in the sections below.

  • Page 32: External Peripheral Device Connectors

    1 x Power inverter connector 1 x ATX power connector 3 x Cooling fan connectors 1 x 8 bits GPIO connector 1 x Audio connector 1 x IR interface connector 1 x PCMCIA connector 2.5.4 External Peripheral Device Connectors The peripheral device connectors listed below are located on the rear panel of the A300 motherboard.

  • Page 33: Installation And Configuration

    PPC-5350GS Flat Panel PC Chapter Installation and Configuration 1-33...

  • Page 34: Installation Precautions

    Anti-static Discharge: If a user open the rear panel of the PPC-5350GS, to configure the jumpers or plug in added peripheral devices, ground themselves first and wear and anti-static wristband.

  • Page 35: Installation And Configuration Steps

    Connect peripheral devices to the bottom panel of the PPC-5350GS Step 5: Configure the systemStep 0: Unpacking When unpacking the PPC-5350GS flat panel PC, please check the following: Step 1: Make sure the PPC-5350GS is not damaged. Step 2: Make sure the pre-packed components listed below are present:...

  • Page 36: Remove The

    The back cover is secured to the chassis with twelve retention screws, eight on the rear panel, two on the bottom panel and two on the top panel. (See Figure 3-1 and Figure 3-2) Remove the twelve retention screws and lift the cover off the PPC-5350GS. ®...

  • Page 37: Jp2: Clear Cmos Setup

    PPC-5350GS Flat Panel PC Figure 3-1: Rear Cover Retention Screws (Real Panel) Figure 3-2: Rear Cover Retention Screws (Top Panel) Figure 3-3: Rear Cover Retention Screws (Bottom Panel) 3.5.2 JP2: Clear CMOS Setup If the motherboard fails to boot due to improper BIOS settings, use this jumper to clear the CMOS data and reset the system BIOS information.

  • Page 38: Jp4: Cf Card Setup

    If the “CMOS Settings Wrong” message displays during the boot up process, try to correct the fault by pressing the F1 to enter the CMOS Setup menu. Then do one of the following: Enter the correct CMOS setting Load Optimal Defaults Load Failsafe Defaults.

  • Page 39: Cn13: Com Port Jumper Setting

    PPC-5350GS Flat Panel PC DESCRIPTION 3.3V (Default) Table 3-3: LCD Voltage Setup Jumper Settings 3.5.5 CN13: COM Port Jumper Setting The COM Port jumper configures the COM1, COM2 and COM3 serial ports. CN13 DESCRIPTION DESCRIPTION COM1 pin9 has 5V COM2 pin9 has 5V...

  • Page 40: Mounting The System

    Arm mounting The three mounting methods are described below. 3.6.1 Wall Mounting To mount the PPC-5350GS flat panel PC onto the wall, please follow the steps below. Step 1: Attach the wall-mounting bracket to the wall. 1. Select the location on the wall.

  • Page 41: Figure 3-4: Wall-Mounting Bracket

    Insert the four screws into the four screw holes on the real cover of PPC-5350GS (see Figure 3-5). Make sure a part of the screw protrudes out of the flat panel PC rear cover and can be inserted into the bracket.

  • Page 42: Panel Mounting

    In the diagram below the bracket is already installed on the wall. Figure 3-6: Mount the Chassis 3.6.2 Panel Mounting To mount the PPC-5350GS flat panel PC into a panel, please follow the steps below. Step 1: Select the position in the panel to mount the PPC-5350GS.

  • Page 43: Figure 3-7: Cut The Panel

    Slide the PPC-5350GS flat panel computer through the previously cut hole. The chassis at the rear of the PPC-5350GS flat panel should slide easily through the hole. Only stop sliding the panel through the hole when the back of the front aluminum frame is flush against the panel.

  • Page 44: Arm Mounting

    Figure 3-9: Tighten the Panel Mounting Clamp Screws 3.6.3 Arm Mounting The PPC-5350GS is VESA (Video Electronics Standards Association) compliant and can be mounted on an arm with a 100mm interface pad. To mount the PPC-5350GS on an arm, please follow the steps below. Step 1: The arm is a separately purchased item.

  • Page 45: Figure 3-10: Arm Mount Retention Screw Holes

    Figure 3-10: Arm Mount Retention Screw Holes Step 4: Secure the PPC-5350GS to the interface pad by inserting four retention screws through the bottom of the mounting arm interface pad and into the PPC-5350GS flat panel PC. Step 0: 1-45...

  • Page 46: Rear Panel Connectors

    Rear Panel Connectors 3.7.1 LCD Panel Connection To connect the PPC-5350GS flat panel PC to a second monitor, a conventional CRT VGA monitor connector is located on the bottom panel. This panel is a 15-pin, female D-SUB connector. NOTE: ®...

  • Page 47: System Maintenance

    PPC-5350GS Flat Panel PC Chapter System Maintenance 1-47...

  • Page 48: System Maintenance Introduction

    4.3.1 Back Cover Removal WARNING: BEFORE REMOVING THE BACK COVER, MAKE SURE THE POWER IS OFF. Failing to do so may lead to severe damage of PPC-5350GS and injury to the body. WARNING: PLEASE TAKE ANTISTATIC PRECAUTIONS WHEN WORKING WITH THE INTERNAL COMPONENTS.
  • Page 49 CPU cooling fan DIMM module PSU module The back cover of the PPC-5350GS must be removed. To remove the back cover, please follow the steps below. Step 1: Remove the PPC-5350GS from the wall (if it was mounted on the wall) or the panel (if it was mounted in the panel).

  • Page 50: Figure 4-1: Rear Cover Retention Screws (Real Panel)

    Figure 4-1: Rear Cover Retention Screws (Real Panel) Figure 4-2: Rear Cover Retention Screws (Top Panel) Figure 4-3: Rear Cover Retention Screws (Bottom Panel) ® Technology, Corp. 1-50...

  • Page 51: Detaching The Elevated Platform

    PPC-5350GS Flat Panel PC 4.3.2 Detaching the Elevated Platform To replace PSU module, the back cover of the PPC-5350GS must be removed and the elevated platform must be detached. Back cover removal is discussed above (see Section 4.3.1). To detach the elevated platform, please follow the steps below.

  • Page 52: Dimm Replacement

    Figure 4-6: Elevated Platform Retention Screws (Bottom Panel) Step 3: A PCI riser card is attached to the side of the elevated platform with two retention screws. Remove the two retention screws and the PCI riser card from chassis.Step 0: Figure 4-7: PCI Riser Card Retention Screws DIMM Replacement To install the DIMM please follow the steps below.

  • Page 53: Psu Module Replacement

    Remove the back cover. See Section 4.3.1 above. Step 2: Locate the DIMM. It is on the motherboard near the top of the PPC-5350GS flat screen PC. Push the white clips on the side of the DIMM down. The DIMM is dislodged from the DIMM socket.

  • Page 54: Figure 4-8: Psu Motherboard Connector

    Figure 4-9: PSU Motherboard Connector Step 5: The PSU module is secured to the PPC-5350GS flat panel PC with four retention screws, one connects to the metal sheet at the back of the 15”TFT LCD screen (Figure 4-10) and the other three are inserted through the bottom panel and into the PSU module (Figure 4-11).

  • Page 55: Figure 4-10: Psu External Retention Screws

    Place the new PSU module into the PPC-5350GS flat panel PC. Step 10: Secure the new PSU module to the PPC-5350GS flat panel PC by reinserting the retention screw into the metal plate behind the 15” TFT LCD screen and the...
  • Page 56 THIS PAGE IS INTENTIONALLY LEFT BLANK ® Technology, Corp. 1-56...

  • Page 57: Ami Bios Setup

    PPC-5350GS Flat Panel PC Chapter AMI BIOS Setup 1-57...

  • Page 58: Introduction

    Introduction A licensed copy of AMI BIOS is preprogrammed into the ROM BIOS. The BIOS setup program allows users to modify the basic system configuration. This chapter describes how to access the BIOS setup program and the configuration options that may be changed. 5.1.1 Starting Setup The AMI BIOS is activated when the computer is turned on.

  • Page 59: Getting Help

    PPC-5350GS Flat Panel PC F2 /F3 key Change color from total 16 colors. F2 to select color forward. F10 key Save all the CMOS changes, only for Main Menu Table 5-1: BIOS Navigation Keys 5.1.3 Getting Help When F1 is pressed a small help window describing the appropriate keys to use and the possible selections for the highlighted item appears.

  • Page 60: Main

    Main When the BIOS Setup program is entered, the Main menu (BIOS Menu 1) appears. The Main menu gives an overview of the basic system information. BIOS Menu 1: Main System Overview The System Overview lists a brief summary of different system components. The fields in System Overview cannot be changed.

  • Page 61: Advanced

    PPC-5350GS Flat Panel PC Type: Names the currently installed processor Speed: Lists the processor speed Count: The number of CPUs on the motherboard System Memory: Displays the auto-detected system memory. Size: Lists memory size The System Overview field also has two user configurable fields: System Time [xx:xx:xx]: The system time is set here.

  • Page 62: Cpu Configuration

    BIOS Menu 2: Advanced 5.3.1 CPU Configuration The CPU Configuration menu (BIOS Menu 3) shows detailed CPU specifications and CPU configuration options. ® Technology, Corp. 1-62...

  • Page 63: Ide Configuration

    PPC-5350GS Flat Panel PC BIOS Menu 3: CPU Configuration The CPU Configuration menu (BIOS Menu 3) lists the following CPU details: Manufacturer: Lists the name of the CPU manufacturer Brand String: Lists the brand name of the CPU being used...

  • Page 64: Onboard Pci Ide Controller [Both]

    BIOS Menu 4: IDE Configuration OnBoard PCI IDE Controller [Both] The OnBoard PCI IDE Controller BIOS option specifies the IDE channels used by the onboard PCI IDE controller. The following configuration options are available. Disabled Prevents the system from using the onboard IDE controller Primary Only allows the system to detect the Primary IDE...

  • Page 65: Ide Master, Ide Slave

    PPC-5350GS Flat Panel PC channel, including both the Secondary Master and Secondary Slave) Both (Default) Allows the system to detect both the Primary and Secondary IDE channels including the Primary Master, Primary Slave, Secondary Master and Secondary Slave. IDE Master and IDE Slave When entering setup, BIOS auto detects the presence of IDE devices.

  • Page 66: Auto-Detected Drive Parameters

    BIOS Menu 5: IDE Master Configuration Auto-Detected Drive Parameters The “grayed-out” items in the left frame are IDE disk drive parameters automatically detected from the firmware of the selected IDE disk drive. The drive parameters are listed as follows: Device: Lists the device type (e.g. hard disk, CD-ROM etc.) Vendor: Lists the device manufacturer Size: The size of the device.

  • Page 67: Type [Auto]

    PPC-5350GS Flat Panel PC interrupt if block mode is not used. Block mode allows transfers of up to 64 KB per interrupt. PIO Mode: Indicates the PIO mode of the installed device. Async DMA: Indicates the highest Asynchronous DMA Mode that is supported.

  • Page 68: Lba/Large Mode [Auto]

    LBA/Large Mode [Auto] The LBA/Large Mode BIOS option disables or auto detects LBA (Logical Block Addressing). LBA is a method of addressing data on a disk drive. In LBA mode, the maximum drive capacity is 137 GB. Disabled This selection prevents the BIOS from using the LBA mode control on the specified channel.

  • Page 69: Dma Mode [Auto] No

    PPC-5350GS Flat Panel PC PIO mode 1 selected with a maximum transfer rate of 5.2MBps PIO mode 2 selected with a maximum transfer rate of 8.3MBps PIO mode 3 selected with a maximum transfer rate of 11.1MBps PIO mode 4 selected with a maximum transfer rate of 16.6MBps (This setting generally works with all hard disk drives manufactured after 1999.

  • Page 70: Type [Auto]

    Prevents the BIOS from using 32-bit data transfers. Disabled Enabled (Default) Allows BIOS to use 32-bit data transfers on support hard disk drives. BIOS Menu 6: IDE Slave Configuration Type [Auto] The Type BIOS option determines the type of device that the AMIBIOS attempts to boot from after the Power-On Self-Test (POST) has completed.

  • Page 71: Zip

    PPC-5350GS Flat Panel PC (Default) This selection enables the BIOS to auto detect the IDE Auto disk drive type attached to the specified channel. This setting should be used if an IDE hard disk drive is attached to the specified channel.

  • Page 72: Dma Mode [Auto]

    manufactured after 1999. For other disk drives, such as IDE CD-ROM drives, check the specifications of the drive.) DMA Mode [Auto] The DMA Mode BIOS selection adjusts the DMA mode options. Auto (Default) The BIOS auto detects the DMA mode. Use this value if the IDE disk drive support cannot be determined.

  • Page 73: Super Io Configuration

    PPC-5350GS Flat Panel PC 5.3.3 Super IO Configuration The Super IO Configuration menu (BIOS Menu 7) sets or changes the configurations for the serial ports. BIOS Menu 7: Super IO Configuration Serial Port1 Address [3F8/IRQ4] The Serial Port1 Address option allows BIOS to select the Serial Port 1 base address.

  • Page 74: Serial Port2 Address [2F8/Irq3]

    Serial Port 1 I/O port address is 3E8 and the interrupt 3E8/IRQ4 address is IRQ4 2E8/IRQ3 Serial Port 1 I/O port address is 2E8 and the interrupt address is IRQ3 Serial Port2 Address [2F8/IRQ3] The Serial Port2 Address option allows BIOS to select the Serial Port 2 base address. Disabled No base address is assigned to Serial Port 2 2F8/IRQ3...

  • Page 75: Serial Port3 Irq [11]

    PPC-5350GS Flat Panel PC Serial port 3 I/O port address is 2E8 Serial port 3 I/O port address is 2E0 Serial Port3 IRQ [11] The Serial Port3 IRQ selection sets the interrupt address for serial port 3. Serial port 3 IRQ address is 10...

  • Page 76: Hardware Health Configuration

    Serial port 5 I/O port address is 2E8 (Default) Serial port 5 I/O port address is 2E0 Serial port 5 I/O port address is 2D8 Serial port 5 I/O port address is 2D0 Serial Port5 IRQ [11] The Serial Port5 IRQ selection sets the interrupt address for serial port 5. Serial port 5 IRQ address is 10 (Default) Serial port 5 IRQ address is 11...

  • Page 77: Fan 1 Mode Setting: [Full On]

    PPC-5350GS Flat Panel PC The Hardware Health Configuration menu (BIOS Menu 8) shows the operating temperature, fan speeds and system voltages. BIOS Menu 8: Hardware Health Configuration FAN 1 Mode Setting: [Full On] The FAN 1 Mode Setting has the following options:...

  • Page 78: Temperature 1 Limit Of Full

    Temperature 1 Limit of Full Fan 1 Start PWM Slop PWM 1: 0 PWM , 2 PWM (Default), 4 PWM or 8 PWM, 16 PWM, 32 PWM, 64 PWM FAN 2 Mode Setting: [Full On] The FAN 2 Mode Setting has the following options: (Default) If selected, there are no additional configurable options.

  • Page 79: Acpi Configuration

    PPC-5350GS Flat Panel PC +12Vin 5.3.5 ACPI Configuration The ACPI Configuration menu (BIOS Menu 9) configures the Advanced Configuration and Power Interface (ACPI) and Power Management (APM) options. BIOS Menu 9: ACPI Configuration ACPI Aware O/S [Yes] ACPI Aware O/S can only be configured if the OS complies with the ACPI standard.

  • Page 80: Mps Configuration

    disabled if the OS does not support ACPI (Default) Enables the ACPI support for the operating system. This selection should be enabled if the OS does support ACPI 5.3.6 MPS Configuration The MPS Configuration menu (BIOS Menu 10) configures the multi-processor table. BIOS Menu 10: MPS Configuration MPS Revision [1.4] The Multiprocessor Specification (MPS) for OS specifies the MPS version to be used.

  • Page 81: Usb Configuration

    PPC-5350GS Flat Panel PC (Default) MPS version 1.4 is used 5.3.7 USB Configuration The USB Configuration menu (BIOS Menu 11) gives USB configuration information and configures some USB features. BIOS Menu 11: USB Configuration USB Configuration The USB Configuration field shows the system USB configuration. The items listed are: Module Version: 2.24.0-10.4...

  • Page 82: Usb Devices Enabled

    USB Devices Enabled: Lists the USB devices that are enabled on the system USB Function [Enabled] The USB Function BIOS option enables or disables the USB function USB function disabled Disabled Enabled (Default) USB function enabled Legacy USB Support [Enabled] The Legacy USB Support BIOS option refers to USB mouse and USB keyboard support.

  • Page 83: Usb Mass Storage Device Configuration

    PPC-5350GS Flat Panel PC (12Mbits/second) (Default) The controller is capable of operating at high speed HiSpeed (480Mbits/second) 5.3.7.1 USB Mass Storage Device Configuration Use the USB Mass Storage Device Configuration menu (BIOS Menu 12) to configure USB mass storage class devices.

  • Page 84: Device

    device after the start unit command. POST waits 30 seconds for the USB mass storage 30 Sec device after the start unit command. 40 Sec POST waits 40 seconds for the USB mass storage device after the start unit command. Device ## The Device## field lists the USB devices that are connected to the system.

  • Page 85: Boot

    PPC-5350GS Flat Panel PC Allows a hard disk image to be connected as a floppy Forced FDD image. This option works only for drives formatted with FAT12, FAT16 or FAT32. Hard Disk Allows the USB device to be emulated as hard disk responding to INT13h calls that return DL values of 80h or above.

  • Page 86: Boot Settings Configuration

    5.4.1 Boot Settings Configuration The Boot Settings Configuration menu (BIOS Menu 14) configures advanced system boot options. BIOS Menu 14: Boot Settings Configuration Quick Boot [Enabled] The Quick Boot BIOS option makes the computer speed up the boot process. System does not skip any POST procedures Disabled (Default) Allows system to skip some POST procedures to...

  • Page 87: Bootup Num-Lock [On]

    PPC-5350GS Flat Panel PC (Default) Displays normal POST messages Disabled Enabled Displays OEM Logo instead of POST messages Bootup Num-Lock [On] The Bootup Num-Lock BIOS option allows the Number Lock setting to be modified during boot up. Does not enable the keyboard Number Lock automatically. To use the 10-keys on the keyboard, press the Number Lock key located on the upper left-hand corner of the 10-key pad.

  • Page 88: Hit 'Del' Message Display [Enabled]

    The Wait For ‘F1’ if Error option specifies how the system responds when the system detects an error on boot up. If there is an error when booting up, the system does not Disabled wait for user intervention but continues to boot up in the operating system.

  • Page 89: Boot Device Priority

    PPC-5350GS Flat Panel PC 5.4.2 Boot Device Priority The Boot Device Priority menu (BIOS Menu 15) specifies the boot sequence from the available devices. Possible boot devices may include: FLOPPY DRIVE CD/DVD BIOS Menu 15: Boot Device Priority Settings 5.4.3 Removable Drives The Removable Drives menu (BIOS Menu 16) specifies the boot sequence of the available USB drives.
  • Page 90 NOTE: Only the drives connected to the system are shown. For example, if only one USB is connected only “1st Drive” is listed. The boot sequence from the available devices is selected. If the “1st Drive” option is selected a list of available USB drives is shown. Select the first USB drive system boots from.

  • Page 91: Cd/Dvd Drives

    PPC-5350GS Flat Panel PC 5.4.4 CD/DVD Drives The CD/DVD Drives menu is similar to the Removable Drives BIOS Menu 16 and it specifies the boot sequence of the available CD/DVD drives. When the menu is opened, the CD drives and DVD drives connected to the system are listed as shown below:...

  • Page 92: Change Supervisor Password

    BIOS Menu 17: Security Change Supervisor Password The default setting for the Change Supervisor Password is Not Installed. If a supervisor password must be installed, select this field and enter the password. After the password has been added, Install appears next to Change Supervisor Password. Change User Password The default setting for the Change User Password is Not Installed.

  • Page 93: Chipset

    PPC-5350GS Flat Panel PC Chipset The Chipset menu (BIOS Menu 18) has two sub-menus, NorthBridge Configuration and SouthBridge Configuration. The NorthBridge Configuration menu configures the northbridge chipset and the SouthBridge Configuration menu configures the southbridge chipset. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 94: Northbridge Configuration

    5.6.1 NorthBridge Configuration The NorthBridge Configuration menu (BIOS Menu 19) allows the northbridge chipset to be configured. BIOS Menu 19: NorthBridge Chipset Configuration DRAM Frequency [Auto] The DRAM Frequency option allows specifies the DRAM frequency or allow the system to automatically detect the DRAM frequency.

  • Page 95: Configure Dram Timing By Spd [Enabled]

    PPC-5350GS Flat Panel PC Sets the DRAM frequency to 333MHz 333MHz Auto (Default) Automatically selects the DRAM frequency Configure DRAM Timing by SPD [Enabled] The Configure DRAM Timing by SPD option determines if the system uses the SPD (Serial Presence Detect) EEPROM to configure the DRAM timing. The SPD EEPROM...

  • Page 96: Init. Graphic Adapter Priority [Pci/Int-Vga ]

    (Default) Memory is not reserved for ISA expansion cards Disabled 15M– 16M Memory is reserved for ISA expansion cards Init. Graphic Adapter Priority [PCI/Int-VGA ] The Init. Graphic Adapter Priority option selects the graphics controller the system uses as a primary boot device. The options are: Internal VGA PCI/Int-VGA Internal Graphics Mode Select [Enable, 32MB]...

  • Page 97: Boot Display Device [Crt+Lep]

    PPC-5350GS Flat Panel PC Boot Display Device [CRT+LEP] The Boot Display Device BIOS option selects the display device the system uses when it boots. The available options are listed below: CRT + EFP CRT + LFP (Default) Flat Panel Type [1280x1024 48bits ] The Flat Panel Type BIOS option specifies the flat panel PC type being used.

  • Page 98: Southbridge Configuration

    5.6.2 SouthBridge Configuration The SouthBridge Configuration menu (BIOS Menu 20) the southbridge chipset to be configured. BIOS Menu 20: SouthBridge Chipset Configuration OnBoard AC’97 Audio [Auto] The OnBoard AC’97 Audio option enables or disables the AC’97 CODEC. Disabled The onboard AC’97 is disabled Auto (Default) The onboard AC’97 automatically detected and enabled...

  • Page 99: Power

    PPC-5350GS Flat Panel PC Spread Spectrum Mode [Disabled] The Spread Spectrum Mode option enables or disables the spread spectrum mode. Disabled (Default) The spread spectrum mode is disabled Enabled The spread spectrum mode is enabled OnBoard LAN1 [Enabled] The OnBoard LAN1 option enables or disables the onboard LAN1.

  • Page 100: Power Management/Apm [Enabled]

    BIOS Menu 21: Power Power Management/APM [Enabled] The Power Management/APM BIOS option allows access to the advanced power management features. If this option is disabled, the only other option on the screen is the “Resume On RTC Alarm.” Disables the Advanced Power Management (APM) Disabled feature Enabled...

  • Page 101: Restore On Ac Power Loss [Last State]

    PPC-5350GS Flat Panel PC (Default) When the power button is pressed the system is either On/Off turned on or off Suspend When the power button is pressed the system goes into suspend mode Restore on AC Power Loss [Last State] The Restore on AC Power Loss BIOS option specifies what state the system returns to if there is a sudden loss of power to the system.

  • Page 102: Exit

    Wake event generated by PCI PME controller or Enabled onboard LAN controller activity Resume On RTC Alarm [Disabled] The Resume On RTC Alarm determines when the computer is roused from a suspended state. (Default) The real time clock (RTC) cannot generate a wake Disabled event Enabled...

  • Page 103: Save Changes And Exit

    PPC-5350GS Flat Panel PC BIOS Menu 22: Exit Save Changes and Exit If configuration changes are complete, select this option to save them and exit the BIOS menus. Discard Changes and Exit If configuration changes are complete but do need to be saved, select this option to exit the BIOS menus.

  • Page 104: Load Optimal Defaults

    Load Optimal Defaults This option loads optimal default values for each of the parameters on the Setup menus. F9 key can be used for this operation. Load Failsafe Defaults This option loads failsafe default values for each of the parameters on the Setup menus. F8 key can be used for this operation.

  • Page 105: Ainterface Connectors

    PPC-5350GS Flat Panel PC Appendix Interface Connectors 1-10...

  • Page 106: Peripheral Interface Connectors

    Peripheral Interface Connectors The PPC-5350GS flat panel PC motherboard, the A300 comes with a number of peripheral interface connectors and configuration jumpers listed in Chapter 2. The pinouts for these connectors are listed below: CN5: Front Panel Connector PIN NO. DESCRIPTION PIN NO.
  • Page 107 PPC-5350GS Flat Panel PC DATA 2 DATA 13 DATA 1 DATA 14 DATA 0 DATA 15 GROUND IDE DRQ GROUND IOW# GROUND IOR# GROUND IDE CHRDY GROUND IDE DACK GROUND–DEFAULT INTERRUPT HDC CS0# HDC CS1# HDD ACTIVE# GROUND GROUND IDE2: Secondary IDE Interface Connector PIN NO.
  • Page 108 IDE DACK GROUND–DEFAULT INTERRUPT HDC CS0# HDC CS1# HDD ACTIVE# GROUND GROUND CN7: Compact Flash Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GROUND VCC-IN CHECK1 DATA 3 DATA 11 DATA 4 DATA 12 DATA 5 DATA 13 DATA 6 DATA 14 DATA 7 DATA 15 HDC_CS0#...
  • Page 109 PPC-5350GS Flat Panel PC DATA 10 VCC-IN CHECK2 GROUND CN1.A : CRT Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION GREEN GROUND BLUE DDCDAT GROUND HSYNC GROUND VSYNC GROUND DDCCLK GROUND CN1.B : COM1 Connector(RS-232) PIN NO. DESCRIPTION PIN NO. DESCRIPTION...
  • Page 110 CTS3 DTR3 TX3+ TX3- RX3+ RX3- COM4 : COM4(10-pin Pin Header) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD3 DSR3 RTS3 CTS3 DTR3 COM5 and COM6 : COM5 & COM6(10-pin Pin Header) PIN NO. DESCRIPTION PIN NO. DESCRIPTION DCD3 DSR3 RTS3 CTS3 DTR3 KB_MS1 : PS/2 Keyboard &...
  • Page 111 PPC-5350GS Flat Panel PC USBGND0 USBGND1 USB2: USB(2~3) Connector(2*4 Pin header) PIN NO. DESCRIPTION PIN NO. DESCRIPTION USBVCC2 USBGND3 USBGND2 USBVCC3 USB3, USB4: USB(4~5) Connector(1*5 Pin header) PIN NO. DESCRIPTION PIN NO. DESCRIPTION USBVCC4 LAN1: DUAL RJ45 Connector PIN NO.
  • Page 112 CN8: LCD LVDS Interface Connector PIN NO. Description PIN NO. Description LVDS_Y3+ LVDS_Y3- LVDS_CLK+ LVDS_CLK- LVDS_Y2+ LVDS_Y2- LVDS_Y1+ LVDS_Y1- LVDS_Y0+ LVDS_Y0- LVDSB_Y3+ LVDSB_Y3- LVDSBCLK+ LVDSBCLK- LVDSB_Y2+ LVDSB_Y2- LVDSB_Y1+ LVDSB_Y1- LVDSB_Y0+ LVDSB_Y0- VCC_LCD VCC_LCD VCC_LCD VCC_LCD CN3: Inverter Power Connector – JST/2.0mm G PIN NO.
  • Page 113 PPC-5350GS Flat Panel PC 5VSB DIO1: 8 Bits GPIO Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC5 GPIO0 GPIO1 GPIO2 GPIO3 GPIO4 GPIO5 GPIO6 GPIO7 CPU_FAN1, SYS_FAN1, SYS_FAN2: Fan Connectors PIN NO. DESCRIPTION Fan Speed Detect +12V AUDIO1: Audio Connector (1*3 pin header) PIN NO.
