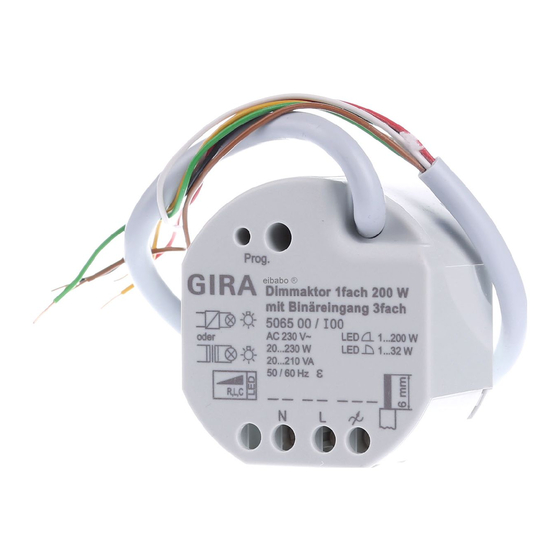

Dimming actuator 1-gang 200 W with binary input, 3-gang
Dimming actuator 1-gang 200 W with binary input, 3-gang
Order no.: 5065 00
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The device may not be opened or operated outside the technical specifications.
Danger of electric shock. Device is not suitable for disconnection from supply voltage. The load
is not electrically isolated from the mains even when the output is switched off.
Danger of electric shock. Make sure during the installation that there is always sufficient insula-
tion between the mains voltage and the bus. A minimum distance of at least 4 mm must be
maintained between bus conductors and mains voltage cores.
Danger of electric shock on the KNX installation. Do not connect any external voltage to the in-
puts. The device might be damaged, and the SELV potential on the KNX bus line will no longer
be available.
Fire hazard. For operation with inductive transformers, each transformer must be fused on the
primary side in accordance with the manufacturer's instructions. Only safety transformers ac-
cording to EN 61558-2-6 may be used.
Risk of destruction of the dimmer and load if the set operating mode and load type do not
match. Set the correct dimming principle before connecting or exchanging the load.
These instructions are an integral part of the product, and must remain with the end customer.
2
Device components
(1)
Programming LED
(2)
Programming button
(3)
Control cable (KNX connection and extension inputs)
(4)
Load connection (dimming output)
82404402

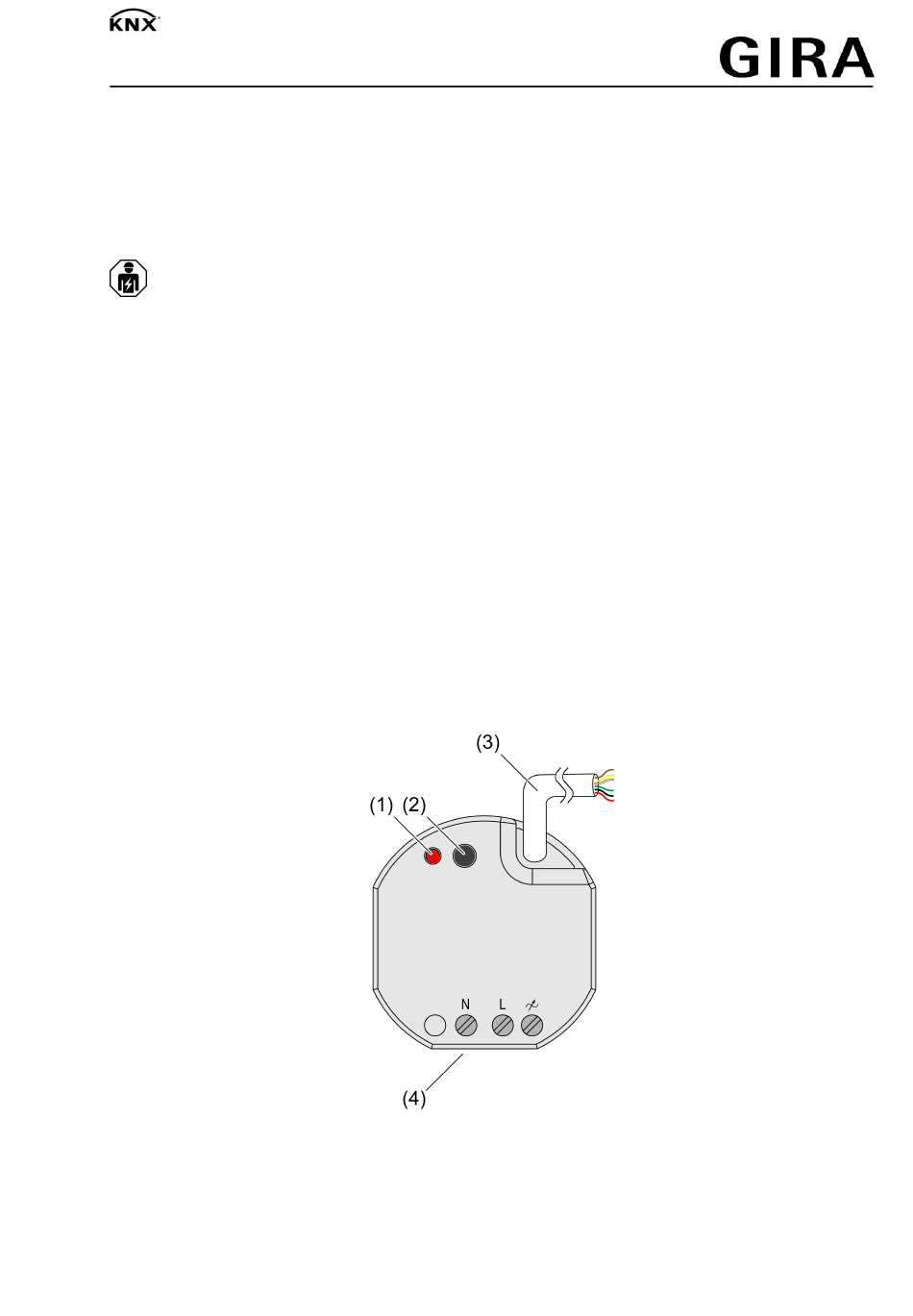

Figure 1: Device components
02.02.2021
1 / 10

Advertisement

Table of Contents
loading

Related Manuals for KNX GIRA

Summary of Contents for KNX GIRA

  • Page 1 Danger of electric shock on the KNX installation. Do not connect any external voltage to the in- puts. The device might be damaged, and the SELV potential on the KNX bus line will no longer be available.
  • Page 2 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed tech- nical knowledge obtained in KNX training courses is a prerequisite to proper understanding. The function of this device depends upon the software. Detailed information on loadable soft- ware and attainable functionality as well as the software itself can be obtained from the manu- facturer´s product database.

  • Page 3: Information For Electrically Skilled Persons

    Dimming actuator 1-gang 200 W with binary input, 3-gang – Updateable with Gira ETS Service App Dimming operation characteristics – Automatic or manual selection of the dimming principle suitable for the load – Protected against no-load, short-circuit and overheating –...

  • Page 4: Fitting And Electrical Connection

    DANGER! When connecting the bus/extensions and mains voltage wires in a shared appliance box, the KNX bus line may come into contact with the mains voltage. This endangers the safety of the entire KNX installation. People at remote devices may also receive an electric shock.
  • Page 5 4.2 Commissioning Commissioning the device In the as-delivered state, the actuator is passive, i.e. no telegrams are transmitted to the KNX. The output is set to the universal dimming principle with automatic recognition of the load type. Control of the output is possible via inputs 1 and 2, provided the bus voltage is switched on. In- put 3 has no function.

  • Page 6: Technical Data

    5 s. Restoring the device to factory settings Devices can be reset to factory settings with the Gira ETS Service App. This function uses the firmware contained in the device that was active at the time of delivery (delivery state). Restor- ing the factory settings causes the devices to lose their physical address and configuration.
  • Page 7 Dimensions (W × H × D) 48 x 50 x 28 mm KNX medium TP256 Commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX 5 ... 18 mA Connection mode KNX Connection terminal on control cable...

  • Page 8: Troubleshooting

    Dimming actuator 1-gang 200 W with binary input, 3-gang Figure 7: Connected load conventional lamps Power reduction when installed in wooden or dry construction walls -15% when installed in multiple combinations -20% Clampable conductor cross-section single stranded 0.5 ... 4 mm² Finely stranded without conductor sleeve 0.5 ...
  • Page 9 Dimming actuator 1-gang 200 W with binary input, 3-gang With the "Universal" setting: Define the dimming principle manually. Connected HV-LED lamps or compact fluorescent lamps in the lowest dimming position are too bright; dimming range is too small Cause 1: The set minimum brightness is too high. Reduce minimum brightness.

  • Page 10: Warranty

    The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error description to your re- sponsible salesperson (specialist trade/installation company/electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
