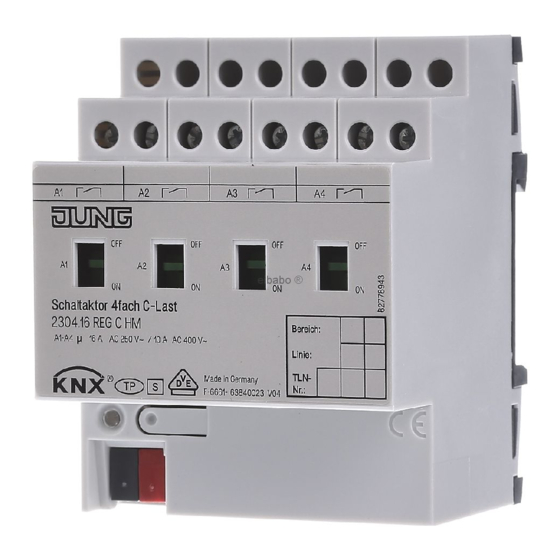

KNX Jung 2304.16 REG HE Operating Instructions Manual

KNX Jung 2304.16 REG HE Operating Instructions Manual

Switch actuator / blinds actuator

Advertisement

Quick Links

Switch actuator / blinds actuator
Switch actuator, 4-gang / blinds actuator, 2-gang
Art. No. 2304.16 REG HE
Switch actuator, 8-gang / blinds actuator, 4-gang
Art. No. 2308.16 REG HE
Switch actuator, 16-gang / blinds actuator, 8-gang
Art. No. 2316.16 REG HE
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock on the SELV or PELV installation. Do not connect any loads for
SELV, PELV, or FELV together.
For parallel connection of several drives to an output it is essential to observe the
corresponding instructions of the manufacturers, and to use a cut-off relay if necessary.
There is otherwise risk of irreparable damage to the drives.
Use only Venetian blind drives with mechanical or electronic limit switches. Check the
limit switches for correct adjustment. Observe the specifications of the motor
manufacturers. Device can be damaged.
Do not connect any three-phase motors. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end
customer.

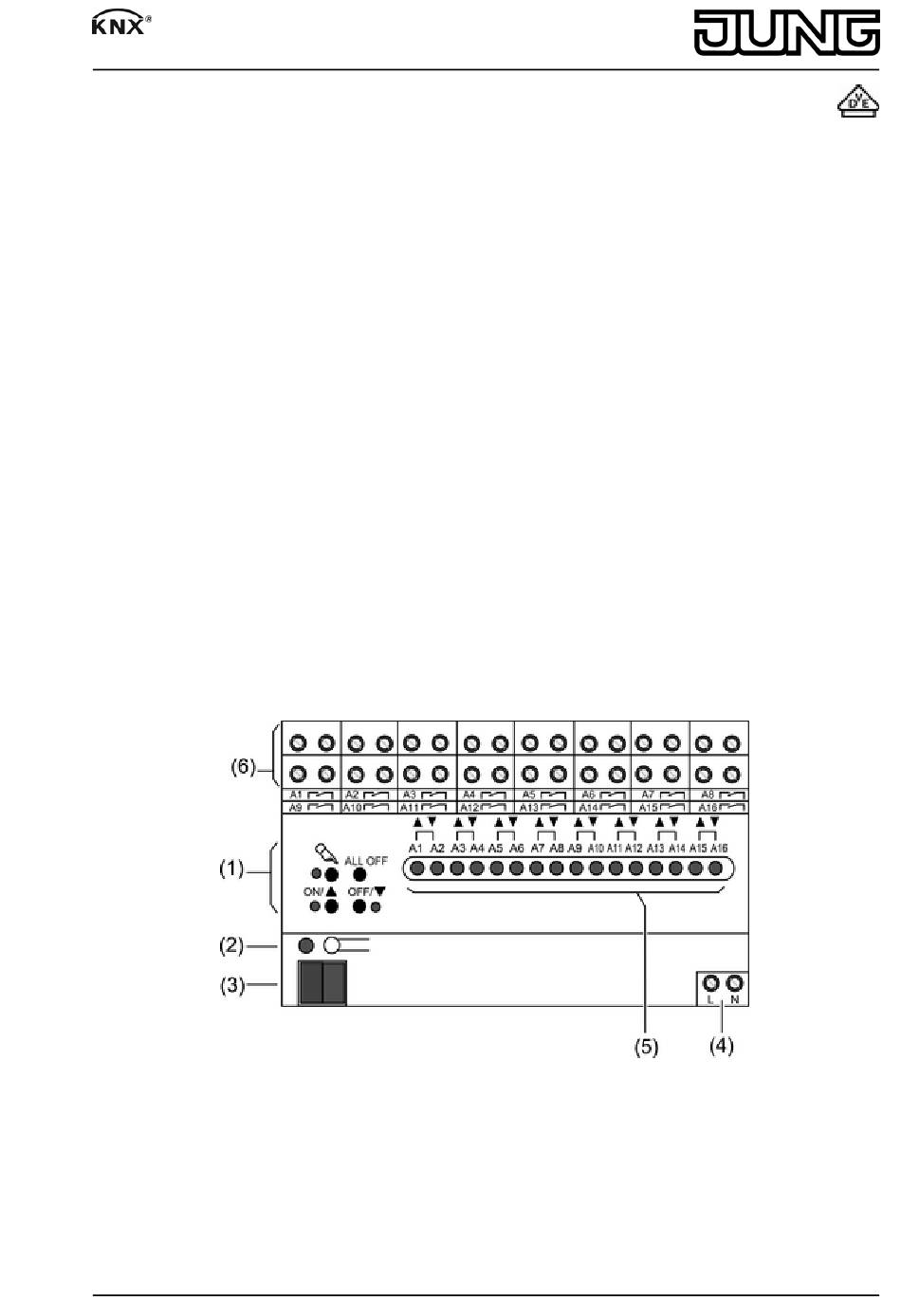

2 Device components
(1) Button field for manual operation
(2) Programming button and LEDs
(3) KNX connection
(4) Connection for mains supply
(5) Status LEDs for outputs
(6) Connection for loads
82560023
J:0082560023
Figure 1
1/11
05.08.2013

Advertisement

loading
Need help?

Need help?

Do you have a question about the Jung 2304.16 REG HE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for KNX Jung 2304.16 REG HE

  • Page 1 These instructions are an integral part of the product, and must remain with the end customer. 2 Device components Figure 1 (1) Button field for manual operation (2) Programming button and LEDs (3) KNX connection (4) Connection for mains supply (5) Status LEDs for outputs (6) Connection for loads 82560023 1/11 05.08.2013...
  • Page 2 Switch actuator / blinds actuator 3 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding. The function of this device depends upon the software. Detailed information on loadable software and attainable functionality as well as the software itself can be obtained from the manufacturer´s product database.
  • Page 3: Operation

    Switch actuator / blinds actuator 4 Operation Operating elements Figure 2 (5) Status LEDs for outputs (7) Button c – Manual operation (8) LED c – On: Continuous manual mode active (9) Button ON/n - Switching on or move hanging up / stop (10) LED ON/n –...
  • Page 4 Switch actuator / blinds actuator Priorities for blinds operation Highest priority: manual mode 2nd priority: forced position 3rd priority: safety function 4th priority: sun protection Lowest priority: bus mode: moving up/down, slat positioning, scenes, positioning Switching on the temporary manual control Operation using the button field is programmed and not disabled.
  • Page 5 Switch actuator / blinds actuator i Short-term manual operation: After running through all of the outputs the device exits manual mode after another brief press. Switching off all outputs / Stopping all hangings The device is in continuous manual mode. Press the ALL OFF button.
  • Page 6 Switch actuator / blinds actuator Connecting the device Figure 3 Connect bus line with connecting terminal. Connect mains voltage supply. i Delivery state: Outputs can be operated using button field, construction site mode. All outputs are set as blind/shutter outputs. Connecting switched loads Output is parameterised as a switching output.
  • Page 7 Switch actuator / blinds actuator Connecting blind/shutter drives For blind/shutter drives, each pair of adjacent relay outputs forms a blind/shutter output. In each case the left-hand relay output A1, A3... is intended for the up direction, and the right-hand load output A2, A4...
  • Page 8 Switch actuator / blinds actuator Install cover on top of the bus terminal so that it snaps into place (figure 6). Removing the cover Figure 7: Removing the cover Press the cover to the side and pull it off (figure 7). 5.2 Commissioning Measuring the hanging and slat operation time The blind/shutter travelling time is important for position and scene runs.
  • Page 9: Troubleshooting

    290 g Art. No. 2316.16 REG HE approx. 460 g KNX medium TP 1 Commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Power consumption KNX typical 150 mW Connection type for bus Connection terminal 6.2 Troubleshooting Manual control with button field not possible Cause 1: Manual control has not been programmed.
  • Page 10: Warranty

    Switch actuator / blinds actuator Cause 2: Manual control via bus disabled. Enable manual control. Output cannot be operated. Cause: Output is disabled. Cancel disabling. None of the outputs can be operated. Cause 1: All of the outputs are disabled- Cancel disabling.
  • Page 11 Switch actuator / blinds actuator ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle Telefon: +49.23 55.8 06-0 Telefax: +49.23 55.8 06-2 04 kundencenter@jung.de www.jung.de Service Center Kupferstr. 17-19 44532 Lünen Germany 82560023 11/11 05.08.2013 J:0082560023...
