Presence detector Mini
Presence detector Comfort Mini
Order no.: 2225 00
Presence detector Standard Mini
Order no.: 2220 00
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end customer.
2
Battery safety instructions
This device or its accessories are supplied with batteries in the form of button cells.
DANGER! Batteries can be swallowed. This can lead directly to death by suffocation. Danger-
ous substances may cause severe internal burns leading to death within 2 hours.
Keep new and used batteries away from children.
Do not use devices if the battery compartment does not close securely and keep away from
children.
If you suspect that a battery has been swallowed or is in any orifice of the body, seek immediate
medical attention.
WARNING! Improper handling of batteries can result in explosion, fire or chemical burn due to
leakage.
Do not heat or throw batteries into fire.
Do not reverse polarity, short-circuit or recharge batteries.
Do not deform or disassemble batteries.
Replace batteries only with an identical or equivalent type.
Remove empty batteries immediately and dispose of in an environmentally friendly manner.
3
Device components
32589822
10867613

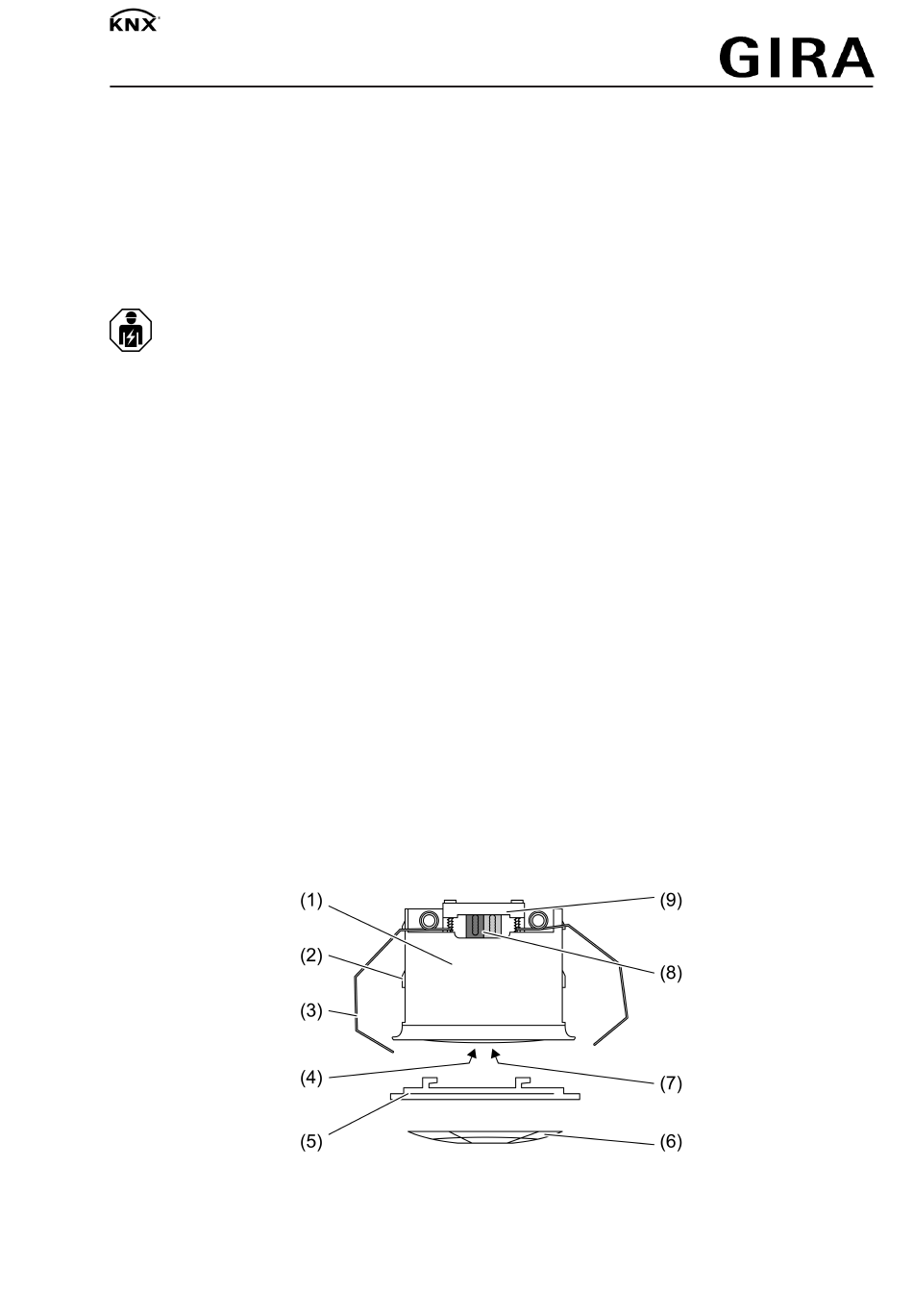

Figure 1: Device components
25.02.2020
1 / 13
Advertisement
Table of Contents
Related Manuals for KNX GIRA
Summary of Contents for KNX GIRA
- Page 1 Presence detector Mini Presence detector Comfort Mini Order no.: 2225 00 Presence detector Standard Mini Order no.: 2220 00 Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. Do not press on the sensor window.
- Page 2 Presence detector Mini Figure 2: Device components Presence detector Guide for friction springs Spring clamp Programming button, red Design ring Cover Sensitivity switch, blue Bus connection Cable fixation (10) Brightness sensor Function Intended use – Requirement-oriented control of lighting, room thermostats and other electrical consumers in interior rooms –...
-
Page 3: Operation
Presence detector Mini – Switch on: Motion detection and brightness threshold not reached – Switch off: No motion in the detection field and run-on-time elapsed or brightness threshold exceeded Motion detector function: – Detection of motions for passageway security in buildings –... - Page 4 Presence detector Mini Button Function Ó, Ô Function block 1: Extend minimum run-on-time (10 seconds) individually Set-up buttons of IR remote control Button Function Ù Walking test – Check detection field Ú Reset sensitivity, brightness threshold and run-on-time to presetting. Press for at least 3 seconds Operation with IR remote control If enabled, function block 1 can be operated manually by remote control.
- Page 5 Presence detector Mini Information for electrically skilled persons 6.1 Fitting and electrical connection Motion detection Figure 3: Tangential and radial direction of motion The device has a detection field of 360°. The diameter of the detection field depends on the in- stallation height and the direction of motion of persons in the detection field (Figure 4).
- Page 6 Presence detector Mini Installation height 1: 4.00 m 14 m 10 m 7.5 m*) – *) 5.00 m 17 m 11 m 8 m*) – *) Range for tangential movement on the ground Range for radial movement on the ground Range for typical movements at desks, e.g.
- Page 7 Presence detector Mini Figure 6: Arrangement of the areas A, B and C Brightness detection The brightness sensor (8) is attached on the side and thus enables an asymmetric measuring surface. In this way, for example, it is possible to include several work places in the measure- ment without any laterally entering light distorting the measurement.
- Page 8 Presence detector Mini ￭ Select a vibration-free installation location. Vibrations can lead to unwanted switching. ￭ Avoid interference sources in the detection area. Interference sources, e.g. heaters, vent- ilation, air conditioners, and cooling light bulbs can lead to unwanted detections. If necessary, the detection field can be limited using the push-on cover in order to minim- ize the influence of interference sources.
- Page 9 Presence detector Mini Mounting friction springs for box mounting Figure 9 For mounting in flush-mounted box or surface-mounted housing. ￭ Remove spring clamp (3) (Figure 1). ￭ Push friction springs (13) in the right orientation on the guides (2) from behind until they snap into place (Figure 9).
- Page 10 Presence detector Mini ￭ Mount supporting frame (12) on the flush-mounted boxes (11). ￭ Connect bus line with device connection terminal. ￭ Snap the device into the supporting frame (12). ￭ Attach the large design ring (14) and rotate it in clockwise direction. ￭...
-
Page 11: Disposal Of Batteries
According to statutory provisions, the end consumer is obligated to return used batteries. Technical data KNX medium TP256 Commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX max. 10 mA Connection type for bus device connection terminal Protection class Ambient temperature -25 ... -
Page 12: Troubleshooting
Presence detector Mini Detection angle 360° Range Ø approx. 12 m (installation height 3 m) Brightness sensor Measuring range 10 ... 2000 lx Accuracy > 80 lx ± 5% Accuracy ≤ 80 lx ± 10 lx Only for "Comfort" version: Temperature sensor Measuring range approx. -20 ... +55 °C Accuracy ±... -
Page 13: Warranty
The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error description to your re- sponsible salesperson (specialist trade/installation company/electrical specialist trade). They will forward the devices to the Gira Service Center. Gira Giersiepen GmbH & Co. KG...
