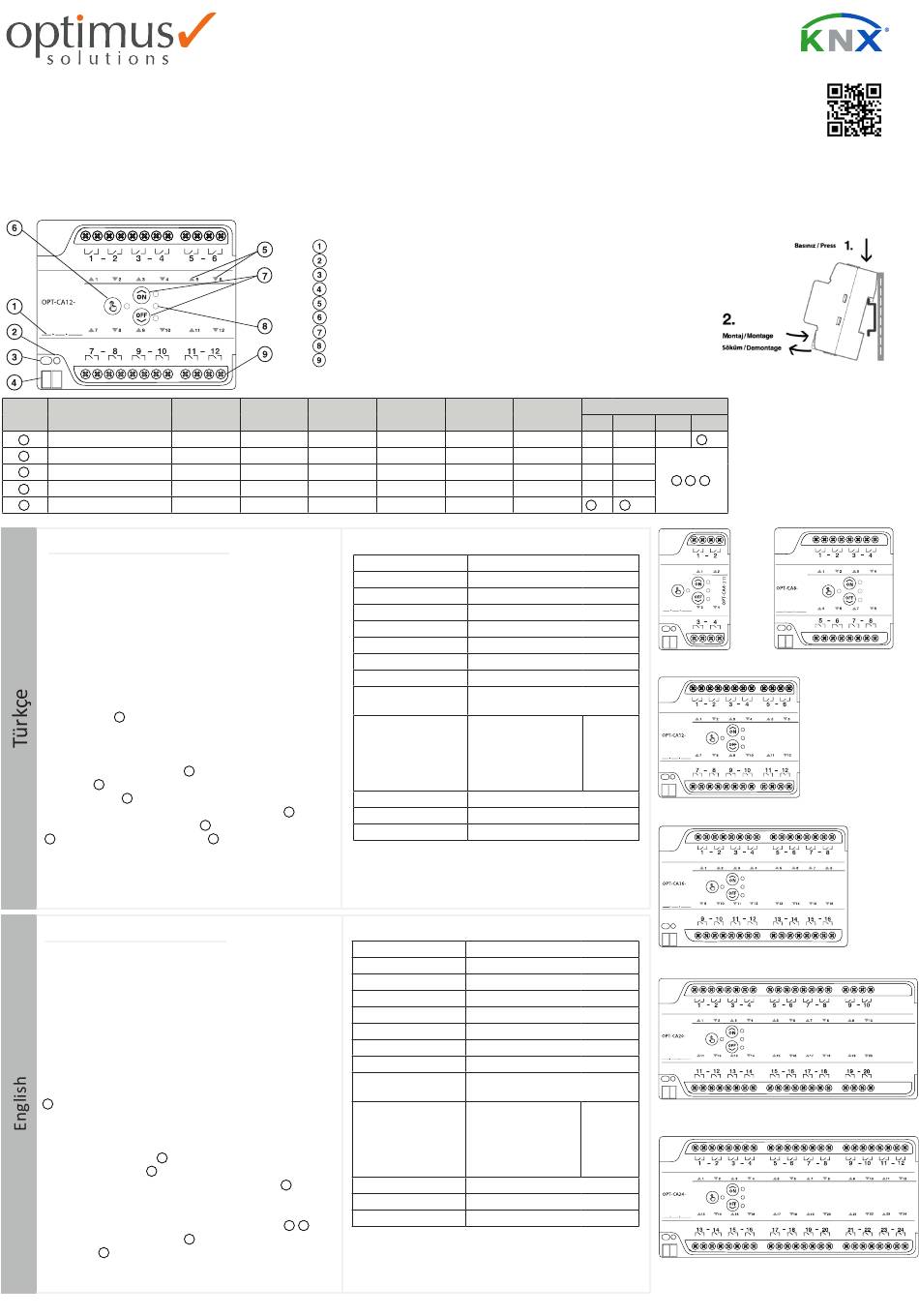

OPT-CA4-211
Kombine Aktuatör 4 kanal - Combo Actuator 4 channels
OPT-CA8-211
Kombine Aktuatör 8 kanal - Combo Actuator 8 channels
OPT-CA12-211
Kombine Aktuatör 12 kanal - Combo Actuator 12 channels
OPT-CA16-211
Kombine Aktuatör 16 kanal - Combo Actuator 16 channels
OPT-CA20-211
Kombine Aktuatör 20 kanal - Combo Actuator 20 channels
OPT-CA24-211
Kombine Aktuatör 24 kanal - Combo Actuator 24 channels
211
Function
Count of Function
Nr
A
3-Speed Fan Coil Controller
B
2-Speed Fan Coil Controller
C
3-Point Valve Controller
D
Shutter Control
E
Switch/Valve Control
Kombine Aktuatör
Genel Özellikler
OPT-CAxx-211 farklı kullanım amaçlarını bir arada sunan KNX
uyumlu otomasyon cihazıdır. Şalter/Valf, Perde/Panjur, 3-Nokta
Motor ve Fan Coil kontrol işlemleri tek bir cihaz üzerinden
yapılabilir. 4, 8, 12, 16, 20 ve 24 kontak çıkışı içeren modelleri
bulunmaktadır. Bağlantı tablosu üstte gösterilmiştir.
İzleme ve Manuel Kontrol: Cihaz üzerindeki tuşlar ile tüm
kontrollere erişilebilir. Cihaz üzerindeki üçgen LED göstergeler
ilgili çıkışın kontak durumunu gösterir (bağlantının normalde
açık veya kapalı olma durumunu dikkate alınız). El sembolünün
bulunduğu tuş 6 , cihazın manuel kontrole geçmesi veya manuel
kontrolden çıkması için kullanılır. Tuşa 2 saniye kadar basıldığında
cihaz manuel moda girer veya bu moddan çıkar. Cihaz manuel
modda iken tuşun yanındaki LED yanar, ilk fonksiyon çıkış(lar)
ına ait üçgen durum LED(ler)i 5 yanıp söner. Fonksiyon kontrol
tuşları ile 7 ilgili fonksiyonun çalışması kontrol edilir. Ortadaki
üç LED gösterge 8 , seçilen fonksiyonun durumunu gösterir.
Bağlantılar: Cihazın besleme ve iletişim bağlantısı 4 numaralı
standart KNX klemensi ile yapılır. 3 cihazın adresleme tuşudur.
2 cihazın adresleme göstergesidir. 1 cihaza atanmış olan adre-
sin yazım alanıdır.
Combo Actuator
General Specifications
OPT-CAxx-211 is a KNX compatible automation device that offers
different usage purposes together. Switch/Valve, Curtain/Blinds,
3-Point Motor and Fan Coil control operations can be done
on a single device. There are models with 4, 8, 12, 16, 20 and
24 contact outputs. The connection table is shown at the top.
Monitoring and Manual Control: All controls can be accessed
with the keys on the device. Triangular LED indicators on the
device show the contact status of the relevant output (consider
whether the connection is normally open or closed). The button
6 with the hand symbol allows the device to switch to or exit
from manual control. When the button is pressed for 2 seconds,
the device enters or exits the manual mode. When the device
is in manual mode, the LED next to the button lights up, the
triangular status LED(s) 5 of the first function output(s) flash.
Function control keys 7 are used to check the operation of the
relevant function. The three central LED indicators 8 show the
status of the selected function.
Connections: The supply and communication connection of
the device is made with the standard KNX terminal 4 . 3 is the
addressing key of the device. 2 is the addressing indicator of
the device. 1 is the writing field of the address assigned to the
device.
Adres Yazma Alanı / Address Writing Area
Adresleme Göstergesi / Addressing Indicator
Adresleme Butonu / Addressing Button
KNX Hat Bağlantısı / Data Bus
Çıkış Durum Göstergeleri / Output Status Indicators
Manual Mod Tuşu ve Göstergesi / Manual Mode Key and Indicator
Fonksiyon Kontrol Tuşları / Function Control Keys
Fonksiyon Durum Göstergesi / Function Status Indicator
Bağımsız Girişli Çıkış Terminalleri / Outputs with Individual Source
OPT-CA4-211
OPT-CA8-211
OPT-CA12-211
1
2
3
1
2
3
2
4
6
2
4
6
4
8
12
OPT-CA16-211
OPT-CA20-211
OPT-CA24-211
4
5
6
4
5
6
8
10
12
8
10
12
16
20
24
Teknik Özellikler
Besleme gerilimi
KNX 30 VDC
KNX akım tüketimi
Max. 10mA
KNX mod
S-Mod
Bağlantı
KNX Bağlantı
Koruma sınıfı
IP 20
Montaj
DIN Rayı
Çıkış sayısı
4, 8, 12, 16, 20 veya 24
Çıkış anahtarlama akımları
16A 277 VAC
Çalışma
Sıcaklık aralıkları
Saklama
Ölçüler ve Ağırlık
(GxYxD)
4 kanal
54 x 92 x 64 mm (3 MW)
8 kanal
90 x 92 x 64 mm (5 MW)
12 kanal
108 x 92 x 64 mm (6 MW)
16 kanal
144 x 92 x 64 mm (8 MW)
20 kanal
198 x 92 x 64 mm (11 MW)
24 kanal
198 x 92 x 64 mm (11 MW)
Muhafaza
ABS V0
Bağlantı Terminalleri
4 mm² çok damar, 6 mm² tek damar
Sertifika
CE
*MW: Sigorta Genişliği (18 mm)
Technical Specifications
Supply Voltage
KNX 30 VDC
KNX Current Consumption
Max. 10mA
KNX mode
S-Mode
Connection
KNX Connection
Protection Class
IP 20
Mounting
DIN Rail
Number of Output
4, 8, 12, 16, 20 or 24
Output switching currents
16A 277 VAC
Operation
Temperature Range
Storage
Dimensions and Weight
(WxHxD)
4 channels
54 x 92 x 64 mm (3 MW)
8 channels
90 x 92 x 64 mm (5 MW)
12 channels
108 x 92 x 64 mm (6 MW)
16 channels
144 x 92 x 64 mm (8 MW)
20 channels
198 x 92 x 64 mm (11 MW)
24 channels
198 x 92 x 64 mm (11 MW)
Housing
ABS V0
Connection Terminals
4 mm² multicore, 6 mm² single core
Certificate
CE
*MW: Module Width (18 mm)
Wiring
x1
x2
x3
x4
Low
Medium High
E
Low
High
Open Close
C D E
Up
Down
E
E
OPT-CA4-211
-5...+45 °C
-25...+55 °C
Net - Brüt
143g - 168g
211
230g - 261g
297g - 334g
382g - 424g
531g - 581g
531g - 581g
OPT-CA12-211
211
OPT-CA16-211
211
-5...+45 °C
-25...+55 °C
OPT-CA20-211
Net - Gross
143g - 168g
230g - 261g
297g - 334g
382g - 424g
531g - 581g
531g - 581g
211
OPT-CA24-211
