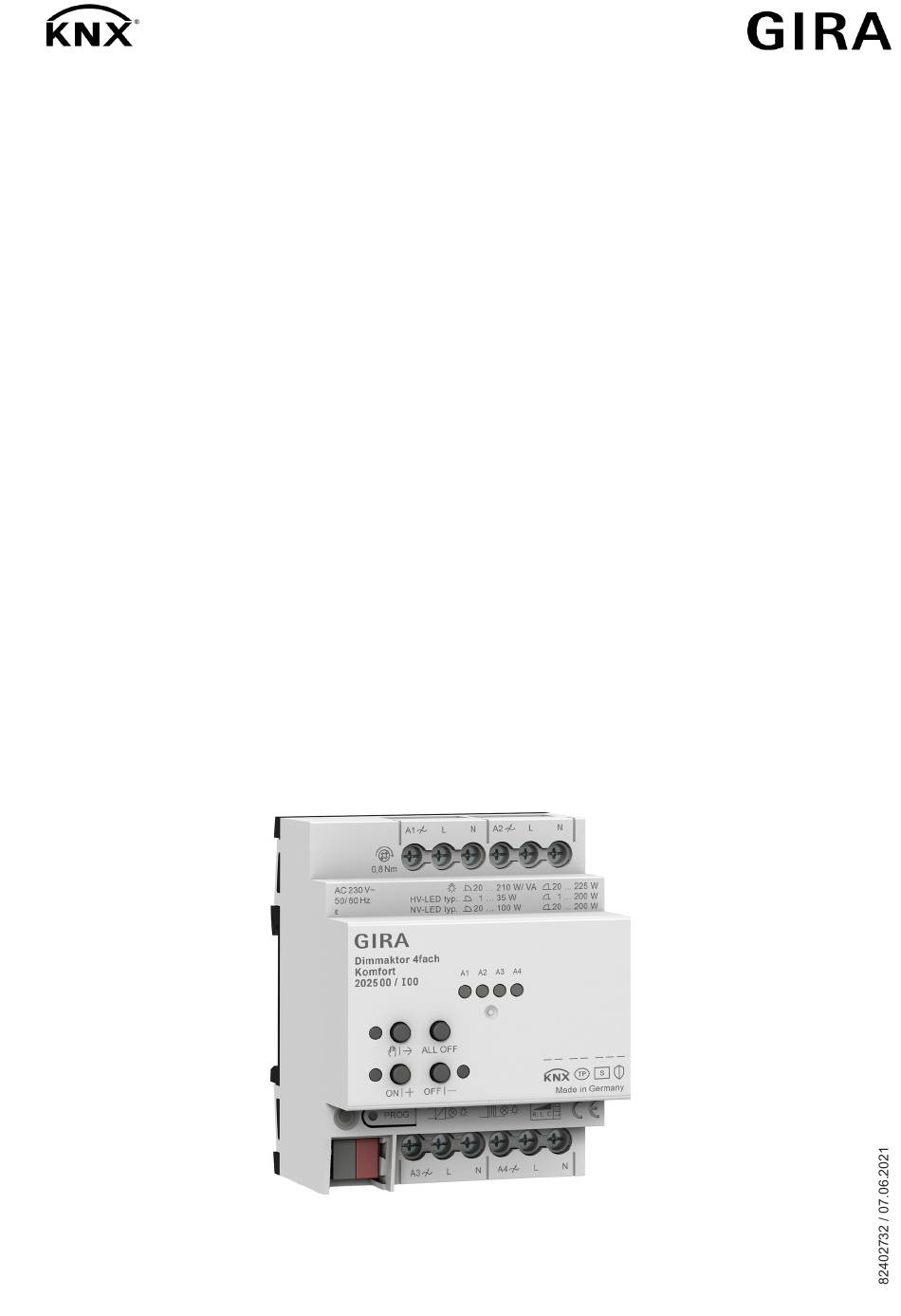

- Page 1 Operating instructions Dimming actuator, 4-gang Standard Order no. 2015 00 Dimming actuator, 4-gang Komfort Order no. 2025 00...
-
Page 2: Table Of Contents
Dimming actuator, 4-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Operation .......................... 6 Information for electrically skilled persons ................ 8 Mounting and electrical connection................ 8 Commissioning .................... 10 Technical data ......................... 11 Troubleshooting ...................... 13 Accessories ........................ 16 Warranty.......................... 16 82402732 07.06.2021 2 / 16... -
Page 3: Safety Instructions
This manual is an integral part of the product, and must remain with the end cus- tomer. Device components Image 1: Device components Button field for manual operation Programming button and LED KNX connection Status LEDs for outputs Load connections 82402732 07.06.2021 3 / 16... -
Page 4: Function
Dimming actuator, 4-gang Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding. The function of this device depends upon the software. Detailed information on load- able software and attainable functionality as well as the software itself can be ob- tained from the manufacturer´s product database. - Page 5 Feedback in manual mode and in bus mode – Disabling of individual outputs via bus – Status feedback – KNX Data Secure compatible – Updateable with ETS Service App Only for "Comfort" version: – Disabling of individual outputs manually or by bus Dimming operation characteristics –...
-
Page 6: Operation
Dimming actuator, 4-gang Operation Operating elements Image 2: Operating elements Status LEDs for outputs – on: output switched on, 1...100% – flashes at 1 Hz: short-circuit or manual mode – flashes at 2 Hz: overload, mains voltage failure or firmware update Button ǃ... - Page 7 Dimming actuator, 4-gang After a bus failure and restoration the device switches to bus operation. The manual mode can be disabled in ongoing operation via a bus telegram. Switching on temporary manual operation mode Operation using the button field is programmed and not disabled. ￭...
-
Page 8: Information For Electrically Skilled Persons
Disconnect the device. Cover up live parts. Mounting and electrical connection Connecting the device ￭ Connect bus line with KNX device connection terminal observing the correct polarity. ￭ Attach the cover cap to the KNX connection as protection against hazardous voltages. 82402732 07.06.2021 8 / 16... - Page 9 Dimming actuator, 4-gang CAUTION! Danger of destruction. 400 V are shorted when outputs switched in parallel are con- nected to different outer phase conductors. The device will be destroyed. Always connect outputs switched in parallel to the same outer phase conductor. Delivery state: The outputs can be operated with manual control.
-
Page 10: Commissioning
Wait about 15 s. ￭ Press and hold down the programming button. ￭ Switch on the bus voltage or attach the KNX device connection terminal. Re- lease the programming button only after the programming LED starts flashing slowly. The safe-state mode is activated. -
Page 11: Technical Data
Restoring the factory settings causes the devices to lose their physical address and configuration. Technical data KNX medium TP256 KNX commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX 6 ... 15 mA... - Page 12 Dimming actuator, 4-gang Power loss max. 7 W Standby power approx. 0.16 W per channel Ambient temperature -5 ... +45 °C Storage/transport temperature -25 ... +70 °C Connected load per channel depends on the connected lamps and the set load type: (see figure 4), (see figure 5) Load type parameter universal (with automatic calibration procedure)
-
Page 13: Troubleshooting
Dimming actuator, 4-gang Image 5: conventional lamp loads Capacitive-inductive mixed load is not permitted. Power boosters See power booster instructions Connection Single stranded 0.5 ... 4 mm² Finely stranded without conductor sleeve 0.5 ... 4 mm² Finely stranded with conductor sleeve 0.5 ... - Page 14 Dimming actuator, 4-gang For LV-LED: Check the lamp operating device and replace as necessary. With the "Universal" setting: Define the dimming principle manually. Connected HV-LED lamps or compact fluorescent lamps in the lowest dimming position are too bright; dimming range is too small Cause 1: The set minimum brightness is too high.
- Page 15 Dimming actuator, 4-gang When a short-circuit occurs during the calibration process, the load calibrates itself again after the short-circuit is eliminated. Cause 4: load failure. Check load, replace lamp. For inductive transformers, check primary fuse and replace if necessary. Manual control with button field not possible Cause 1: Manual control has not been programmed.
-
Page 16: Accessories
Dimming actuator, 4-gang Accessories Compensation module LED Order no. 2375 00 Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. Please submit or send faulty devices postage paid together with an error de- scription to your responsible salesperson (specialist trade/installation company/elec- trical specialist trade).
