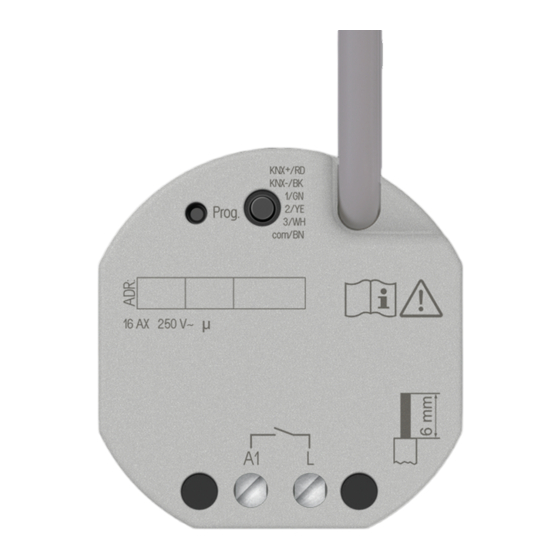

Switch actuator, 1-gang
Switch actuator, 1-gang
Art. no.: 230011SU
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The device may not be opened or operated outside the technical specifications.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Make sure during the installation that there is always sufficient insula-
tion between the mains voltage and the bus. A minimum distance of at least 4 mm must be
maintained between bus conductors and mains voltage cores.
Danger of electric shock on the KNX installation. Do not connect any external voltage to the in-
puts. The device might be damaged, and the SELV potential on the KNX bus line will no longer
be available.
These instructions are an integral part of the product, and must remain with the end customer.
2

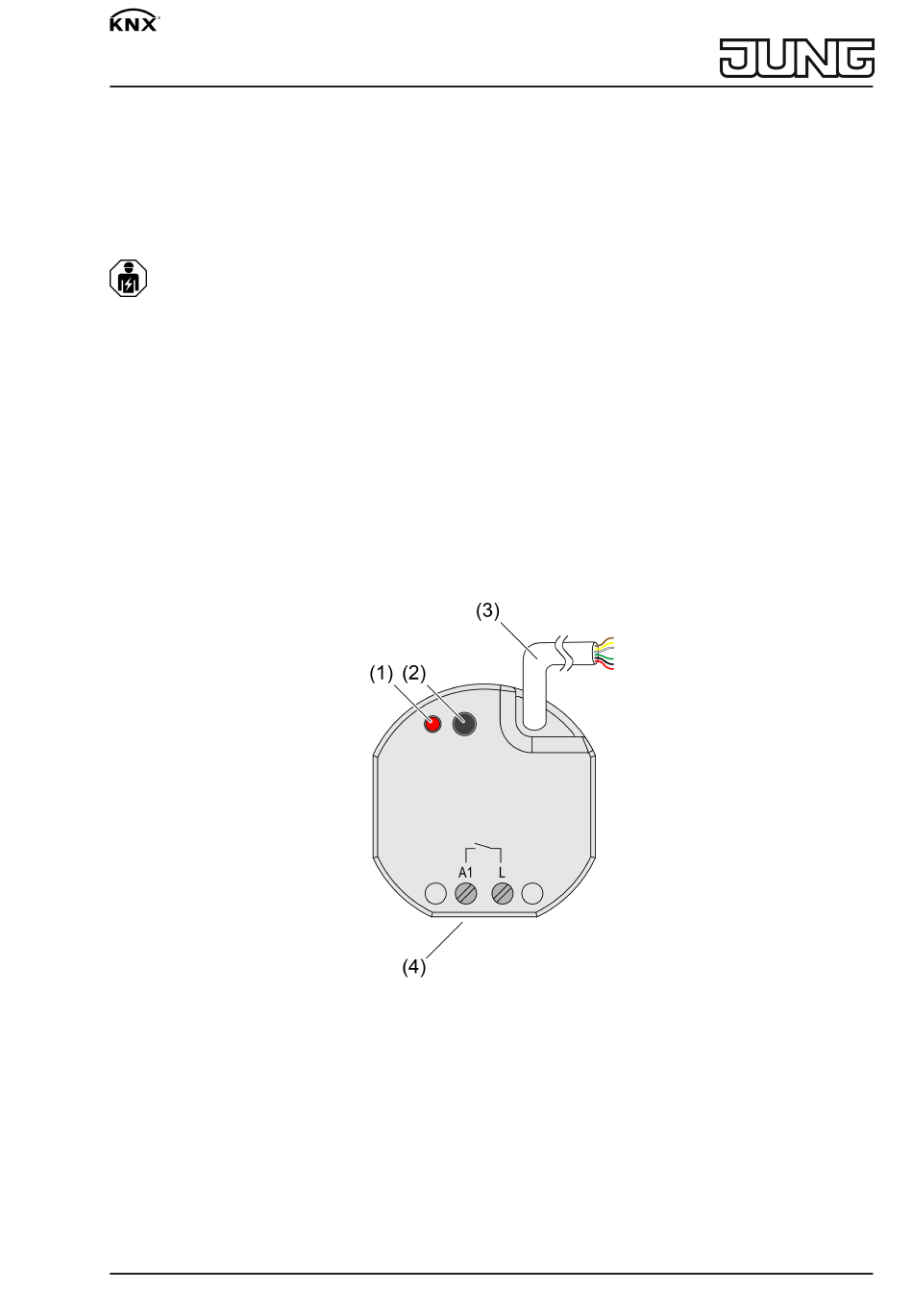

Device components
(1)
Programming LED
(2)
Programming button
(3)
Control cable (KNX connection and extension inputs)
(4)
Load connection (relay output)
82404313
J0082404313
Figure 1: Device components
1 / 8
25.05.2021
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KNX Jung 230011SU
Summary of Contents for KNX Jung 230011SU
- Page 1 Danger of electric shock on the KNX installation. Do not connect any external voltage to the in- puts. The device might be damaged, and the SELV potential on the KNX bus line will no longer be available.
- Page 2 Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed tech- nical knowledge obtained in KNX training courses is a prerequisite to proper understanding. The function of this device depends upon the software. Detailed information on loadable soft- ware and attainable functionality as well as the software itself can be obtained from the manu- facturer´s product database.
- Page 3 DANGER! When connecting the bus/extensions and mains voltage wires in a shared appliance box, the KNX bus line may come into contact with the mains voltage. This endangers the safety of the entire KNX installation. People at remote devices may also receive an electric shock.
- Page 4 Switch actuator, 1-gang – Device certificate entered/scanned or added to the ETS project. A high resolution camera should be used to scan the QR code. – Document all passwords and keep them safe. Mounting in suitable appliance box (recommendation: electronic device box with partition). Ob- serve cable routing and spacing (Figure 3)! Figure 3: Mounting example in electronic device box with partition wall, series push-button and NTC temperature sensor...
- Page 5 Undefined relay state at delivery. Unexpected control of connected loads. During commissioning, before switching on the load, ensure that all relay contacts are open by applying the KNX bus voltage. Observe commissioning sequence! ￭ Switch on the KNX bus voltage.
- Page 6 ￭ Press and hold down the programming button. ￭ Switch on the bus voltage or connect the device to KNX. Release the programming button only after the programming LED starts flashing slowly. The safe-state mode is activated. With a new brief press of the programming button, the programming mode can be switched on and off as usual also in the safe-state mode.
- Page 7 Switch actuator, 1-gang Connection mode Screw terminals Switching voltage AC 250 V ~ Switching current 16 A Fluorescent lamps 16 AX Switch-on current 200 μs max. 800 A Switch-on current 20 ms max. 165 A Connected load Ohmic load 3000 W Capacitive load max.
- Page 8 Switch actuator, 1-gang ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de 82404313 25.05.2021 8 / 8 J0082404313...
