- Page 1 Operating instructions Switching actuator / blind actuator 16 A Standard & Komfort Order no. 5023 00, 5033 00, 5028 00, 5038 00, 5030 00, 5040 00...
-
Page 2: Table Of Contents
Switching actuator / blind actuator 16 A Standard & Komfort Table of Contents Safety instructions ...................... 3 Device components...................... 3 Function .......................... 4 Operation .......................... 5 Information for electrically skilled persons ................ 9 Mounting and electrical connection.............. 10 Commissioning .................... 10 Technical data ......................... 11 Warranty.......................... 12 82402632 15.12.2022 2 / 13... -
Page 3: Safety Instructions

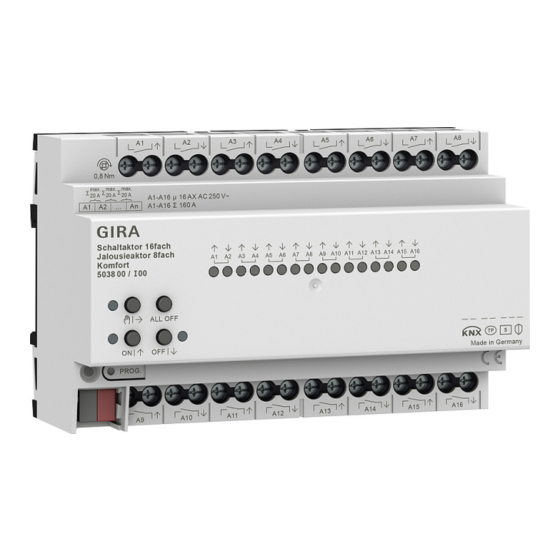

This manual is an integral part of the product, and must remain with the end cus- tomer. Device components Image 1: Device components Button field for manual operation Programming button and LED KNX connection Status LEDs for outputs Load connections (relay outputs) 82402632 15.12.2022 3 / 13... -
Page 4: Function
Switching actuator / blind actuator 16 A Standard & Komfort Function System information This device is a product of the KNX system and complies with the KNX directives. Detailed technical knowledge obtained in KNX training courses is a prerequisite to proper understanding. -
Page 5: Operation
Switching actuator / blind actuator 16 A Standard & Komfort – Central switching functions with collective feedback – Time functions: switch-on delay, switch-off delay, staircase lighting timer with run-on time – Scene function – Operating hours counter Characteristics blinds operation –... - Page 6 Switching actuator / blind actuator 16 A Standard & Komfort Status LEDs for outputs ON: Relay output closed OFF: Relay output opened Flashes slowly: Output in manual mode selected Flashes quickly: Output disabled via continuous manual mode Button ǃ Manual operation LED ǃ...
- Page 7 Switching actuator / blind actuator 16 A Standard & Komfort The manual mode can be disabled in ongoing operation via a bus telegram. Switching on temporary manual operation mode Operation is not disabled. ￭ Press button ǃ (6) briefly. LED ǃ (7) flashes, LEDs A1... (4) of the first configured output or output pair flash.
- Page 8 Switching actuator / blind actuator 16 A Standard & Komfort Continuous manual mode is switched off. Bus operation is switched on. Switching outputs: depending on the programming, the output relays switch to the position that is active after the manual mode is switched off, e.g. logic function.
-
Page 9: Information For Electrically Skilled Persons
Switching actuator / blind actuator 16 A Standard & Komfort Re-enabling outputs The device is in continuous manual mode. One or more outputs were disabled in manual mode. ￭ Press button ǃ (6) repeatedly until the output to be unlocked or the output pair is selected. -
Page 10: Mounting And Electrical Connection
Wait about 15 s. ￭ Press and hold down the programming button. ￭ Switch on the bus voltage or attach the KNX device connection terminal. Re- lease the programming button only after the programming LED starts flashing slowly. The safe-state mode is activated. -
Page 11: Technical Data
Technical data KNX medium TP256 Commissioning mode S-mode Rated voltage KNX DC 21 ... 32 V SELV Current consumption KNX Order no. 5023 00, 5028 00, 5 ... 18 mA 5033 00, 5038 00 Order no. 5030 00, 5040 00 5 ... -
Page 12: Warranty
Switching actuator / blind actuator 16 A Standard & Komfort Switch-on current 200 μs max. 800 A Switch-on current 20 ms max. 165 A Lamp loads Incandescent lamps 2300 W HV halogen lamps 2300 W HV-LED lamps max. 400 W LV halogen lamps with electronic 1500 W transformers... - Page 13 Switching actuator / blind actuator 16 A Standard & Komfort Systeme Industriegebiet Mermbach Dahlienstraße 42477 Radevormwald Postfach 12 20 42461 Radevormwald Deutschland Tel +49(0)21 95 - 602-0 Fax +49(0)21 95 - 602-191 www.gira.de info@gira.de 82402632 15.12.2022 13 / 13...
