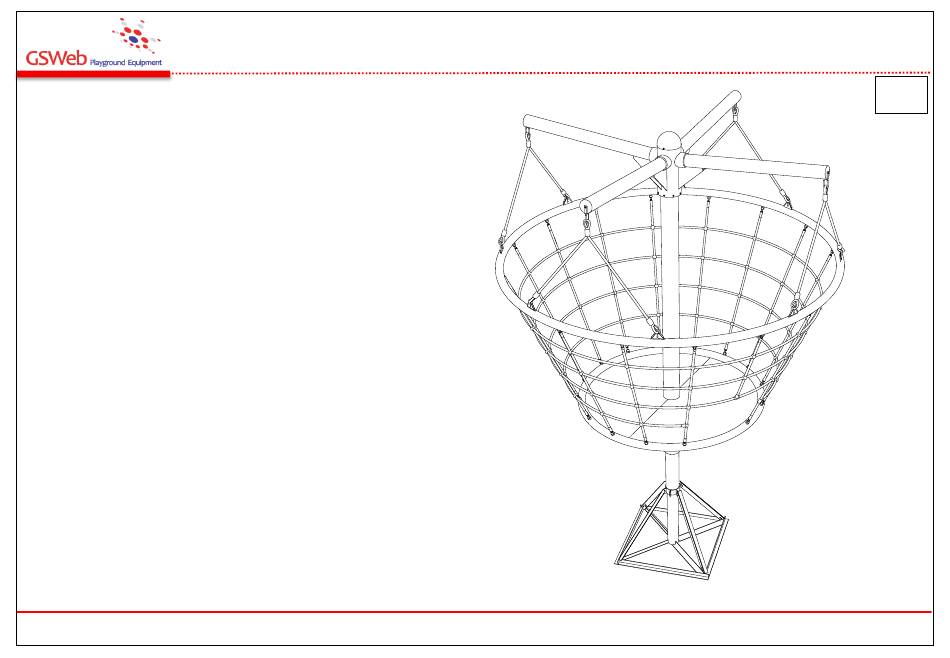

SPACE CRAFT
INSTALLATION MANUAL
Safety Checklist after first assembly
● Test intervals of Safety: 6 months
● Test Component and contents:
1. Removing the reticulated system:
- Check of removing condition each rope
- Screwing the turn buckle and conversion the turnbuckle
in anchors plate(see for this workstep turnbuckle assembly)
2. Abrasion condition of rope:
- Checking of all rope surface
- Strengthened of rope: Coating on the surface
3. Attachment condition of the anchors plate and turnbuckle
4. Screwing condition of all bolt
5. Galvanizing condition of the steel component:
- Protection of steel component from corrosion.
● Measure
In case of the appearance the defect detail is
repaired usually within 3 days after checking.
GSWeb Playground Equipment
65, Saengnim-daero 259beon-gil, Saengnim-Myeon
Gimhae-si, Gyeongsangnam-do, Republic of Korea
Tel) +82 (0)55 326 9025
E-mail) gswebinfo@chol.com
Fax) +82 (0)55 326 9026
Website) www.gsweb21.com
MODEL NO.
GS-SC2200
Rev_0
2015.05
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPACE CRAFT and is the answer not in the manual?

Questions and answers

Related Manuals for GSWeb Playground Equipment SPACE CRAFT

Summary of Contents for GSWeb Playground Equipment SPACE CRAFT

  • Page 1 MODEL NO. SPACE CRAFT INSTALLATION MANUAL GS-SC2200 Rev_0 Safety Checklist after first assembly 2015.05 ● Test intervals of Safety: 6 months ● Test Component and contents: 1. Removing the reticulated system: - Check of removing condition each rope - Screwing the turn buckle and conversion the turnbuckle in anchors plate(see for this workstep turnbuckle assembly) 2.
  • Page 2 MODEL NO. SPACE CRAFT INSTALLATION & MAINTENANCE INSTRUCTIONS GS-SC2200 Rev_0 Features 2015.05 The series is the 21st Century merry-go-round. Our special bearing system controls the rotation speed so that the children can safely enjoy the same exhilarating experience as a merry-go-round.

  • Page 3: Safety Area

    MODEL NO. SPACE CRAFT Safety area and Fall Height zone GS-SC2200 Rev_0 Safety area 2015.05 The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 ▼ Fall Height and safety area The use zone for stationary play equipment shall extend no less than 72 in.
  • Page 4 MODEL NO. SPACE CRAFT Foundation Information GS-SC2200 Rev_0 Foundation 2015.05 Measure location and dig a hole 1525mm x 1525mm x 1370mm deep centered on the center of the spacecraft !Attention It is very important to keep a bottom of the lower ring 100 mm apart from Finished level according to safety standard.

  • Page 5: Overall Assembly

    MODEL NO. SPACE CRAFT Overall Assembly GS-SC2200 Rev_0 Overall Assembly 2015.05 1. Lift the assembly and place the post into the assembled base. Use a backhoe with nylon strap or chain with safety hooks. No.3: 2. Level the post and fill with excavated ground, re-compacting excavated ground.

  • Page 6: Base Assembly

    MODEL NO. SPACE CRAFT Base Assembly GS-SC2200 Rev_0 2015.05 Assemble all parts of base as shown below No. 23: Base Half Collar No. 22 Angle Brace No. 101. M12 x L35 Bolt set No. 101. M12 x :35 Bolt set NO.21 :...
  • Page 7 MODEL NO. SPACE CRAFT Net and Ring Assembly GS-SC2200 Rev_0 2015.05 1. Thread the net around post. 2. Insert 4 pieces of arm to the head 3. Attach hanger cables to the arms 4. Assemble upper ring and attach hanger cables to the ring 5.

  • Page 8: Arm Assembly

    MODEL NO. SPACE CRAFT Arm assembly GS-SC2200 Rev_0 2015.05 Remove the eye bolt. No. 111: Hex. Bolt Set No. 114: M10 x L30 Bolt Set No. 102: M12 x L25 Bolt Set No. B: Hanger Rope No.112: M10 x L30 Bolt Set ▲...
  • Page 9 MODEL NO. SPACE CRAFT Upper Ring assembly GS-SC2200 Rev_0 2015.05 Figure-12 No. 5: Upper Ring No. 63: Nylon Joint No. 103 M10 x L25 Bolt Set No. A No. 115 Fix Bolt and Nut 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com...
  • Page 10 MODEL NO. SPACE CRAFT Overall assembly GS-SC2200 Rev_0 Assembly order 2015.05 1. Lower Ring 2. Deck 3. Adjust floor height with collar on post and the alignment of the rope 4. Tighten all the bolts 5. Install the cap No. 62 Head Cap No.
  • Page 11 MODEL NO. SPACE CRAFT Attaching Cap to Post GS-SC2200 Rev_0 2015.05 No. 63: Nylon Joint 16 sockets on the top Attach the two lower half rings with the nylon joints. Align the opening in the net with the opening in the ring fasteners before attaching the net to the ring.

  • Page 12: Deck Assembly

    MODEL NO. SPACE CRAFT Deck Assembly GS-SC2200 Rev_0 No. 109 M10 X 80 Bolt Set 2015.05 No. 41 Deck No. 105 M12 x L45 Bolt Set With L-angle No. 106: M12 x L35 Bolt Set No. 42: Deck Holder No. 104: M10 X L100 Bolt Set No.
  • Page 13 MODEL NO. SPACE CRAFT Deck Cover assembly GS-SC2200 Rev_0 No. 107 2015.05 M8 x L35 Bolt Set No. 61 L-Angle No. 41-1 No. 108 Deck Cover M8 x L20 Bolt Set ▲ Bottom View of Deck ▲ Completed bottom of Deck...
  • Page 14 MODEL NO. SPACE CRAFT Head Cap assembly GS-SC2200 Rev_0 2015.05 No. 62 Head Cap No. 113 M10 x l25 Bolt Set Remove the eye bolt before putting the cap on the top of the head 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com...
  • Page 15 MODEL NO. SPACE CRAFT PARTS LIST GS-SC2200 No. 23: Parts check list Rev_0 Base Half Collar 2015.05 No. 22 Angle Brace Hanger Rope No. 101. Outer Post M12 x L35 Bolt set Inner post Head No. 101. Upper Ring No.3:...
  • Page 16 MODEL NO. SPACE CRAFT PARTS LIST GS-SC2200 Parts check list Rev_0 No. 110 2015.05 No. 111: Eye Bolt A. Net Hex. Bolt Set No. 4: Hanger Rope Outer Post Figure-12 Inner post Head No. B: Hanger Rope Upper Ring Lower Half Ring 21.
  • Page 17 MODEL NO. SPACE CRAFT PARTS LIST GS-SC2200 Parts check list Rev_0 2015.05 Hanger Rope Outer Post No. 109 Inner post M10 X 80 Bolt Set Head No. 6: Lower half Ring Upper Ring Lower Half Ring No. 105 No. 41 21.
  • Page 18 MODEL NO. SPACE CRAFT PARTS LIST GS-SC2200 Parts check list Rev_0 2015.05 Hanger Rope Outer Post No. 107 Inner post M8 x L35 Bolt Set Head Upper Ring Lower Half Ring 21. Galvanized Base 22. Angle Brace 23. Base Half Collar 41.

  • Page 19: Maintenance

    MODEL NO. SPACE CRAFT Maintenance GS-SC2200 Rev_0 2015.05 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground;...
  • Page 20 MODEL NO. SPACE CRAFT Maintenance GS-SC2200 Rev_0 C. Routine maintenance 2015.05 To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
