- Page 2 - Protection of steel component from corrosion. ● Measure In case of the appearance the defect detail is repaired usually within 3 days after checking. GSWeb Playground Equipment 1046-3, Najeon-ri, Saengnim-myeon, Gimhae-si Gyeongsangnam-do, 621-821, Republic Of Korea Tel) +82. 55. 326. 9096~7 Fax) +82.

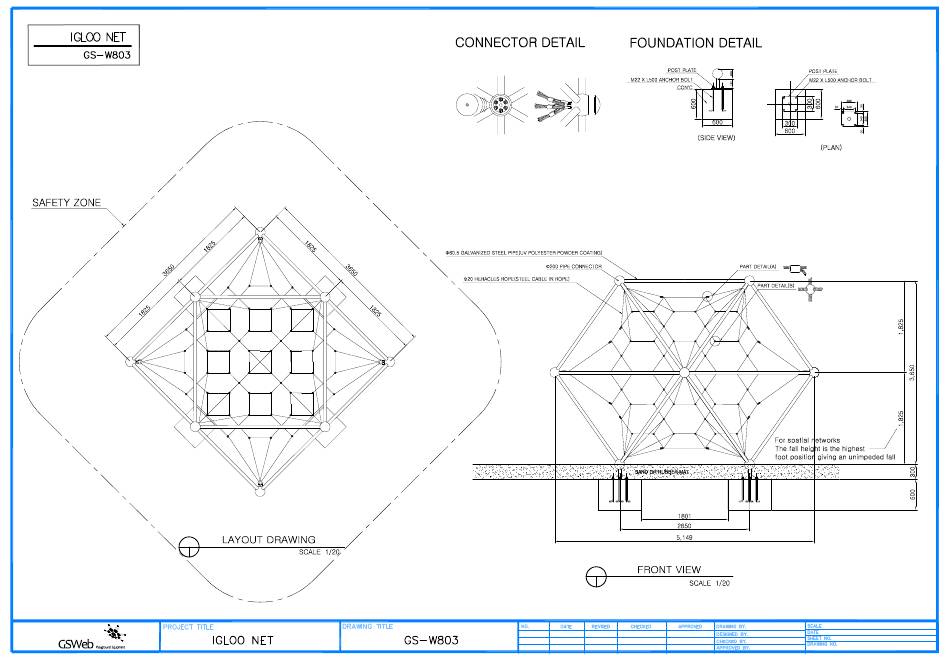

- Page 3 Ages: 5 to 12 years Capacity: 30 children Size: L: 11’12” / 3. 65m W:11’12” / 3. 65m H: 11’12” / 3. 65m Use zone: L: 25’ 1”/ 7. 65 m W: 25’1” / 7. 65 m Figure-1: Completed Net GSWeb Playground Equipment...
-
Page 4: Safety Area
(b) 44" / 1100mm from the edge of the structure where a free fall to the protective surface is possible. This distance in based on the centre of gravity height of the maximum user. Figure-2: Install and safety area GSWeb Playground Equipment... - Page 5 P1 = Depth below finished Grade ( 12 “ / 300 mm) moving while concrete is poured and sets. P2 = Depth of concrete footing (19-⅔" / 600 mm) P2 = Depth of concrete footing (19-⅔" / 600 mm) GSWeb Playground Equipment...
-
Page 6: Foundation Layout
Positioning Post plate on footing Total distance from front of block to front of [CF] 'L" anchor hole block is 2270mm Front edge of anchor plate must be installed 125mm from edge of concrete footing. Post Plate position GSWeb Playground Equipment... - Page 7 Assemble wooden support frames * 4 frames *Use ½" (min) plywood; not included in package NOTE: Use post plate as guide for exact measurements. (a) wood jig for Post plate Figure-6 : Wood support frame (b) wood support frame for concrete GSWeb Playground Equipment...
- Page 8 Allow 3-5 days for concrete to cure before proceeding to next step. *Concrete is to be wet concrete with minimum 25 MPA. [concrete footing work] Pour wet concrete in the wooden support frame Figure-7 : Concrete footing work GSWeb Playground Equipment...
- Page 9 IGLOO NET Remove Wood Support Frame GS-W803 Remove wood support frame from dry concrete blocks After concrete has cured enough, remove frame and replace soil in area around footing to subgrade level Figure-8 : Remove wood support frame GSWeb Playground Equipment...
- Page 10 MODEL NO. IGLOO NET Post Plate Assembly GS-W803 Figure-9 : concreted block - clean threads of "L" anchor bolts Post plate Figure-10 : Attach post plate to footing with flat washer, locking washer and nut. GSWeb Playground Equipment...
-
Page 11: Pipe Assembly
IGLOO NET Pipe Assembly-1 GS-W803 It is strongly recommended that 3-4 workers lift the net into place. Pipe Connector (2) M22 NUT, WASHER Pipe Connector (2) Pipe Connector (3) Figure-11 : Lower Pipe assembly Figure-12: Pipe-Pipe Connector assembly-1 GSWeb Playground Equipment... - Page 12 MODEL NO. IGLOO NET Pipe Assembly-2 GS-W803 Pipe Connector (1) M22 NUT, WASHER Pipe Connector (2) Figure-15 : Middle Pipe assembly-2 M22 NUT, WASHER Figure-14 : Figure-13 : Pipe-Pipe Middle Pipe assembly-3 Connector assembly-2 GSWeb Playground Equipment...
- Page 13 MODEL NO. IGLOO NET Attaching Connector Cap to Connector GS-W803 Pipe Connector 3/4" Shackle M22 Nut,Washer Shackle Connector Figure-17 : Middle Shackle Connector assembly. Figure-16 : Attaching Shackle Connector to Connector GSWeb Playground Equipment...
-
Page 14: Cable Assembly
After successfully preparing the net and post assembly, attach cable with 3/4" Shackle to Connector as shown in figure 24,25 STEP-2 Shackle Connector STEP-3 Figure-19 : Middle cable loop assembly Figure-18 : Cable Assembly STEP-1 STEP-2 STEP-3 GSWeb Playground Equipment... - Page 15 Attaching Connector Cap to Connector GS-W803 Shackle Connector Connector cap Pipe Connector (1) Pipe Connector (2) Figure-21 : Connector cap Assembly Pipe Connector (2) Connector cap Shackle Connector Pipe Connector (3) Figure-20 : Attach connector cap to connector GSWeb Playground Equipment...
-
Page 16: Maintenance Information
After Net structure tension is completed, the net will stretch slightly over the first four weeks of use. Following this initial period, the net needs to be fully re-tensioned by Turnbuckle after 1 year. Figure-22 : completed Net GSWeb Playground Equipment... - Page 17 GS-W803 6: connector cap 1: pipe connector (1) 7: 3/4" shackle 2: pipe connector (2) 8: shackle connector 3: pipe connector (3) 9: M22 nut, washer 4: steel pipe 10: post plate 5: net 11: L-anchor bolt,nut,washer GSWeb Playground Equipment...
- Page 18 IGLOO NET Maintenance Installation GS-W803 A weekly check of the activity net is recommended to ensure that no acts of vandalism have damaged the rope. Periodic checks on tension will assist in the durability of the product. GSWeb Playground Equipment...
-
Page 19: Maintenance
GSWeb Playground Equipment... - Page 20 Repairs during operation that could put the safety of maintenance personnel of the public at risk, should be avoided. F. Equipment alterations Alterations to parts of a piece of equipment or structure that could affect the essential safety of the equipment should only be carried out after consultation with the manufacturer or a compete person. GSWeb Playground Equipment...
