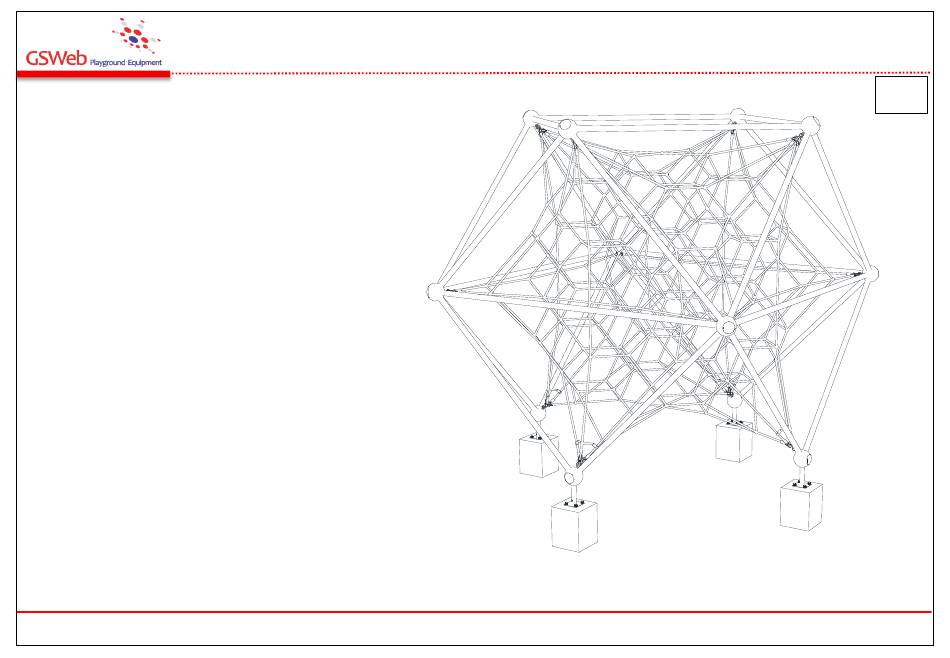

IGLOO NET
INSTALLATION MANUAL
Safety Checklist after first assembly
● Test intervals of Safety: 6 months
● Test Component and contents:
1. Removing the reticulated system:
- Check of removing condition each rope
- Screwing the turn buckle and conversion the turnbuckle
in anchors plate(see for this workstep turnbuckle assembly)
2. Abrasion condition of rope:
- Checking of all rope surface
- Strengthened of rope: Coating on the surface
3. Attachment condition of the anchors plate and turnbuckle
4. Screwing condition of all bolt
5. Galvanizing condition of the steel component:
- Protection of steel component from corrosion.
● Measure
In case of the appearance the defect detail is
repaired usually within 3 days after checking.
GSWeb Playground Equipment
65, Saengnim-daero 259beon-gil, Saengnim-Myeon
Gimhae-si, Gyeongsangnam-do, Republic of Korea
Tel) +82 (0)55 326 9025
E-mail) gswebinfo@chol.com
Fax) +82 (0)55 326 9026
Website) www.gsweb21.com
MODEL NO.
GS-W803
Rev_1
2016.03.
1
Advertisement
Table of Contents
Related Manuals for GSWeb Playground Equipment IGLOO NET
Summary of Contents for GSWeb Playground Equipment IGLOO NET
- Page 1 MODEL NO. IGLOO NET INSTALLATION MANUAL GS-W803 Rev_1 Safety Checklist after first assembly 2016.03. ● Test intervals of Safety: 6 months ● Test Component and contents: 1. Removing the reticulated system: - Check of removing condition each rope - Screwing the turn buckle and conversion the turnbuckle in anchors plate(see for this workstep turnbuckle assembly) 2.
- Page 2 MODEL NO. IGLOO NET INSTALLATION & MAINTENANCE INSTRUCTIONS GS-W803 Rev_1 Features 2016.03. The series is a steel-framed climbing structure made of steel- loaded Nylon cables and comes protected against UV. The GS-W803 features GS Web Technology which includes the highest steel content and the strongest connection materials in...
-
Page 3: Safety Area
MODEL NO. IGLOO NET Safety area and Fall Height zone GS-W803 Rev_1 Safety area 2016.03. The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in. - Page 4 MODEL NO. IGLOO NET Post Plate Assembly GS-W803 Rev_1 Foundation 2016.03. Please refer to GS-W803 drawing for exact installation dimensions 3,650 1,825 1,825 4 x 4 - 3/4" x L200 Set Anchor B/N Drill deep min150 FL=0 210 280 210 ▲...
- Page 5 MODEL NO. IGLOO NET Post Plate Assembly GS-W803 Rev_1 2016.03. No. 41 Set Anchor No. 21: Post Plate ▲ Attach post plate to footing with Set anchor 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com GSWeb Playground Equipment...
-
Page 6: Base Assembly
MODEL NO. IGLOO NET Base Assembly GS-W803 Rev_1 2016.03. It is strongly recommended that 3-4 workers lift the net into place. No.2 No. 5 Ball Connector 2 Pipe L No. 101 M22 Bolt Set ▲ Lower Pipe assembly No.2 Ball Connector 2 No. -
Page 7: Pipe Assembly
MODEL NO. IGLOO NET Pipe Assembly-2 GS-W803 Rev_1 No.1 2016.03. Ball Connector 1 No. 4 Pipe S No.2 Ball Connector 2 ▲ Middle Pipe assembly-2 ▲ Pipe- Ball connector assembly-2 ▲ Middle Pipe assembly-3 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com... -
Page 8: Cable Assembly
MODEL NO. IGLOO NET Cable Assembly GS-W803 Rev_1 Cable Assembly 2016.03. STEP-1 After successfully preparing the net and post assembly, attach cable with Eyelet Shackle to Connector as shown below No. 63 Eyelet Shackle Set STEP-2 STEP-3 No. 61 No. 103... - Page 9 MODEL NO. IGLOO NET Attaching Cap to Ball Connector GS-W803 Rev_1 2016.03. No. 62 No. 102 Ball Connector Cap RH Bolt set No. 61 Shackle connector ▲ Attaching Cap to Ball Connector 65, Saengnim-daero 259beon-gil, Saengnim-Myeon Tel) +82 (0)55 326 9025 E-mail) gswebinfo@chol.com...
-
Page 10: Maintenance Information
MODEL NO. IGLOO NET Tensioning & Maintenance information GS-W803 Rev_1 2016.03. Maintenance information Please tighten rope with Turnbuckle properly. If you strain the net too much, it may cause damage. It is also recommended that subsequent checks on tension should be carried out at monthly intervals and adjusted as required. - Page 11 MODEL NO. IGLOO NET PARTS LIST GS-W803 Rev_1 2016.03. No.1 No. 63 Ball Connector 1 Eyelet Shackle Set No. 62 No. A Ball Connector Cap No. 4 Pipe S No. 102 RH Bolt Set No. 103 Eye Bolt Set No. 61 Shackle connector No.2...
-
Page 12: Maintenance
MODEL NO. IGLOO NET Maintenance GS-W803 Rev_1 2016.03. A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground;... - Page 13 MODEL NO. IGLOO NET Maintenance GS-W803 Rev_1 C. Routine maintenance 2016.03. To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
