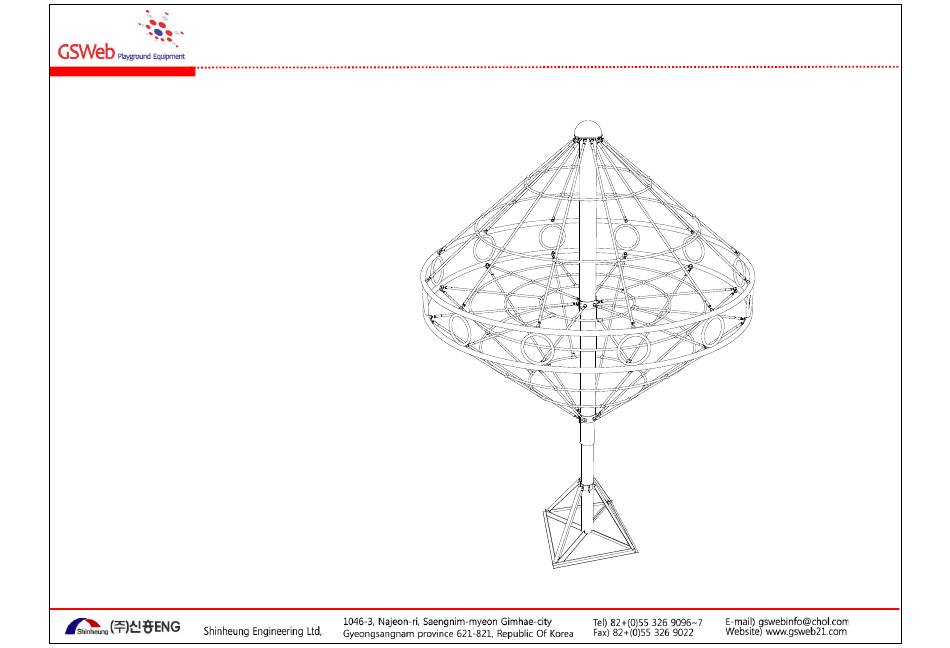

- Page 1 MODEL NO. SPACECRAFT INSTALLATION MANUAL GS-SC2300 SHINHEUNG ENG 1046-3, Najeon-ri, Saengnim-myeon, Gimhae-si Gyeongsangnam-do, 621-821, Republic Of Korea Tel) +82. 55. 326. 9096~7 Fax) +82. 55. 326. 9022 E-mail) gswebinfo@chol.com Web site) www.gsweb21.com...
- Page 2 INSTALLATION & MAINTENANCE INSTRUCTIONS GS-SC2300 Features The Spacecraft launches the merry-go-round into the future with a space-age look. Children love the flying-saucer design that helps their imaginations fly into orbit. Our special bearing system controls the rotation speed so that the children can safely enjoy the same exhilarating experience as a merry-go-round.
-
Page 3: Safety Area
MODEL NO. SPACECRAFT Safety area GS-SC2300 Safety area The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in. (1830mm) from all sides of the play structure. -
Page 4: Foundation Layout
MODEL NO. SPACECRAFT Foundation Layout GS-SC2300 Foundation 10620 Measure location of game and dig a hole 6960 5' x 5' x 4' 6" deep centered on the center of the game. 3300 3300 1525 Imperial/Metric conversion: 48" = 1220mm 54" = 1370mm 60"... -
Page 5: Overall Assembly
MODEL NO. SPACECRAFT Overall Assembly GS-SC2300 Overall Assembly UPPER NET Assemble the parts in the following order: 1. Attach the upper net to the post head 2. Attach the ring to the net 3. Attach the spider net to the ring and the collar 4. -
Page 6: Post Installation
MODEL NO. SPACECRAFT Post installation GS-SC2300 7. Screw the eye bolt to the top of the galvanised post NYLON STRING 8. Lift the assembly and place in the hole, inserting the post EYE BOLT into the pre-assembled base. 9. Level the post and fill with excavated ground 10. - Page 7 MODEL NO. SPACECRAFT Aluminium ring assembly GS-SC2300 Assemble the ring at the net with the nylon joint ( 1+1, 2+2, 3+3, 4+4 ) Align the opening in the net with the ring fasteners 12 fasteners on the top Figure-8 M8 X L55 RING FIX BOLT...
- Page 8 MODEL NO. SPACECRAFT Spider Net & Upper net Assembly GS-SC2300 M10 NUT, WASHER COLLAR M10 X L35 HSCS BOLT UPPER NET SPIDER NET Figure-10 Figure-11 BALL JOINT BALL JOINT HALF ALUMINIUM RING Attach the ring to the upper net Figure-9...
- Page 9 MODEL NO. SPACECRAFT Lower net assembly GS-SC2300 LOWER NET ALUMINIUM RING Figure-12 M10 X L35 HSCS BOLT, NUT,WASHER...
- Page 10 MODEL NO. SPACECRAFT Base assembly GS-SC2300 M12 X L35 BOLT BASE HALF COLLAR M12 NUT, WASHER ANGLE BRACE M12 NUT, WASHER M12 X L35 BOLT BASE PLATE Figure-13...
- Page 11 MODEL NO. SPACECRAFT Cap assembly GS-SC2300 POST CAP M10 X L25 HSCS BOLT BALL JOINT Remove the eye bolt Install the cap with HSCS bolt...
-
Page 12: Parts List
MODEL NO. SPACECRAFT Parts list GS-SC2300 12,13 1: galvanised post 8: nylon joint (Φ50) 2: inox post 9: half collar 3: post cap 10: eye bolt 4: upper net 11: M10 X L25 HSCS bolt 5: spider net 12: M10 X L35 HSCS bolt... - Page 13 MODEL NO. SPACECRAFT Parts list GS-SC2300 14: M8 X L25 fix bolt 18: base half collar 15: M8 X L33 fix nut,washer 19: M12 X L35 bolt 16: base 20: M12 nut,washer 17: angle brace...
-
Page 14: Maintenance
MODEL NO. SPACECRAFT Maintenance GS-SC2300 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground; d) address of playground; and e) other relevant local information, if applicable. - Page 15 MODEL NO. SPACECRAFT Maintenance GS-SC2300 C. Routine maintenance To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
