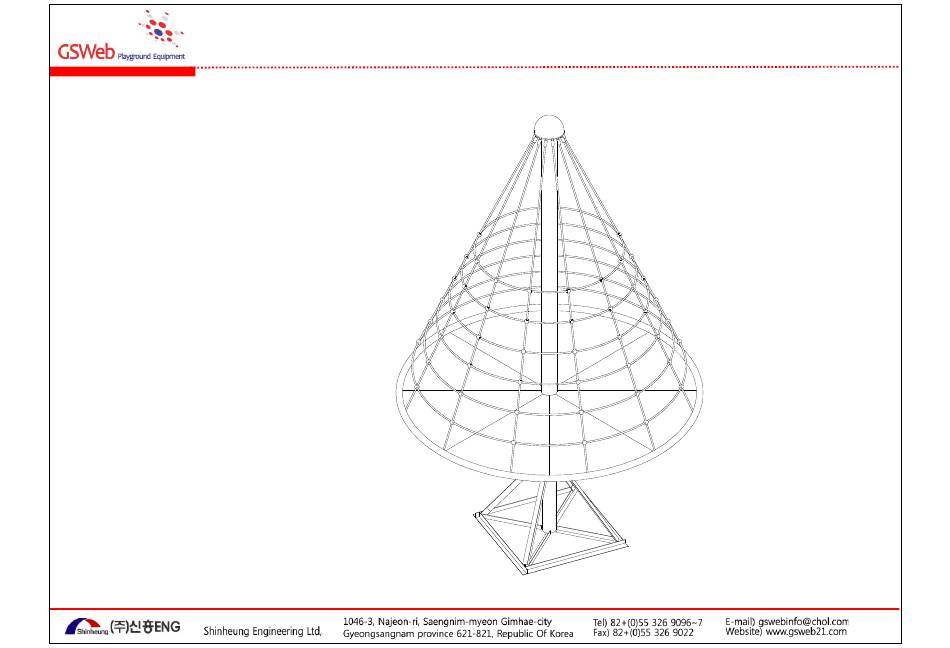

- Page 1 MODEL NO. SPACECRAFT INSTALLATION MANUAL GS-SC2102 SHINHEUNG ENG 1046-3, Najeon-ri, Saengnim-myeon, Gimhae-si Gyeongsangnam-do, 621-821, Republic Of Korea Tel) +82. 55. 326. 9096~7 Fax) +82. 55. 326. 9022 E-mail) gswebinfo@chol.com Web site) www.gsweb21.com...
- Page 2 These games help bring movement, balance, exercise and fun back into the playground. Ages: 5 to 12 years Capacity: 25 children Size: D: 10‘ 10” / 3.30m H: 10' 11”/ 3.32m Use zone: D: 23' 11” / 7.30m Figure-1: Completed Mid Spacecraft...
-
Page 3: Safety Area
MODEL NO. SPACECRAFT Safety area GS-SC2102 Figure-2: Install Safety area The requirements for space and safety clearances are taken from BS-EN 1176-1 / ASTM-F1487 / CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in. (1830mm) from all sides of the play structure. -
Page 4: Foundation Layout
MODEL NO. SPACECRAFT Foundation Layout GS-SC2102 10620 Foundation 6960 Measure location of game and dig a hole 5' x 5' x 4' 6" deep centered on the center of the game. 3300 3300 1525 Imperial/Metric conversion: 48" = 1220mm 54" = 1370mm... -
Page 5: Overall Assembly
MODEL NO. SPACECRAFT Overall Assembly GS-SC2102 Overall Assembly Assemble the parts in the following order: 1. Place nylon bearing on galvanized post 2. Place stainless steel post over galvanized post 3. Attach the net to the post head 4. Assemble base and angle braces ... - Page 6 MODEL NO. SPACECRAFT Overall Assembly GS-SC2102 5. Screw the eye bolt to the top of the galvanized post 6. Lift the assembly and place the post into the assembled base. Use a backhoe with nylon strap or chain with safety hooks NYLON STRING 7.
- Page 7 MODEL NO. SPACECRAFT Aluminium ring assembly GS-SC2102 9. Assemble the lower ring and deck, attach to net. Make sure to align the opening in the net with the opening in the fastners. 10. Attach deck to collar on the post 11.
- Page 8 MODEL NO. SPACECRAFT Deck Assembly GS-SC2102 ALUMINIUM RING Figure-10 PVC COATED FLOOR STEP-2 M10 X L90 HSCS BOLT M12 X L30 BOLT M12 NYLON LOCK NUT M10 NYLON LOCK NUT, WASHER M12 X L35 BOLT HALF S.S COLLAR M12 NUT, WASHER...
- Page 9 MODEL NO. SPACECRAFT Net assembly GS-SC2102 POST CAP Figure-12 BALL JOINT M10 X L25 HSCS BOLT BALL JOINT Figure-11 Figure-12 Assemble cable in the attach with ball joint Remove the eye bolt Install the cap with HSCS bolt...
- Page 10 MODEL NO. SPACECRAFT Base assembly GS-SC2102 M12 X L35 BOLT BASE HALF COLLAR M12 NUT, WASHER ANGLE BRACE M12 NUT, WASHER M12 X L35 BOLT BASE PLATE...
-
Page 11: Parts List
MODEL NO. SPACECRAFT Parts list GS-SC2102 1: galvanised post 7: nylon joint 2: inox post 8: half collar 3: post cap 9: eye bolt 4: net 10: M10 X L25 HSCS bolt 5: aluminium ring 11: M10 X L90 HSCS bolt... - Page 12 MODEL NO. SPACECRAFT Parts list GS-SC2102 18: base 13: M12 X L30 bolt 19: angle brace 14: M12 X L35 bolt 20: base half collar 15: M12 nut, washer 21: M12 X L35 bolt 16: M8 X L55 fix bolt...
-
Page 13: Maintenance
MODEL NO. SPACECRAFT Maintenance GS-SC2102 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground; d) address of playground; and e) other relevant local information, if applicable. - Page 14 MODEL NO. SPACECRAFT Maintenance GS-SC2102 C. Routine maintenance To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
