Summary of Contents for GSWeb Playground Equipment GS-W6002

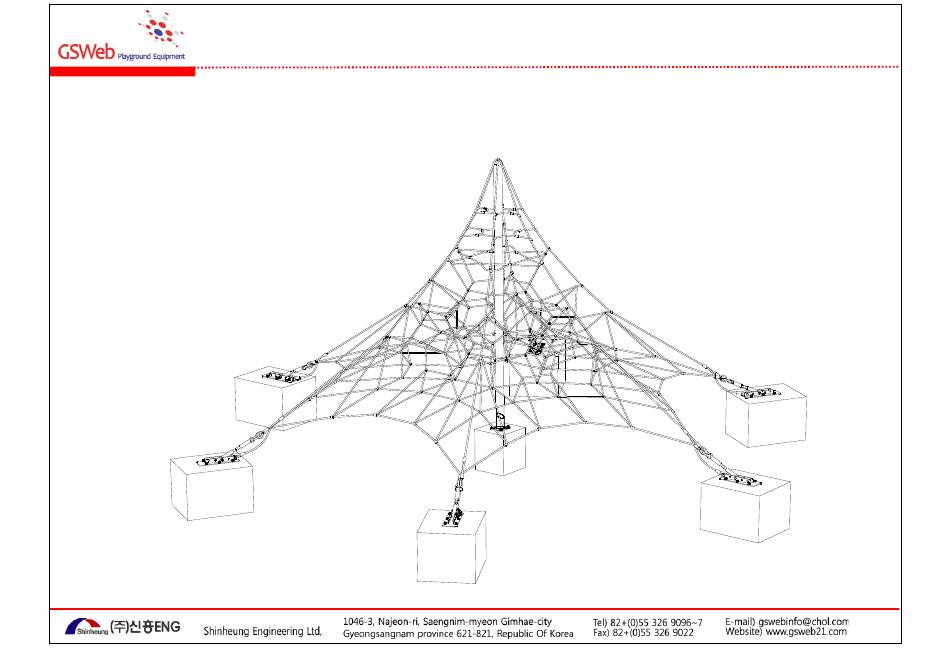

- Page 1 MODEL NO. HEXAGON NET CLIMBER INSTALLATION MANUAL GS-W6002 SHINHEUNG ENG 1046-3, Najeon-ri, Saengnim-myeon, Gimhae-si Gyeongsangnam-do, 621-821, Republic Of Korea Tel) +82. 55. 326. 9096~7 Fax) +82. 55. 326. 9022 E-mail) gswebinfo@chol.com Web site) www.gsweb21.com...
- Page 2 MODEL NO. HEXAGON NET CLIMBER INSTALLATION & MAINTENANCE INSTRUCTIONS GS-W6002 Features Ages: 6 to 12 years Capacity: 126 children The series is a six-sided climbing structure made of Size: L: 45' 11" / 14.00m steel -loaded Nylon cables and comes protected against UV.
-
Page 3: Safety Area
MODEL NO. HEXAGON NET CLIMBER Safety area and Fall Height zone GS-W6002 Safety area The requirements for space and safety clearances are taken from BS-EN 1176-1/ ASTM-F1487/ CSA Z614 The use zone for stationary play equipment shall extend no less than 72 in.(1830mm) from all sides of the play structure. - Page 4 MODEL NO. HEXAGON NET CLIMBER Foundation Information GS-W6002 Foundation Please refer to GS-W6002 drawing for installation dimension Pole Figure-4: Foundation section view Level Line Finished ground Finished Grade surface layer Figure-3: Excavate enough materials to allow for proper depth of concrete footings...
-
Page 5: Foundation Layout
MODEL NO. HEXAGON NET CLIMBER Foundation Layout GS-W6002 Figure -5: Concrete footing and Anchor plate layout 4" 4" Positioning Anchor plate on footing Metric/Imperial conversion: [CF] 'L" anchor hole 7000mm = 22' 11-5/8" Front edge of anchor plate must be installed 4"... - Page 6 MODEL NO. HEXAGON NET CLIMBER Concrete Foundation GS-W6002 Assemble wooden support frames * 4 frames (1000mm L x 900mm W x 700mm H) 7-⅞" 7-⅞" 7-⅞" 7-⅞" 1 frame (700mm L x 700mm W x 800mm H) *Use ½" (min) plywood; not included in package 5-⅞"...
-
Page 7: Concrete Footings
MODEL NO. HEXAGON NET CLIMBER Concrete Footings GS-W6002 [Concrete] Pour concrete* into wooden support frame until flush to top edge. Allow 3-5 days for concrete to cure before proceeding to next step. [concrete footing work] *Concrete is to be wet concrete with minimum 25 MPa / 3500 PSI. - Page 8 MODEL NO. HEXAGON NET CLIMBER Remove the wood support frame GS-W6002 Remove wood support frame from dry concrete blocks After concrete has cured enough, remove frame and replace soil in area around footing to subgrade level Figure-8: remove wood support frame...
- Page 9 MODEL NO. HEXAGON NET CLIMBER Anchor Plate Assembly GS-W6002 (a) Anchor Plate Figure-9: concreted block - clean threads of "L" anchor bolts (b)Main post plate (b) Main post plate (a) Anchor Plate Figure-10: Attach Anchor plate to footing with flat washer, locking washer and nut.
-
Page 10: Post Assembly
MODEL NO. HEXAGON NET CLIMBER Post Assembly GS-W6002 Post Assembly Insert Post following nylon string STEP-2 STEP-1 Nylon string Figure-12: Insert Post Figure-11: Find Nylon String following Nylon string... - Page 11 MODEL NO. HEXAGON NET CLIMBER Attach Cap to Post GS-W6002 Place Cap on Post Thread the mast through the net’s center (per diagrams below, or following factory-installed guide string). Press the cap (already attached to the top of the net) into the mast’s top end.
- Page 12 MODEL NO. HEXAGON NET CLIMBER Safety Rope Fixing GS-W6002 Safety Cable Attaching Attach safety cable to anchor plates (A) (B) (C) (D) (E) Figure-17: Safety cable Assembly as shown in Figure 16. After successfully preparing the net and mast assembly, attach safety cable with M22 X L110...
- Page 13 MODEL NO. HEXAGON NET CLIMBER Placing Post in Position GS-W6002 It is strongly ecommended that a machine be used to lift the net into place. [ Working Process ] Figure-18: Centre Post Figure-19: Safety cables attached...
- Page 14 MODEL NO. HEXAGON NET CLIMBER Stand Net up GS-W6002 After standing up the Net, Attach remaining safety cables and Turnbuckles Figure-21: Loosen Turnbuckle: all the way (about 100mm), leaving only 4 or 5 threads attached Figure-20: Stand Net up...
- Page 15 MODEL NO. HEXAGON NET CLIMBER Attaching Turnbuckle to Anchor Plates GS-W6002 Anchor plate + Turnbuckle Figure-23: Turnbuckle assembly M22 X L110 H/T BOLT Figure-22: Tightening Turnbuckles NOTE: Make sure post is level before tightening and remains level during process. Use turnbuckles to straighten post to level. Then turn each turnbuckle evenly until net is tight.
-
Page 16: Maintenance Information
MODEL NO. HEXAGON NET CLIMBER Tensioning & Maintenance information GS-W6002 Maintenance information Please tighten rope with Turnbuckle properly. If you strain the net too much, it may cause damage. It is also recommended that subsequent checks on tension should be carried out at monthly intervals and adjusted as required. - Page 17 MODEL NO. HEXAGON NET CLIMBER PARTS LIST GS-W6002 7: H/T bolt,nut washer 1: main post 8: U-bolt 2: multi compound rope 9: main post plate 3: post cap 10: L-anchor 4: turn buckle bolt,nut,washer 5: anchor shackle 11: anchor plate...
-
Page 18: Maintenance
MODEL NO. HEXAGON NET CLIMBER Maintenance GS-W6002 A weekly check of the activity net is recommended to ensure that no acts of vandalism have damaged the rope. Periodic checks on tension will assist in the durability of the product. - Page 19 MODEL NO. HEXAGON NET CLIMBER Maintenance GS-W6002 A. General safety measures On the playground there should be a sign(pictogram) giving the following information: a) general emergency telephone number; b) telephone number to contact maintenance personnel; c) name of the playground;...
- Page 20 MODEL NO. HEXAGON NET CLIMBER Maintenance GS-W6002 C. Routine maintenance To reduce accidents, the owner or operator should ensure that an appropriate routine maintenance schedule is established, implemented and maintained. This should take into account local conditions and the manufacturer's instructions that can affect the necessary inspection frequency.
